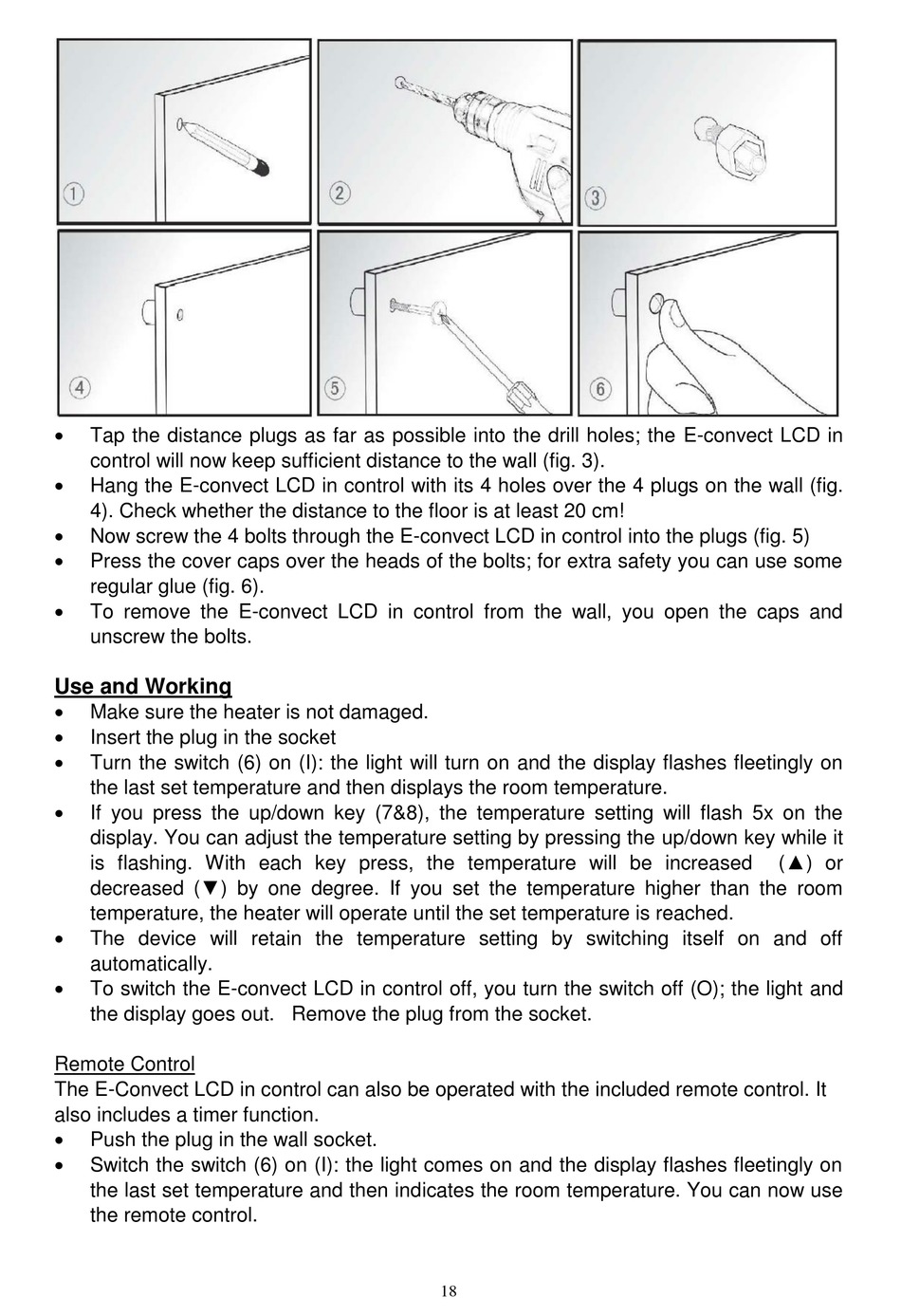

Tap the distance plugs as far as possible into the drill holes; the E-convect LCD in
control will now keep sufficient distance to the wall (fig. 3).

Hang the E-convect LCD in control with its 4 holes over the 4 plugs on the wall (fig.
4). Check whether the distance to the floor is at least 20 cm!

Now screw the 4 bolts through the E-convect LCD in control into the plugs (fig. 5)

Press the cover caps over the heads of the bolts; for extra safety you can use some
regular glue (fig. 6).

To remove the E-convect LCD in control from the wall, you open the caps and
unscrew the bolts.
Use and Working

Make sure the heater is not damaged.

Insert the plug in the socket

Turn the switch (6) on (I): the light will turn on and the display flashes fleetingly on
the last set temperature and then displays the room temperature.

If you press the up/down key (7&8), the temperature setting will flash 5x on the
display. You can adjust the temperature setting by pressing the up/down key while it
is flashing. With each key press, the temperature will be increased
decreased (▼) by one degree. If you set the temperature higher than the room
temperature, the heater will operate until the set temperature is reached.

The device will retain the temperature setting by switching itself on and off
automatically.

To switch the E-convect LCD in control off, you turn the switch off (O); the light and
the display goes out. Remove the plug from the socket.
Remote Control
The E-Convect LCD in control can also be operated with the included remote control. It
also includes a timer function.

Push the plug in the wall socket.

Switch the switch (6) on (I): the light comes on and the display flashes fleetingly on
the last set temperature and then indicates the room temperature. You can now use
the remote control.
18
(▲) or
