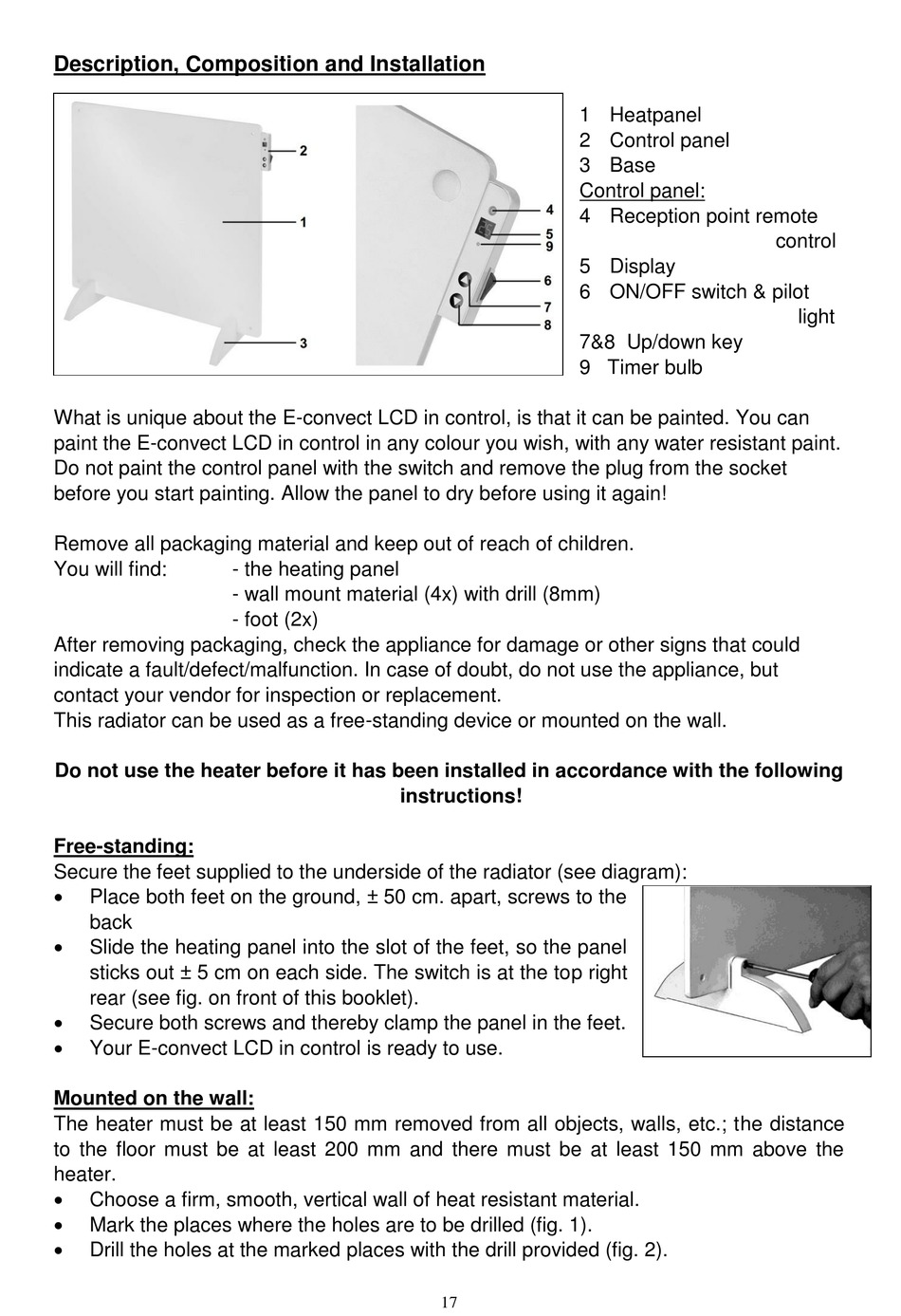

Description, Composition and Installation
What is unique about the E-convect LCD in control, is that it can be painted. You can
paint the E-convect LCD in control in any colour you wish, with any water resistant paint.
Do not paint the control panel with the switch and remove the plug from the socket
before you start painting. Allow the panel to dry before using it again!
Remove all packaging material and keep out of reach of children.
You will find:
After removing packaging, check the appliance for damage or other signs that could
indicate a fault/defect/malfunction. In case of doubt, do not use the appliance, but
contact your vendor for inspection or replacement.
This radiator can be used as a free-standing device or mounted on the wall.
Do not use the heater before it has been installed in accordance with the following
Free-standing:
Secure the feet supplied to the underside of the radiator (see diagram):

Place both feet on the ground, ± 50 cm. apart, screws to the
back

Slide the heating panel into the slot of the feet, so the panel
sticks out ± 5 cm on each side. The switch is at the top right
rear (see fig. on front of this booklet).

Secure both screws and thereby clamp the panel in the feet.

Your E-convect LCD in control is ready to use.
Mounted on the wall:
The heater must be at least 150 mm removed from all objects, walls, etc.; the distance
to the floor must be at least 200 mm and there must be at least 150 mm above the
heater.

Choose a firm, smooth, vertical wall of heat resistant material.

Mark the places where the holes are to be drilled (fig. 1).

Drill the holes at the marked places with the drill provided (fig. 2).
- the heating panel
- wall mount material (4x) with drill (8mm)
- foot (2x)
instructions!
1 Heatpanel
2 Control panel
3 Base
Control panel:
4 Reception point remote
5 Display
6 ON/OFF switch & pilot
7&8 Up/down key
9 Timer bulb
17
control
light
