Location Of The Buttons; Control Panel; Display Window - JVC KS-FX922R Bedienungsanleitung

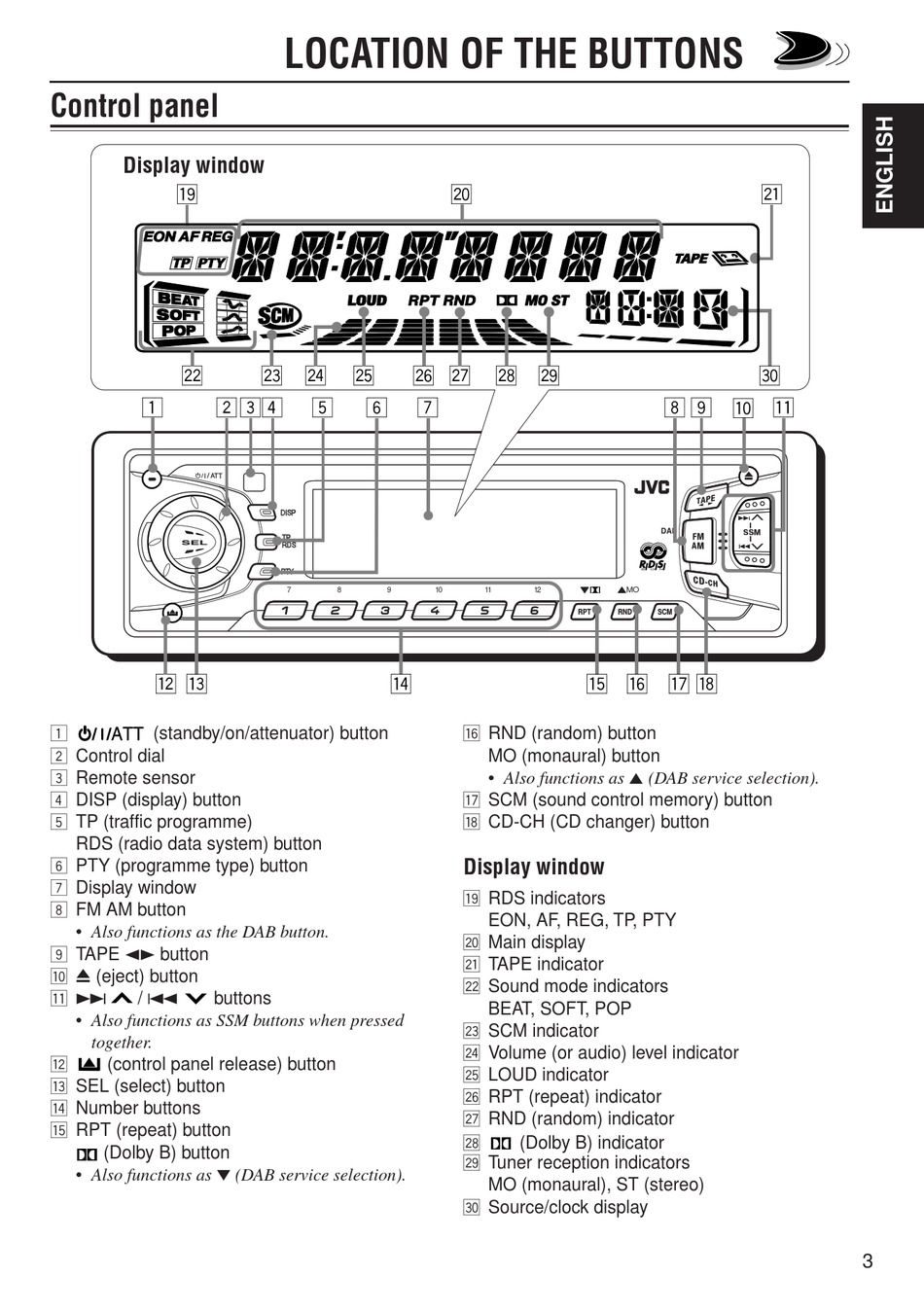

Control panel

Display window

o
s
1 2
w e
1
(standby/on/attenuator) button
2 Control dial
3 Remote sensor
4 DISP (display) button
5 TP (traffic programme)
RDS (radio data system) button
6 PTY (programme type) button
7 Display window
8 FM AM button
• Also functions as the DAB button.
9 TAPE 23 button
p 0 (eject) button
q ¢ / 4
buttons
• Also functions as SSM buttons when pressed
together.
w
(control panel release) button
e SEL (select) button
r Number buttons
t RPT (repeat) button
(Dolby B) button
• Also functions as ∞ (DAB service selection).

LOCATION OF THE BUTTONS

d f g h
3 4 5 6
DISP
TP
RDS
PTY
7 8 9
r
;
j k l
7
10 11 12
t
y RND (random) button
MO (monaural) button
• Also functions as 5 (DAB service selection).
u SCM (sound control memory) button
i CD-CH (CD changer) button
Display window
o RDS indicators
EON, AF, REG, TP, PTY
; Main display
a TAPE indicator
s Sound mode indicators
BEAT, SOFT, POP
d SCM indicator
f Volume (or audio) level indicator
g LOUD indicator
h RPT (repeat) indicator
j RND (random) indicator
k
(Dolby B) indicator
l Tuner reception indicators
MO (monaural), ST (stereo)
/ Source/clock display
a
/
8 9 p q
DAB
MO
y u i
3
