Pkm KG 218.4 A++ Bedienungsanleitung Seite 29

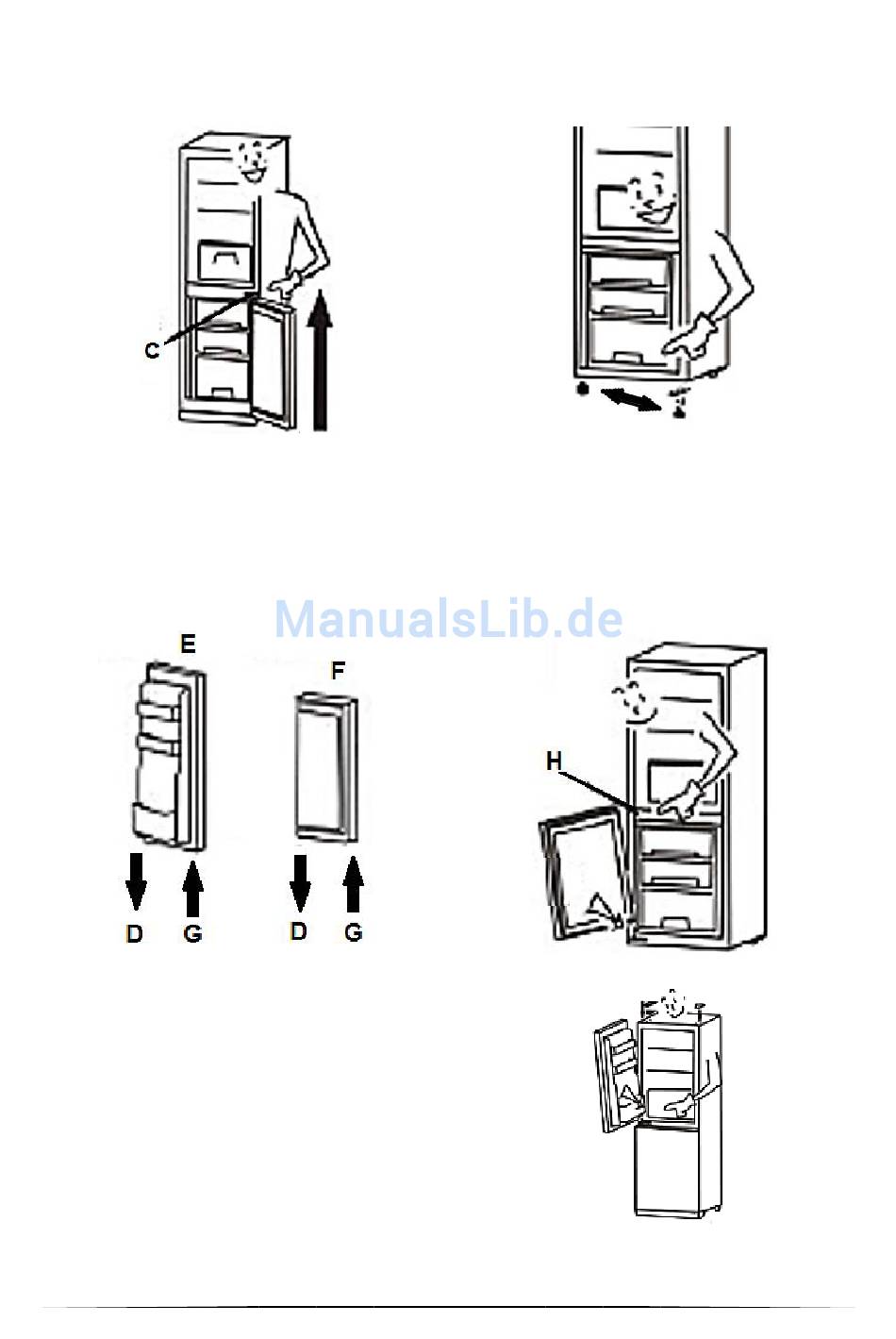

3. Unscrew the middle hinge (C).
Remove the door.
5. Remove the hinge pin (D) from the
bottom of the fridge- (E) and
freezer-door (F). Install the supplied
replacement hinge pin on the
opposite side (G).
7. Place the fridge-door on the middle hinge; the
hinge pin must be inserted in the hole on the
bottom of the fridge-door. Close the door, then
install the top hinge on the opposite side. The top
hinge pin must be inserted in the hole on the top
of the fridge-door. Install the hinge cover.
4. Install the lower hinge and the
adjustable foot on the opposite side..
6. Place the freezer-door on the
bottom hinge; the hinge pin must be
inserted in the hole on the bottom
of the freezer-door. Then install the
middle hinge (H) on the opposite
side.
29
