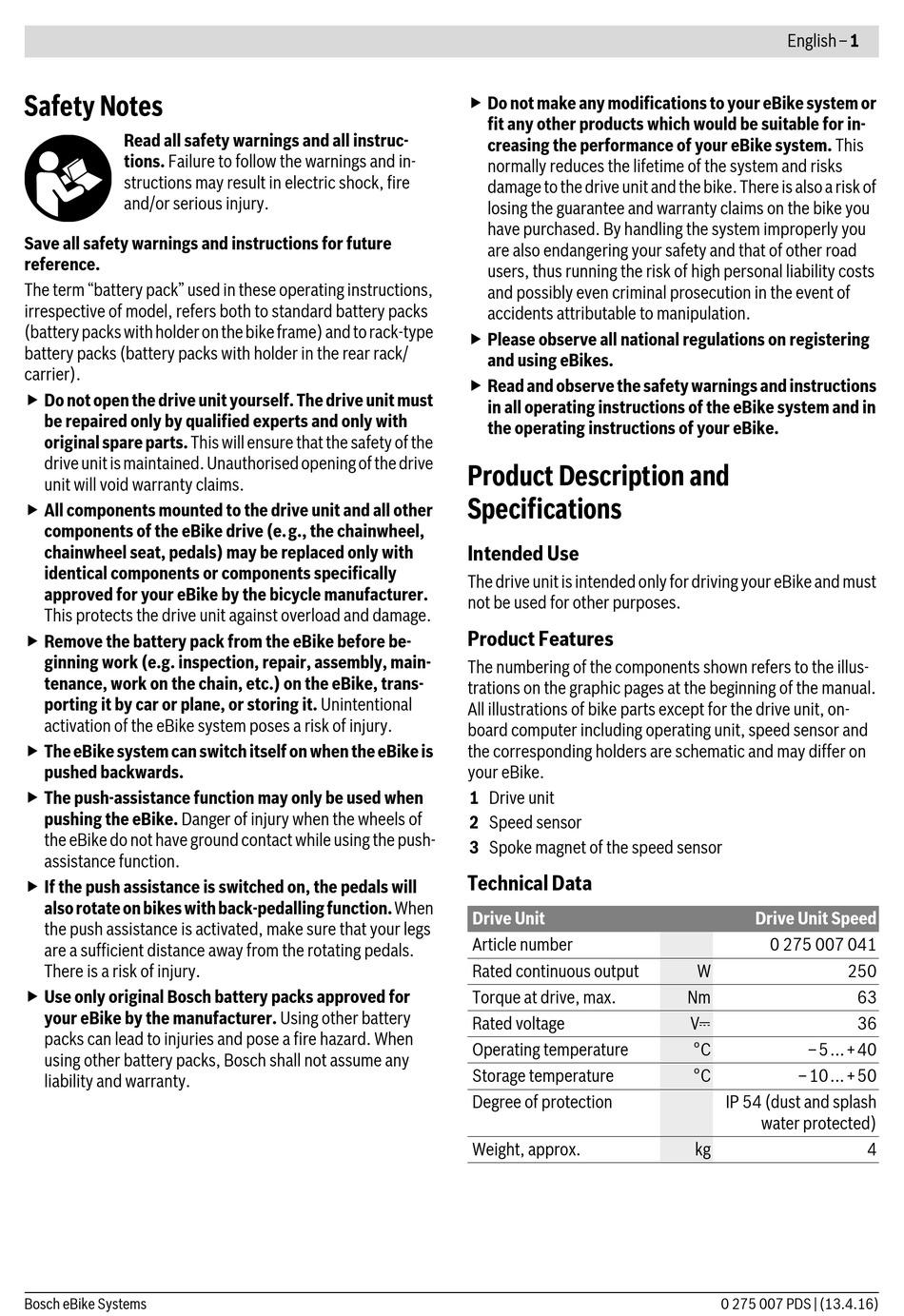

Safety Notes; Product Description And Specifications - Bosch performance Originalbetriebsanleitung

Safety Notes

Read all safety warnings and all instruc-
tions. Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Save all safety warnings and instructions for future
reference.
The term "battery pack" used in these operating instructions,
irrespective of model, refers both to standard battery packs
(battery packs with holder on the bike frame) and to rack-type
battery packs (battery packs with holder in the rear rack/
carrier).
 Do not open the drive unit yourself. The drive unit must
be repaired only by qualified experts and only with
original spare parts. This will ensure that the safety of the
drive unit is maintained. Unauthorised opening of the drive
unit will void warranty claims.
 All components mounted to the drive unit and all other
components of the eBike drive (e.g., the chainwheel,
chainwheel seat, pedals) may be replaced only with
identical components or components specifically
approved for your eBike by the bicycle manufacturer.
This protects the drive unit against overload and damage.
 Remove the battery pack from the eBike before be-
ginning work (e.g. inspection, repair, assembly, main-
tenance, work on the chain, etc.) on the eBike, trans-
porting it by car or plane, or storing it. Unintentional
activation of the eBike system poses a risk of injury.
 The eBike system can switch itself on when the eBike is
pushed backwards.
 The push-assistance function may only be used when
pushing the eBike. Danger of injury when the wheels of
the eBike do not have ground contact while using the push-
assistance function.
 If the push assistance is switched on, the pedals will
also rotate on bikes with back-pedalling function. When
the push assistance is activated, make sure that your legs
are a sufficient distance away from the rotating pedals.
There is a risk of injury.
 Use only original Bosch battery packs approved for
your eBike by the manufacturer. Using other battery
packs can lead to injuries and pose a fire hazard. When
using other battery packs, Bosch shall not assume any
liability and warranty.
Bosch eBike Systems
 Do not make any modifications to your eBike system or
fit any other products which would be suitable for in-
creasing the performance of your eBike system. This
normally reduces the lifetime of the system and risks
damage to the drive unit and the bike. There is also a risk of
losing the guarantee and warranty claims on the bike you
have purchased. By handling the system improperly you
are also endangering your safety and that of other road
users, thus running the risk of high personal liability costs
and possibly even criminal prosecution in the event of
accidents attributable to manipulation.
 Please observe all national regulations on registering
and using eBikes.
 Read and observe the safety warnings and instructions
in all operating instructions of the eBike system and in
the operating instructions of your eBike.
Product Description and
Specifications
Intended Use
The drive unit is intended only for driving your eBike and must
not be used for other purposes.
Product Features
The numbering of the components shown refers to the illus-
trations on the graphic pages at the beginning of the manual.
All illustrations of bike parts except for the drive unit, on-
board computer including operating unit, speed sensor and
the corresponding holders are schematic and may differ on
your eBike.
1 Drive unit
2 Speed sensor
3 Spoke magnet of the speed sensor
Technical Data
Drive Unit
Article number
Rated continuous output
Torque at drive, max.
Rated voltage
Operating temperature
Storage temperature
Degree of protection
Weight, approx.
English–1
Drive Unit Speed
0 275 007 041
W 250
Nm 63
V 36
°C –5...+40
°C –10...+50
IP 54 (dust and splash
water protected)
kg
0 275 007 PDS | (13.4.16)
