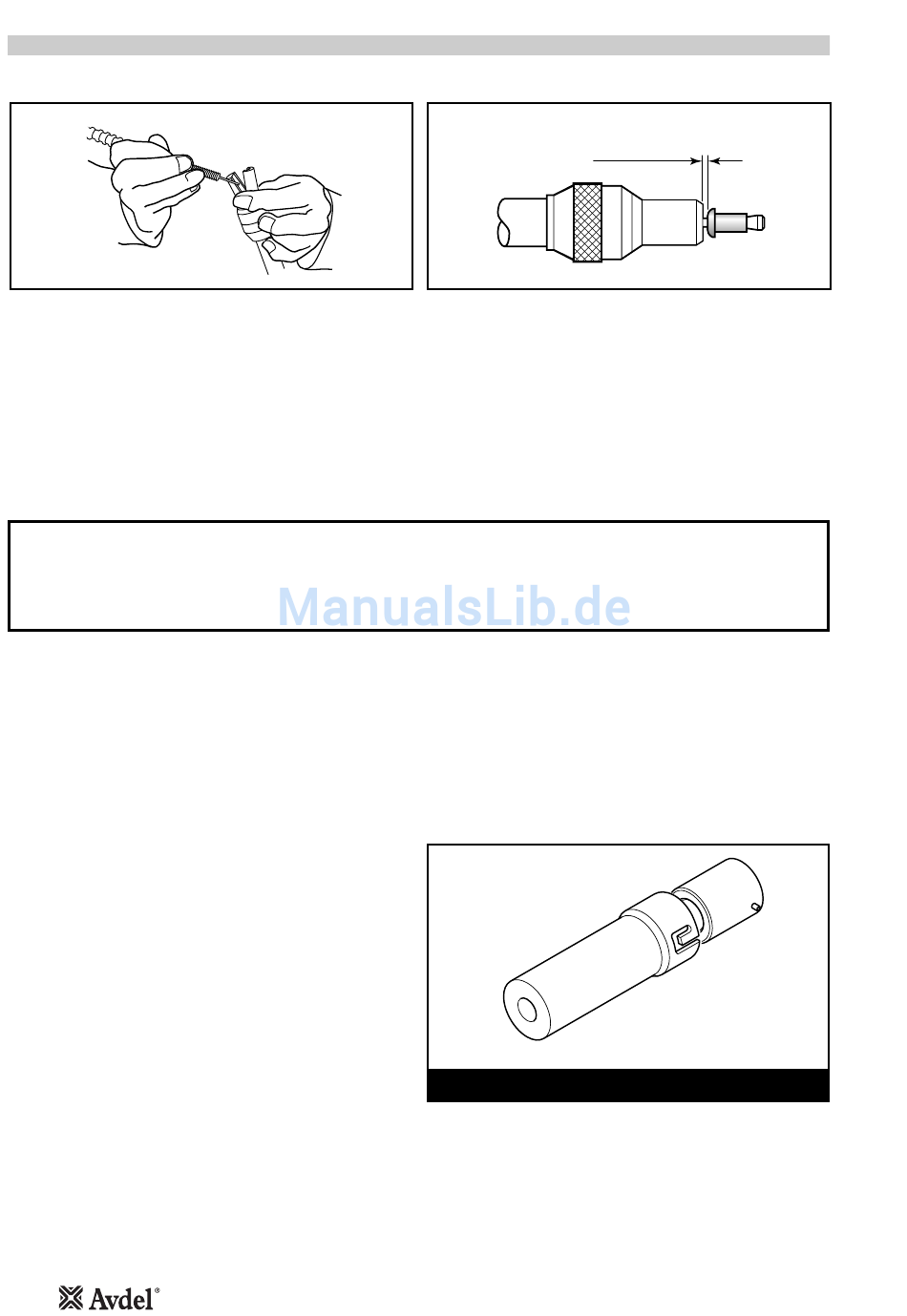

R E L O A D I N G T H E T O O L
■
Open tail jaws 9 of tool.
■
Open the nose jaws and pull the empty mandrel and mandrel follower spring out of the tool.
■
Reload the tool by following the above instructions, starting at stage ■.
O P E R A T I N G P R O C E D U R E
It is essential to check that the number of bush stops, the cursor orientation and the nose equipment are correct before
07271 AND 07274 MODELS
■
Connect the air supply.
■
Push the fastener which protrudes from the nose jaws, fully into the application hole ensuring that the tool is held square.
■
Operate the trigger WITHOUT releasing; the fastener is pushed over the mandrel head and formed into the application.
■
Remove the tool.
■
Release the trigger. The next fastener will automatically be presented through the nose jaws, ready for placing.
A C C E S S O R I E S
This accessory is designed to be fitted to the 07271 and 07274
tools only when placing Avserts. It enables the application to be
held square to the Avsert during the placing sequence. Fit as
follows:
■
Remove the nose jaws, if fitted.
■
Slide the inner collar over the barrel until the barrel sits on the
shoulder inside the collar.
■
Screw the nose jaws onto the barrel to retain the inner collar.
■
Slide the outer body of the attachment over the inner collar and
rotate to ensure that the pin on the inner collar locates in the
bayonet slot on the outer body.
10
I M P O R T A N T
attempting to operate the tool.
Squaring-up Attachment - part nº 07271-08500
1.5mm - 3mm
1 /16 1 /8
( " - ")
