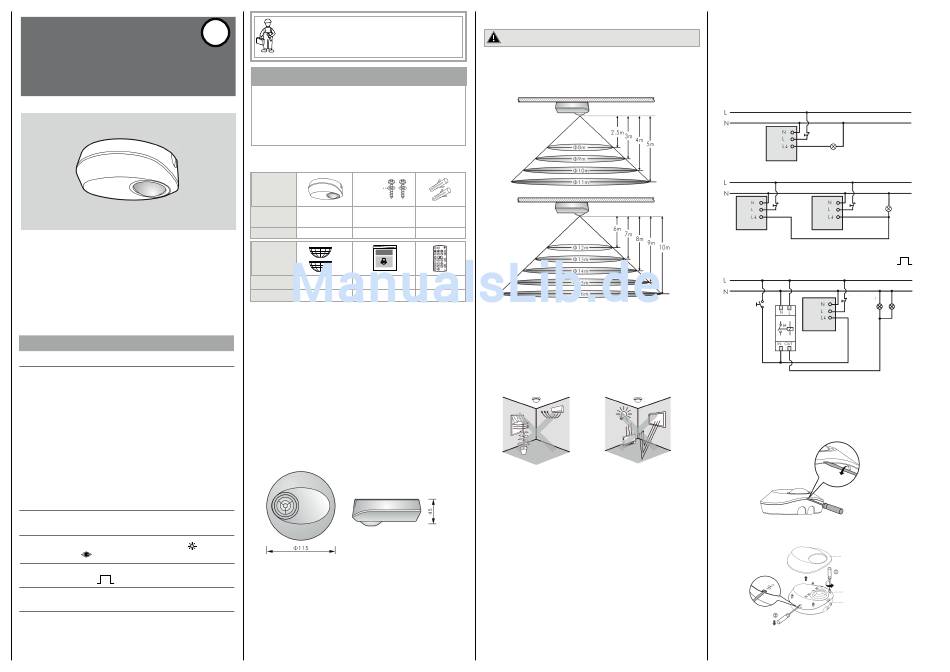

McGuard PM-AP HR
Presence sensor
(wallmounted) for hight
ceilings
INSTALLATION MANUAL

TECHNICAL SPECIFICATIONS

Rated Voltage: 220V-240V~50 / 60Hz
Load Load for Lighting:
Incandescent Lamp : Max. 2000W
AC Halogen Lamp : Max. 1000W
LV Halogen Lamp : Max. 1000VA / 600W
(traditional)
Max. 1000VA / 900W
(electronic)
Fluorescent Lamp : Max. 1000VA / 600W
(uncompensated)
Max. 900VA / 100μF
25 x (1 x 18W); 12 x (2 x 18W);
15 x (1 x 36W); 7 x (2 x 36W);
10 x (1 x 58W); 5 x (2 x 58W)
LED Lamp : Max. 400W
Energie saving Lamp : Max. 600VA / 400W
(inkl. CFL and PL Lamp)
Detection Range: 360° circular, up to Ø16m at height of 10m
Lux Adjustment Adjustable from approx. 10Lux bis (
" " (learning range: 10Lux - 2000Lux)
Auto Off Zeit Adjustable from approx. 5Sek bis 30Min, and
Einstellungen test & 1s
Operating- 0C° bis +45C°
Temperature
Environmental Protection: IP54
Installation and assembly of electrical equipment
GB
must be carried out by qualified electricians.
Contact a qualified electrician in the event of fault
or break down.
ACHTUNG
- A circuit breaker (250VAC, 10A) type C according to EN60898-1 of load I shall be
installed in the fixed wiring for protection.
- Do not mount on conductive surface.
- Do not open the enclosure frequently.
- Turn off power when change the light sources.
- High in-rush current would be caused when bulbs of certain brands burned which
might damage the unit permanently.
1

PACKAGE CONTENTS

Rubber
Pattern
washer
Wood screws
Item
Detector
Ø4 x 25.4mm
+Rubber washers
Quantity
1
Pattern
Manual
Item Lens shield
Quantity 2 1
2
FEATURES
2.1 Features
- Powerful relay and advanced technology are used to enable controlling all
kinds of lighting loads.
- IR remote control is available for easy and quick setting.
- Manually switch on the load by wire connected to an external N.C. type
push button switch when the ambient light level exceeds the pre-set lux
value.
- Manual override for lighting on is enabled by using IR remote control to
control.
- The ambient Lux value can be learned as the threshold for switching
on / off the loads by IR and VR if the provided Lux values do not match
user's requirement .
- A red LED is built-in as an indicator for test triggering and IR setting.
- Quick plug-in terminal block is used for easy and quick wiring.
2.2 Dimension:
Ø115mm x 45mm
∞
) and
FIG. 1
3

INSTALLATION AND WIRING

Please disconnect power completely and read the entire
instruction manual carefully before installation.
3.1 Select a proper location
3.1.1 It is recommended to install the detector at the height of 10m, and the
detection range can reach up to the diameter of 16m. (See FIG.2).
Anchor
2 2
IR-FB optional
3.1.2 Helpful tips for installation
Since the detector is in response to temperature change, please avoid the
following conditions (See FIG.3):
- Avoid the detector aiming towards the objects whose surfaces are highly
reflective, such as mirror, monitor, etc.
- Avoid the detector aiming towards the objects which may be swayed in the
wind, such as curtain, tall plants, miniature garden, etc.
- Avoid mounting the detector near heat sources, such as heating vents, air
conditioning, vents as dryers, lights, etc.
FIG 3-A
3.2 Functions
3.2.1 Auto Mode.
- Under Auto mode, the load will be on automatically when themovement is
detected and the ambient light level is below the Lux setting value. When
no movement is detected and the delay time has expired, the load will be
off automatically.
- According to the changeable ambient light level, detector can postpone
delay time of turning on and off its load to avoid unnecessarily switching
due to rapid ambient light change:
Ambient light level changes from bright to dark:
If the ambient light level keeps to be lower than the preset Lux value for
10sec, the light will be automatically switched on after 10sec. (LED will be
on 10sec for indication)
Ambient light level changes from dark to bright:
If the ambient light level continuously exceeds the switch off Lux value for
5min, there are different reactions according to the time setting value.
Time setting >5min, the light will be automatically switched off after 5min.
Time setting < 5min, the light will be automatically switched off when the set
time reached if no movement is detected during the 5min. But if there is
movement detected within the 5min, the time will be reset upon detection
and until 5min later, the light is switched off.
3.2.2 Push button function
The load can be manually switched on by using an external push button
switch (N.C. 10A type), See FIG.4 - FIG.6. When the load is off, it can be
switched on by a short press ( 1sec) on push button switch and Lux is
disabled. After the load is switched on manually, the load can be
automatically switched off if no movement is detected and the delay time
has expired.
3.3 Wiring
3.3.1 One load is controlled by one detector (See FIG.4).
3.3.2 One load is controlled by two detectors to enlarge detection range
(See FIG.5).
3.3.2 One detector controls staircase time switch (Time is set to
See FIG. 6).
Push button
(N.C. Type)
FIG. 2
3.4 Installation procedure
3.4.1 Surface mount with ceiling board.
3.4.1.1 Use flat head screwdriver to take off the decorative cover (See
FIG.7).
FIG. 3-B
3.4.1.2 Unscrew the 4 screws on main body cover to separate it from
bottom base (See FIG.8).
Gap
Push button
(N.C. Type)
Load
FIG. 4
Push button
Push button
(N.C. Type) (N.C. Type)
Load
FIG. 5
1s
Load
Staircase
lighting timer
FIG. 6
FIG. 7
Decorative
cover
Main body cover
Buttom Base
FIG. 8
