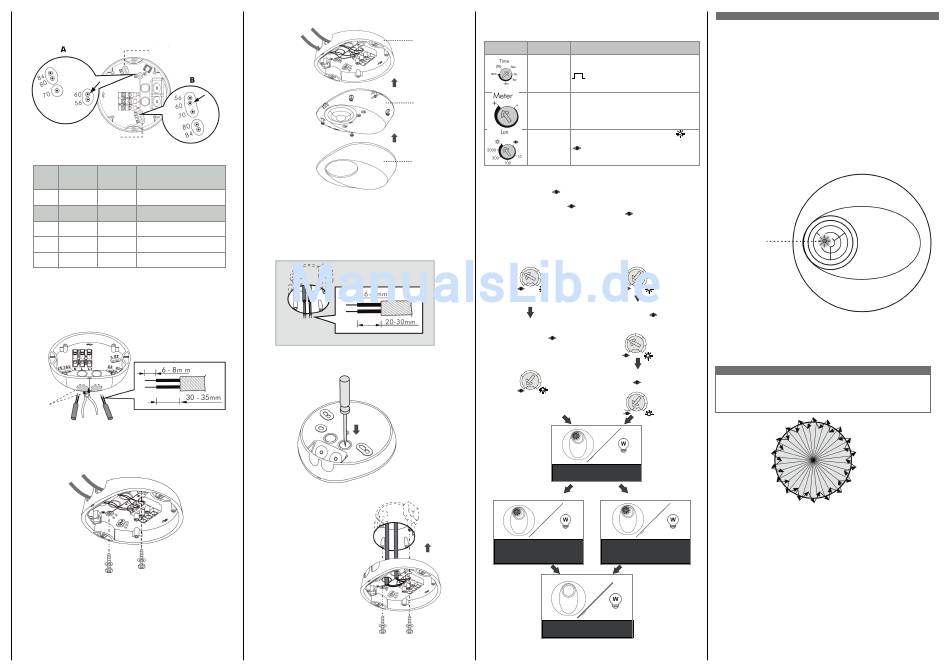

3.4.1.3 There are 5 pairs of knockouts with various distances from 56mm to
84mm on the bottom base to be selected for different mounting
applications (See FIG.9-A). Select two same figures on both ends
for the corresponding distance for fixing (See.9-B).
Knockouts
Knockouts
FIG. 9A
The distance
NO. A B
between A and B
1 56 56 56mm
2 60 60 60mm
3 70 70 70mm
4 80 80 80mm
5 84 84 84mm
FIG. 9B
3.4.1.4 The cables can be fed through either from side or bottom sides. To
feed AC power cables through the side entry holes, please use the
cutting pliers to break the cable entry knockouts on the side of
junction box, then insert cables into junction box and feed through it.
Strip off 6 - 8mm of cable sheathing for wiring (See FIG.10).
Cable entry
knockout
FIG. 10
3.4.1.5 Choose proper knockouts to fix the bottom base on the surface of
ceiling board with 2pcs wood screws (See FIG.11).
FIG. 11
3.4.1.6 Refer to the wiring diagrams (See FIG.4 - FIG.6) for correct cable
connections and refer the FIG.12 to assemble detector with the
bottom base.
Bottom base
Main body cover
Decorative cover
FIG. 12
3.4.1.7 Put on the decorative cover and restore power supply.
3.4.2 Surface mount with European standard junction box.
3.4.2.1 Pull out AC power cables from European standard junction box (See
FIG.13), then strip off 6 - 8mm of cable sheathing for wiring.
FIG. 13
3.4.2.2 Feed the power cables through bottom base, please use the
screwdriver to break the cable entry knockouts on the bottom base
(See FIG.14).
FIG. 14
3.4.2.3 Select appropriate distance from the bottom base mounting holes, to
fix the bottom base onto European standard junction box with two
wood screws (See FIG.15)
FIG. 15
3.4.2.4 Refer to the wiring diagrams (See FIG.4 - FIG.6) for correct cable .
connections and refer the FIG.12 to assemble detector with the
bottom base.
4

OPERATION AND FUNCTION

4.1 Setting of Time, Meter and Lux
knobs
Knob Function Knob setting
Range: Adjustable from approx. 5 Sek. to 30 Min.
Set delay off
Test : Test mode (Load and red LED will be 2
time for lighting
Sek. on, 2 Sek off)
1s
: Short impulse mode for staircase timer
switch control (Load will be 1 Sek on,
9Sek. off)
Set the Range: Adjustable from „-" (approx. Ø 2m) to
detection „+" (approx. Ø 16m), H=10m.
range
Set the light
Range: Adjustable from approx. 10Lux to „
value for
switching on
learn: The actual ambient light level
load
(10-2000Lux) can be read in.
4.2 Lux learning function with knob
Learning procedure:
4.2.1 Adjust the knob to when the ambient light level matches with the
desired value (See FIG.16-A).
4.2.2 When the knob is set to originally, it should be adjusted to other
position more than 1 sec, then goes back to (See FIG.16-B).
4.2.3 Then the load is off. LED starts to flash slowly indicating entering into
learning mode. Learning will be completed within 25 seconds.
Afterwards, the LED and load will keep on 5sec or LED flashes quickly
for 5sec and load is off to confirm successful learning (See FIG.16-C).
4.2.4 After learning procedure, the detector returns to AUTO mode with LED
and load being off.
100
100
300
300
10 10
2000 2000
Adjust knob to other
position from " "
100
300
Adjust knob to " " 10
from other position
2000
100
300
10 1sec after, goes
back to " "
2000
100
300
10
2000
FIG. 16-A
LED flashes slowly for 25sec
& Load is off
LED and load keep on 5sec LED flashes quickly for 5sec &
Load is off (the actual light
(the actual light level range
level range is out of 10 -2000Lux
is 10 - 2000Lux)
LED and load off
Detector switches to AUTO
Bild 16-C)
NOTE
- When the actual light level is out of the range 10 - 2000Lux, detector will
learn 25sec, then the red LED flashes quickly for 5sec. When the actual light
level is below 10Lux, Lux value is set to 10Lux, or is above 2000Lux, Lux
value is set to 2000Lux.
- Installer should be away from the detector to avoid affecting the luminous flux
that reaches the detector when learning Lux value.
4.3 Test mode
4.3.1 LED function
There is a built-in red LED as an indicator for infrared signal reception
and test mode status (See FIG.17).
4.3.1.1 In case the IR-11 remote control is used, the detector receives signal
∞
"( ).
from it, then red LED will flash 2sec quickly to indicate successful
signal reception.
4.3.1.2 LED can be used as an indicator in walk test so that load is no need to
be connected.
Red LED
FIG. 17
4.3.2 Walk test
The purpose of walk test is to select a proper installation place to get the
best detection range. Set meter knob at "+", time at "test" (refer to step 4.1),
then you can conduct a walk test and the detector is uncontrolled by Lux
setting. (See FIG.18).
Note
When the power is connected for the first time or it is resupplied after
shutting off, the detector will enter into 60sec warm up mode. During which,
LED and the load can be switched on for 60sec regardless of the time knob
of detector is set to any modes, and then off. After warming up is finished,
the detector will enter into Auto mode and work according to knob settings.
FIG. 16-B
FIG. 18
Test procedure
4.3.2.1 Tester must be within the detection coverage
4.3.2.2 Switch on the power.
4.3.2.3 Walk from outside across to the detection pattern. Red LED will turn on
for 2sec once the movement is detected.
4.3.2.4 Adjust meter knob to change coverage.
4.3.2.5 Repeat step 4.3.2.3 to 4.3.2.4 until it meets user's demands.
