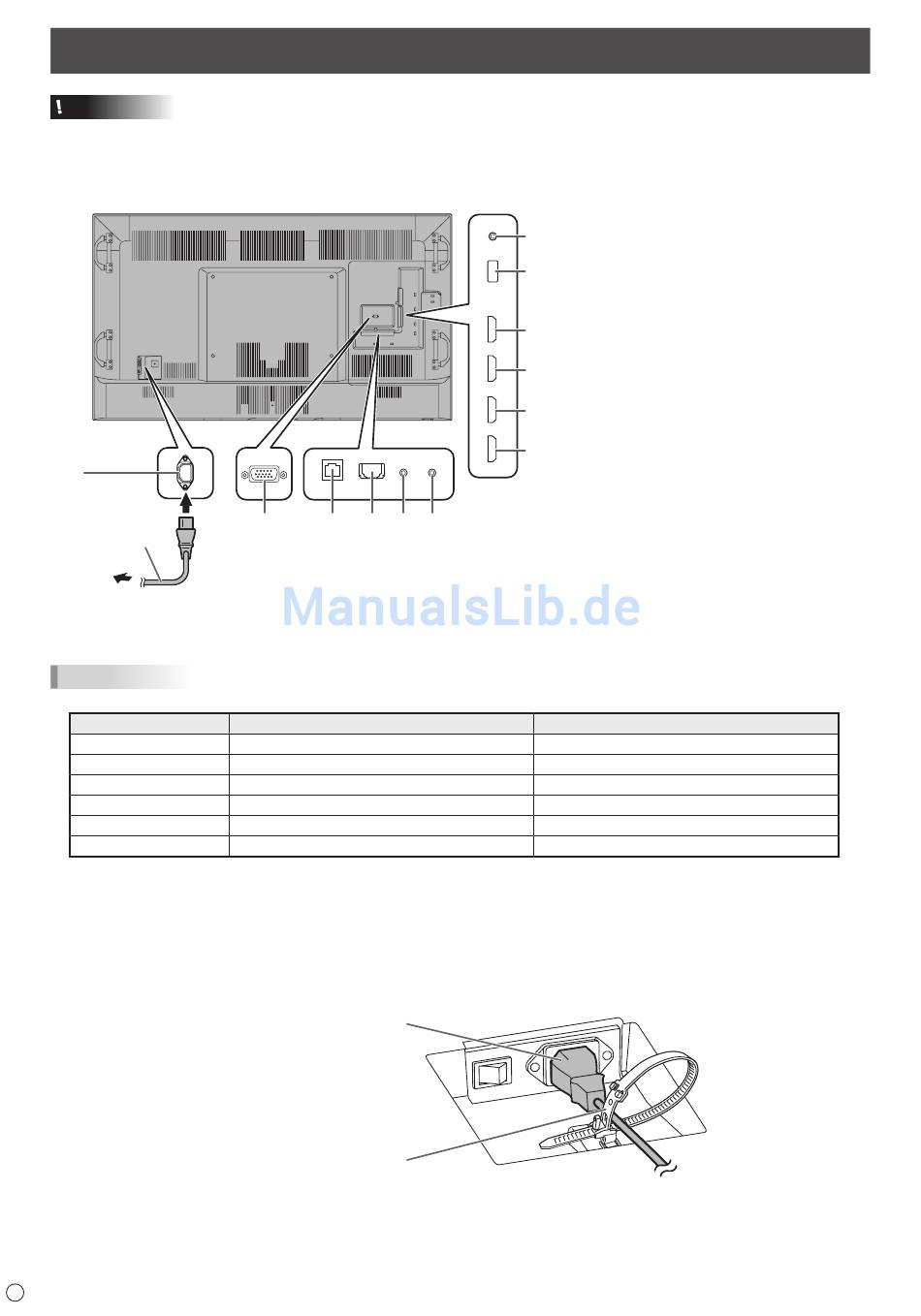

Connections - Sharp PN-H801 Installationsanleitung

Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
1
Power cord
(Supplied)
For power outlet
TIPS
• Video and audio input terminals for each input mode are shown below.
Input mode
HDMI1
HDMI2
HDMI3
HDMI4
D-SUB
MULTIMEDIA
* When using the audio input terminal, set AUDIO SELECT of INPUT SELECT in the SETUP menu.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing, LLC in the United States and other countries.
• MHL, the MHL logo, and Mobile High-Definition Link are trademarks or registered trademarks of MHL, LLC in the United
States and other countries.
• When installing the monitor in landscape orientation, be sure to clamp the power cord (supplied) onto the cable clamp
attachment using the supplied cable clamp (for power cord). When clamping the power cord, take care not to stress the
terminal of the power cord. Do not bend the power cord excessively.
6
E

Connections

2 3 4
Video
HDMI1 input terminal
HDMI2 input terminal
HDMI3 input terminal
HDMI4 input terminal
PC D-sub input terminal
USB port / Internal memory
Power cord (Supplied)
Cable clamp (for power cord)
7
8
9
10
11
12
5 6
HDMI1 input terminal
HDMI2 input terminal
HDMI3 input terminal/Audio input terminal *
HDMI4 input terminal
Audio input terminal *
USB port
1. AC input terminal
2. PC D-sub input terminal
3. LAN terminal
4. Digital audio output (optical)
terminal
5. Audio input terminal
6. CONTROL terminal
(RS-232C input terminal)
7. Headphone terminal
8. USB port
9. HDMI1 input terminal
(ARC compatible)
10. HDMI2 input terminal
11. HDMI3 input terminal
12. HDMI4 input terminal
(HDCP2.2 compatible, MHL
compatible)
Audio
