12 Measuring examples

These functions are described with a Unitron 2CHA being used. For other display units, please refer to
their particular operating instructions.

12.1 Operating the UMG at the Unitron 2 CHA

Procedure
1. Connect the UMG to channel 1.
2. Press the MEN button.
"
3. Select Einstellungen
4. Press ENT button.
5. Enter password 9999.
6. Press ENT button.
7. Go to UMG operation with the up/down arrow.
8. Go to "J" with the left arrow.
9. Press ENT button.
10.Press MEN button.

12.2 External measurement

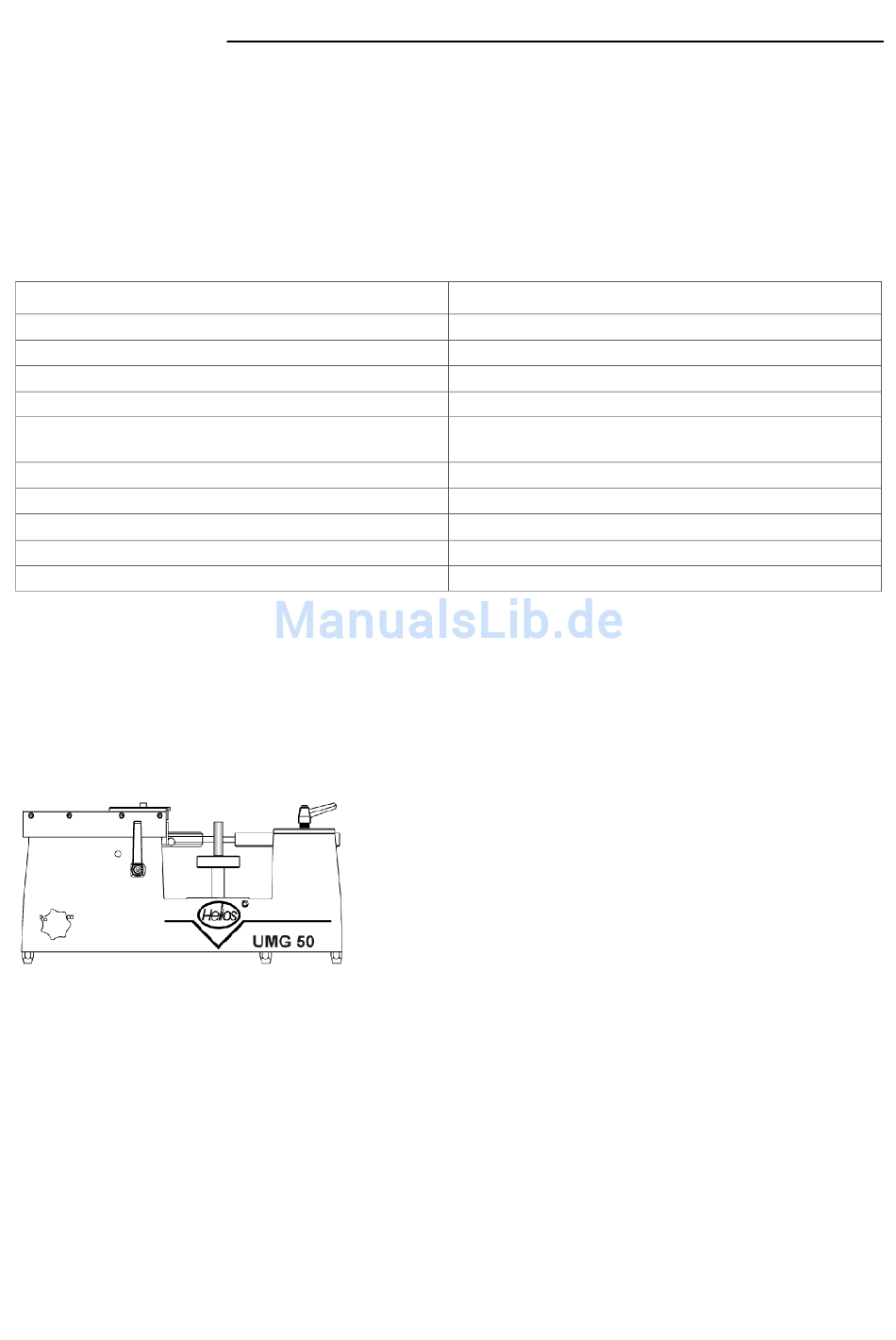

12.2.1 External measurement 0-50mm

In the UMG operation external measurement is automatically allocated to channel 1.
"
with the up/down arrow
Comments
Display: Funktionen CHA 1
Display: Einstellungen Password ****
Display: !!richtig!! Passwort **** is displayed shortly
after than: Einstellungen Grundeinstellung
Display: Einstellungen Mass C1 mm inch
Return to main menu
1. Switch to channel 1 with the CHA button.
2. Bring the measuring faces together.
3. Zero with the CLR button.
4. Insert the test piece and read off the
measurement from the display.
