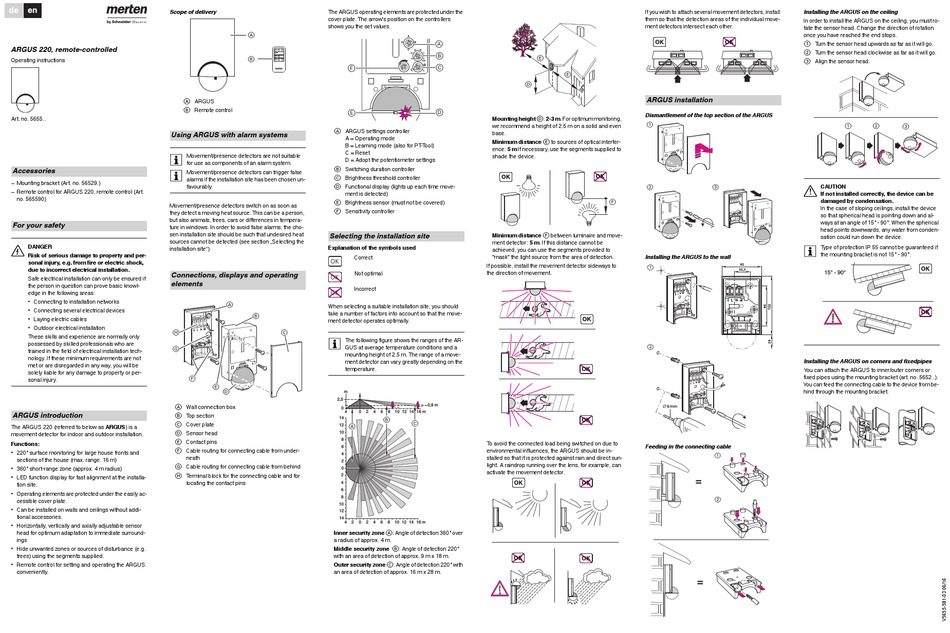

Scope of delivery
ARGUS 220, remote-controlled
Operating instructions
A ARGUS
B Remote control
Art. no. 5655..
Using ARGUS with alarm systems
Movement/presence detectors are not suitable
|
for use as components of an alarm system.
Accessories
Movement/presence detectors can trigger false
|
alarms if the installation site has been chosen un-
– Mounting bracket (Art. no. 56529.)
favourably.
– Remote control for ARGUS 220, remote control (Art.
no. 565590)
Movement/presence detectors switch on as soon as
they detect a moving heat source. This can be a person,
but also animals, trees, cars or differences in tempera-
For your safety
ture in windows. In order to avoid false alarms, the cho-
sen installation site should be such that undesired heat
sources cannot be detected (see section „Selecting the
¼
DANGER
installation site").
Risk of serious damage to property and per-
sonal injury, e.g. from fire or electric shock,
due to incorrect electrical installation.
Connections, displays and operating
Safe electrical installation can only be ensured if
elements
the person in question can prove basic knowl-
edge in the following areas:
• Connecting to installation networks
• Connecting several electrical devices
• Laying electric cables
• Outdoor electrical installation
H
These skills and experience are normally only
possessed by skilled professionals who are
G
trained in the field of electrical installation tech-
nology. If these minimum requirements are not
met or are disregarded in any way, you will be
solely liable for any damage to property or per-
sonal injury.
F
A Wall connection box
ARGUS introduction
B Top section
C Cover plate
The ARGUS 220 (referred to below as ARGUS) is a
D Sensor head
movement detector for indoor and outdoor installation.
E Contact pins
Functions:
F Cable routing for connecting cable from under-
• 220° surface monitoring for large house fronts and
neath
sections of the house (max. range. 16 m)
G Cable routing for connecting cable from behind
• 360° short-range zone (approx. 4 m radius)
H Terminal block for the connecting cable and for
• LED function display for fast alignment at the installa-
locating the contact pins
tion site.
• Operating elements are protected under the easily ac-
cessible cover plate.
• Can be installed on walls and ceilings without addi-
tional accessories.
• Horizontally, vertically and axially adjustable sensor
head for optimum adaptation to immediate surround-
ings
• Hide unwanted zones or sources of disturbance (e.g.
trees) using the segments supplied.
• Remote control for setting and operating the ARGUS
conveniently.
The ARGUS operating elements are protected under the
cover plate. The arrow's position on the controllers
shows you the set values.
A
AUTO
ON
OFF
SET
B
-30s
+30s
SET
+
F
merten
E
A ARGUS settings controller
A = Operating mode
B = Learning mode (also for PT-Tool)
C = Reset
D = Adopt the potentiometer settings
B Switching duration controller
C Brightness threshold controller
D Functional display (lights up each time move-
ment is detected)
E Brightness sensor (must not be covered)
F Sensitivity controller
Selecting the installation site
Explanation of the symbols used
Correct
Not optimal
Incorrect
A
When selecting a suitable installation site, you should
take a number of factors into account so that the move-
B
ment detector operates optimally.
C
The following figure shows the ranges of the AR-
|
GUS at average temperature conditions and a
mounting height of 2.5 m. The range of a move-
ment detector can vary greatly depending on the
temperature.
E
D
m
2,5
0
4
0
2
4
6
8
14
B
12
A
10
8
6
4
2
0
2
4
6
8
10
12
14
4
2
0
2
4
6
8
Inner security zone A: Angle of detection 360° over
a radius of approx. 4 m.
Middle security zone B: Angle of detection 220°
with an area of detection of approx. 9 m x 18 m.
Outer security zone C: Angle of detection 220° with
an area of detection of approx. 16 m x 28 m.
A
A
D
B
C
B
E
C
E
D
D
Mounting height D: 2-3 m. For optimum monitoring,
we recommend a height of 2.5 m on a solid and even
base.
Minimum distance E to sources of optical interfer-
ence: 5 m If necessary, use the segments supplied to
shade the device.
OK
Minimum distance F between luminaire and move-
ment detector: 5 m. If this distance cannot be
achieved, you can use the segments provided to
"mask" the light source from the area of detection.
If possible, install the movement detector sideways to
the direction of movement.
0,8 m
10 12 14 16 m
C
To avoid the connected load being switched on due to
environmental influences, the ARGUS should be in-
stalled so that it is protected against rain and direct sun-
light. A raindrop running over the lens, for example, can
activate the movement detector.
10 12 14 16 m
If you wish to attach several movement detectors, install
them so that the detection areas of the individual move-
ment detectors intersect each other.
ARGUS installation
Dismantlement of the top section of the ARGUS
1
OK
2
3
F
Installing the ARGUS to the wall
1
OK
2
OK
OK
Feeding in the connecting cable
1
=
2
=
Installing the ARGUS on the ceiling
In order to install the ARGUS on the ceiling, you must ro-
tate the sensor head. Change the direction of rotation
once you have reached the end stops.
1 Turn the sensor head upwards as far as it will go.
2 Turn the sensor head clockwise as far as it will go.
3 Align the sensor head.
1
2
3
½
CAUTION
If not installed correctly, the device can be
damaged by condensation.
In the case of sloping ceilings, install the device
so that spherical head is pointing down and al-
ways at an angle of 15° - 90°. When the spherical
head points downwards, any water from conden-
sation could run down the device.
Type of protection IP 55 cannot be guaranteed if
|
the mounting bracket is not 15° - 90°.
15° - 90°
Installing the ARGUS on corners and fixedpipes
You can attach the ARGUS to inner/outer corners or
fixed pipes using the mounting bracket (art. no. 5652..).
You can feed the connecting cable to the device from be-
hind through the mounting bracket.
