Mounting and Connection Instructions Viewguard DUAL / AM BUS-2/BUS-1
7. Detection coverage
Area optics with sneak-by guard:
Lens splitting 22 zones at 5 levels
Opening angle 80° hor., 64° vert.
PIR and MW range 8 / 11 / 13 / 15 m
(PIR and MW operate automatically with the same range.)
Recommended mounting height
If the detector is to be mounted higher than 2.5 m, then it should be
mounted with at least 3° vertical tilt down. The adjustable joint may be
necessary.
Carry out a walk test for each detector in all cases.

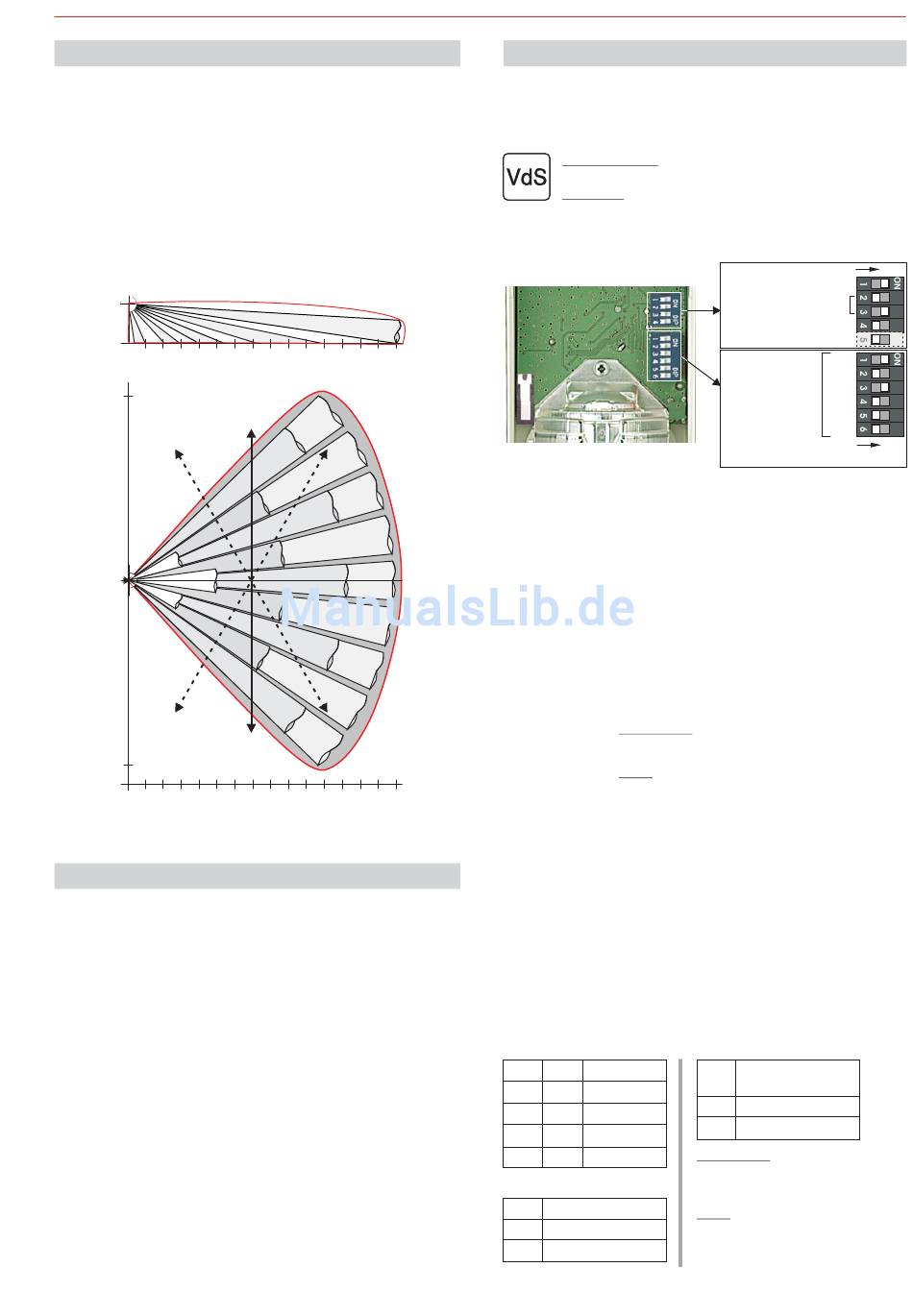

Typical detection coverage with range setting 15 m:
°
Mounting 0 inclination
2,5m
0m 5m
9m
MW
0m
Expected
direction
of motion
9m
Fig. 6
0m 5m
Due to the additional microwave, the dual detector has a very high
detection capacity even with diagonal movement.
8.

Monitoring functions

8.1 Anti-Mask function
The detector identifies when the foil is covered at a distance of up to
approx. 30 cm. It also identifies if the IR foil of the detector has been
taped or sprayed.
Operating with BUS-1 and BUS-2/SCM 3000 mode the Anti-Mask
function is active only in the "disarmed" state.
Operating with BUS-2/Viewguard mode the Anti-Mask function is
programmable: Active only in the "disarmed" state / always active /
always inactive.
Reaction time: approx. 20 sec., approx. 5 sec. in walk test mode.
The reference value is updated internally so that changes due to
contamination, etc. can be compensated for and the optimum response
threshold is maintained.
8.2 Self test
(only AM detector)
In a "disarmed" state, the correct PIR-functioning of the detector is
monitored in cycles.
If a malfunction is detected, a corresponding message is transmitted to
the control panel.
8.3 Monitoring of operating voltage
The detector is monitored to ensure that the specified minimum value is
observed.
If the minimum value is not reached, a corresponding message is
transmitted to the control panel.
2.5 m for optimal operating sensitivity.
(see 11.3)
10m 15m
40°
PIR
30°
20°
10°
0°
10°
20°
30°
40°
10m 15m
(only AM detector)
9. Programming
9.1 VdS notes
For installation in accordance with VdS standards, the following
points must be observed:
Sensitiviy/range:
"High" at 15 m not as per VdS
Anit-Mask:
The Anti-Mask function must be programmed
If the covered state is saved, this prevents arming.
9.2 DIP switch function
Fig. 7
user address
9.3 BUS
The DIP switch S2 (see Fig. 7) is for setting the BUS user address.
The address setting depends whether the detector is operated on BUS-2
or BUS-1.
9.4 Operation on BUS-2
- Set DIP switch S1/1 in "ON"
(No more DIP switch settings are required)
The following parameters can be programmed from the control panel
via the BUS-2 system:
- Range 8 / 11 / 13 / 15 m
- Sensitivity normal / high
- Fault/AM Do not save:
- Fault/cover signal is automatically cleared after
elimination of the fault/cover.
Save:
- Fault/cover signal remains saved in the
detector until it is cleared (see 12.2).
The following functions are supported
- Anti-Mask active only in the "disarmed" state / always active /
always inactive.
- Microwave - active only in the "armed" state / always active /
always inactive.
- sensitivity normal / high
- Tamper/backtamper aktive or inaktive
- Temp. alarm threshold, tolerance +/-2 °C
permissible range: -10 °C to +55 °C
9.5 Operation on BUS-1
- Set DIP switch S1/1 in "OFF"
- Set parameters:
S1/2 S1/3 Range
OFF OFF 8 m
ON OFF 11 m
OFF ON 13 m
ON ON 15 m
S1/4 Sensitivity
ON Normal
OFF High
at save
S1
BUS-1/BUS-2
Range
Sensitivity
Fault/AM do not save
1
S2
2
4
Valence
8
16
32
Example: Address 5
S1/5 only AM detectors
(Fig. 7)
position.
only in the Viewguard mode
position.
S1/5 Fault/AM
(only AM detectors)
ON do not save
OFF save
Do not save:
Fault/cover signal is automatically
cleared after elimination of the fault/
cover.
Save:
Fault/cover signal remains saved in
the detector until it is cleared (see
12.2).
9
.
ON
ON
:
