Mounting and Operating Instructions
DLS/3PH-BUS-Module-inverse
or
General lighting
Safety lighting

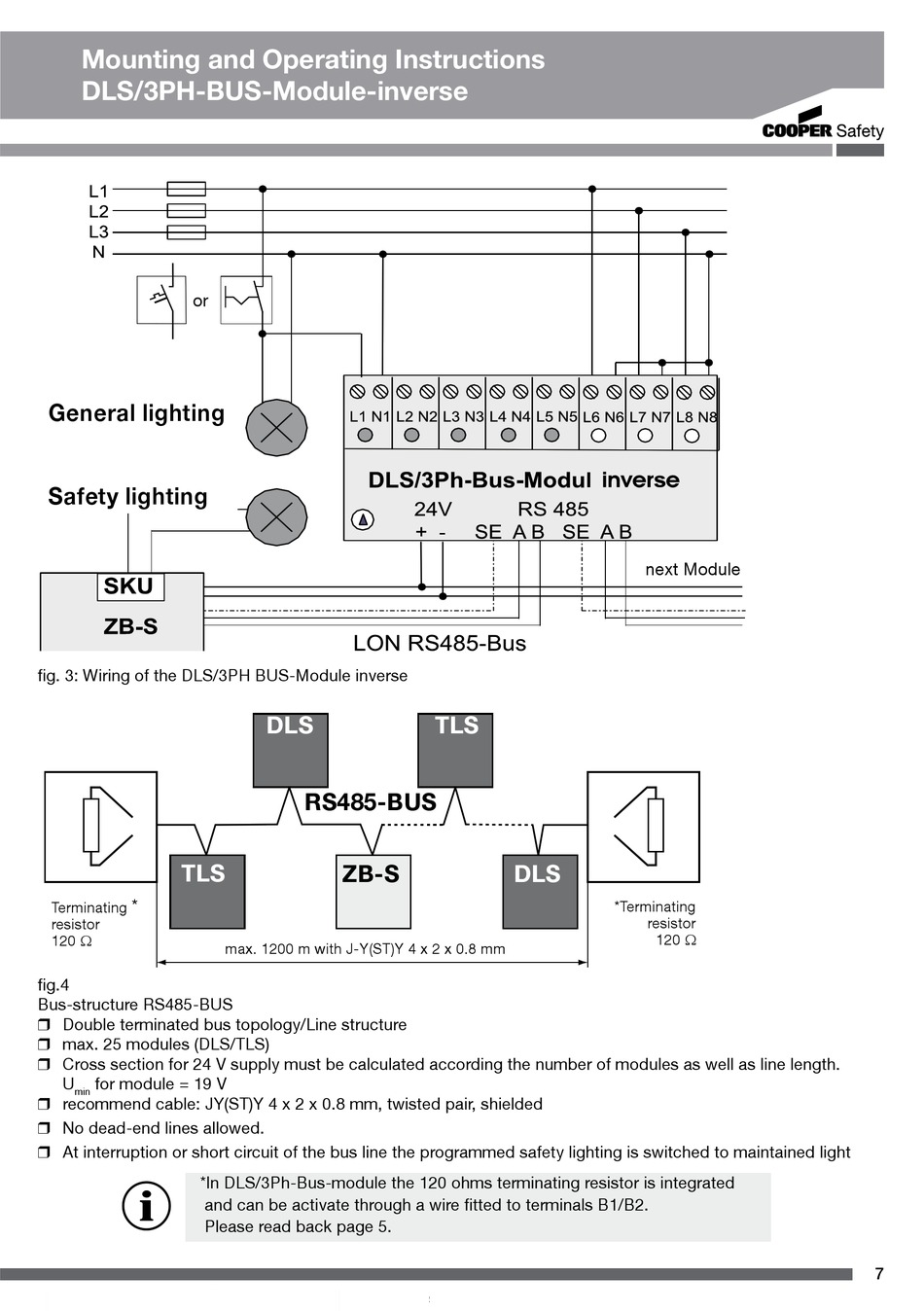

fig. 3: Wiring of the DLS/3PH BUS-Module inverse
TLS
*
Terminating
resistor
120 Ω
fig.4
Bus-structure RS485-BUS
 Double terminated bus topology/Line structure
 max. 25 modules (DLS/TLS)
 Cross section for 24 V supply must be calculated according the number of modules as well as line length.
U for module = 19 V
min
 recommend cable: JY(ST)Y 4 x 2 x 0.8 mm, twisted pair, shielded
 No dead-end lines allowed.
 At interruption or short circuit of the bus line the programmed safety lighting is switched to maintained light
*In DLS/3Ph-Bus-module the 120 ohms terminating resistor is integrated
and can be activate through a wire fitted to terminals B1/B2.
Please read back page 5.
DLS
RS485-BUS
ZB-S
max. 1200 m with J-Y(ST)Y 4 x 2 x 0.8 mm
TLS
DLS
next Module
*Terminating
resistor
120 Ω
