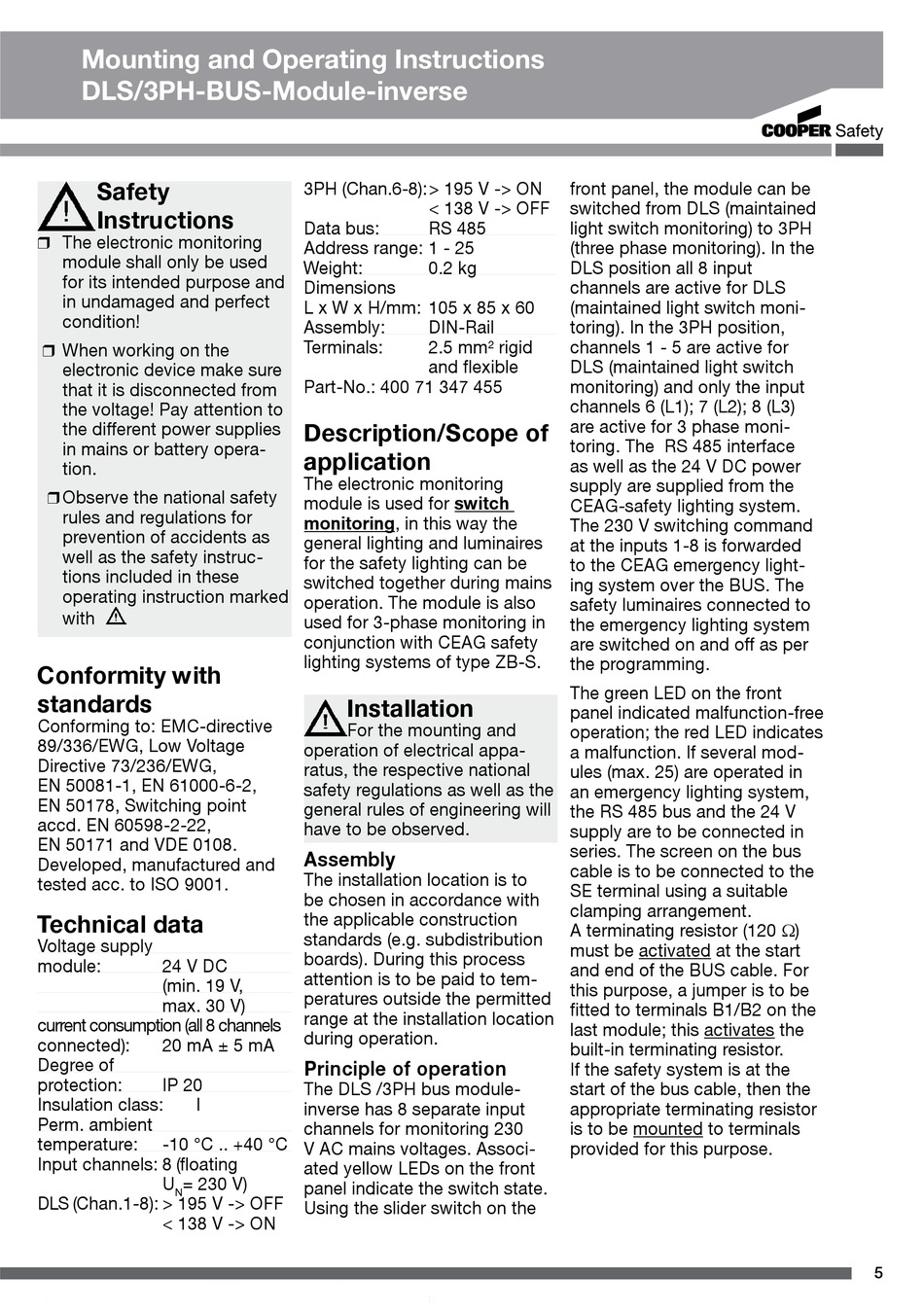

Mounting and Operating Instructions
DLS/3PH-BUS-Module-inverse
Safety
Instructions
The electronic monitoring
module shall only be used
for its intended purpose and
in undamaged and perfect
condition!
When working on the
electronic device make sure
that it is disconnected from
the voltage! Pay attention to
the different power supplies
in mains or battery opera-
tion.
Observe the national safety
rules and regulations for
prevention of accidents as
well as the safety instruc-
tions included in these
operating instruction marked
with
Conformity with
standards
Conforming to: EMC-directive
89/336/EWG, Low Voltage
Directive 73/236/EWG,
EN 50081-1, EN 61000-6-2,
EN 50178, Switching point
accd. EN 60598-2-22,
EN 50171 and VDE 0108.
Developed, manufactured and
tested acc. to ISO 9001.
Technical data
Voltage supply
module:
24 V DC
(min. 19 V,
max. 30 V)
current consumption (all 8 channels
connected):
20 mA ± 5 mA
Degree of
protection:
IP 20
Insulation class:
I
Perm. ambient
temperature:
-10 °C .. +40 °C
Input channels: 8 (floating
U
= 230 V)
N
DLS (Chan.1-8): > 195 V -> OFF
< 138 V -> ON
3PH (Chan.6-8): > 195 V -> ON
< 138 V -> OFF
Data bus:
RS 485
Address range: 1 - 25
Weight:
0.2 kg
Dimensions
L x W x H/mm: 105 x 85 x 60
Assembly:
DIN-Rail
Terminals:
2.5 mm² rigid
and flexible
Part-No.: 400 71 347 455
Description/Scope of
application
The electronic monitoring
module is used for switch
monitoring, in this way the
general lighting and luminaires
for the safety lighting can be
switched together during mains
operation. The module is also
used for 3-phase monitoring in
conjunction with CEAG safety
lighting systems of type ZB-S.
Installation
For the mounting and
operation of electrical appa-
ratus, the respective national
safety regulations as well as the
general rules of engineering will
have to be observed.
Assembly
The installation location is to
be chosen in accordance with
the applicable construction
standards (e.g. subdistribution
boards). During this process
attention is to be paid to tem-
peratures outside the permitted
range at the installation location
during operation.
Principle of operation
The DLS /3PH bus module-
inverse has 8 separate input
channels for monitoring 230
V AC mains voltages. Associ-
ated yellow LEDs on the front
panel indicate the switch state.
Using the slider switch on the
front panel, the module can be
switched from DLS (maintained
light switch monitoring) to 3PH
(three phase monitoring). In the
DLS position all 8 input
channels are active for DLS
(maintained light switch moni-
toring). In the 3PH position,
channels 1 - 5 are active for
DLS (maintained light switch
monitoring) and only the input
channels 6 (L1); 7 (L2); 8 (L3)
are active for 3 phase moni-
toring. The RS 485 interface
as well as the 24 V DC power
supply are supplied from the
CEAG-safety lighting system.
The 230 V switching command
at the inputs 1-8 is forwarded
to the CEAG emergency light-
ing system over the BUS. The
safety luminaires connected to
the emergency lighting system
are switched on and off as per
the programming.
The green LED on the front
panel indicated malfunction-free
operation; the red LED indicates
a malfunction. If several mod-
ules (max. 25) are operated in
an emergency lighting system,
the RS 485 bus and the 24 V
supply are to be connected in
series. The screen on the bus
cable is to be connected to the
SE terminal using a suitable
clamping arrangement.
A terminating resistor (120 Ω)
must be activated at the start
and end of the BUS cable. For
this purpose, a jumper is to be
fitted to terminals B1/B2 on the
last module; this activates the
built-in terminating resistor.
If the safety system is at the
start of the bus cable, then the
appropriate terminating resistor
is to be mounted to terminals
provided for this purpose.
