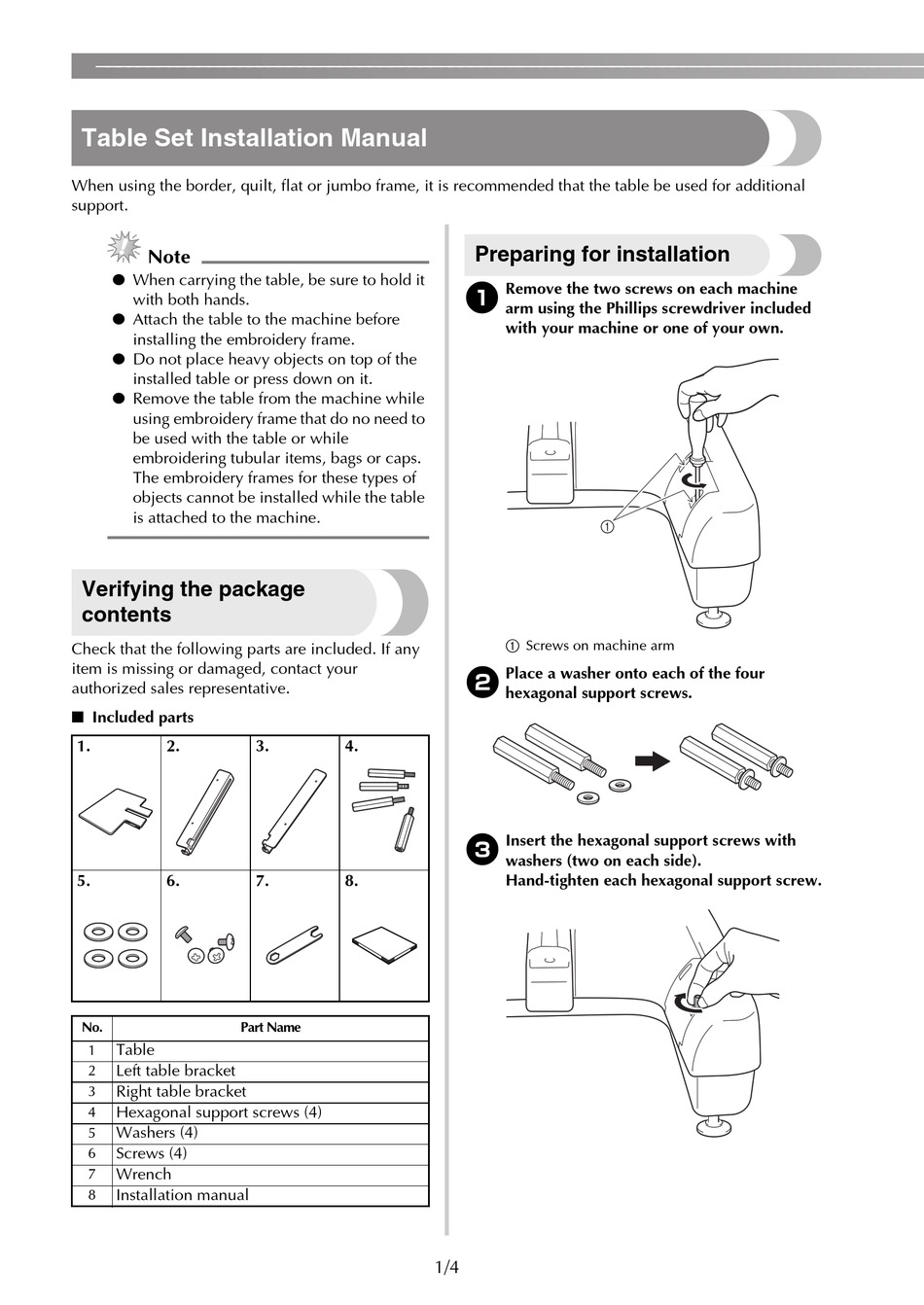

Table Set Installation Manual
When using the border, quilt, flat or jumbo frame, it is recommended that the table be used for additional
support.
Note
● When carrying the table, be sure to hold it
with both hands.
● Attach the table to the machine before
installing the embroidery frame.
● Do not place heavy objects on top of the
installed table or press down on it.
● Remove the table from the machine while
using embroidery frame that do no need to
be used with the table or while
embroidering tubular items, bags or caps.
The embroidery frames for these types of
objects cannot be installed while the table
is attached to the machine.
Verifying the package
contents
Check that the following parts are included. If any
item is missing or damaged, contact your
authorized sales representative.
■ Included parts
1. 2.
5. 6.
No. Part Name
Table
1
Left table bracket
2
Right table bracket
3
Hexagonal support screws (4)
4
Washers (4)
5
Screws (4)
6
Wrench
7
Installation manual
8
3. 4.
7. 8.

Preparing for installation

1 Remove the two screws on each machine
arm using the Phillips screwdriver included
with your machine or one of your own.
1 Screws on machine arm
Place a washer onto each of the four
2
hexagonal support screws.
3 Insert the hexagonal support screws with
washers (two on each side).
Hand-tighten each hexagonal support screw.
1/4
