XG-C55X

OPERATION MANUAL

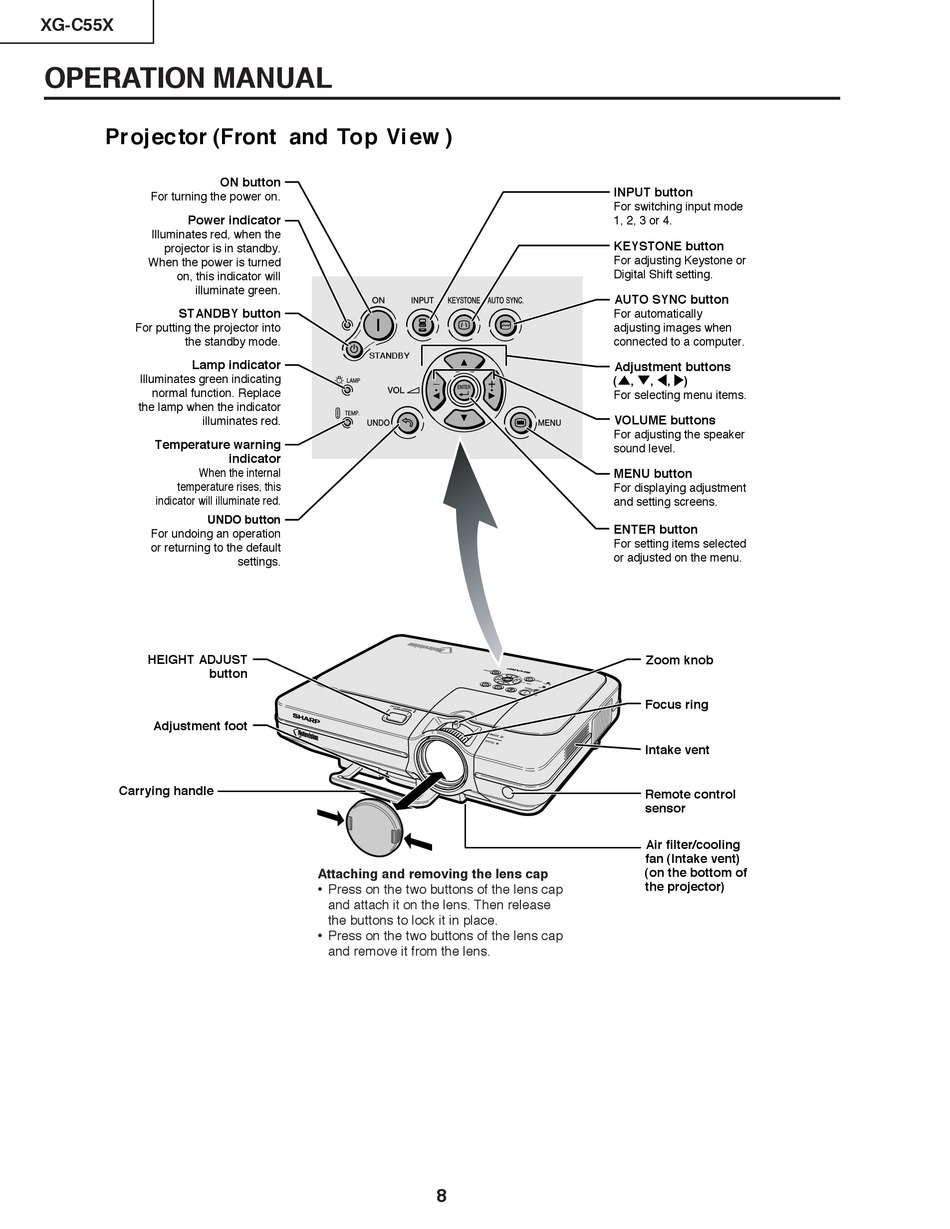

Pr oj ector (Front and Top Vi ew )
For turning the power on.
Power indicator
Illuminates red, when the
projector is in standby.
When the power is turned
on, this indicator will
illuminate green.
STANDBY button
For putting the projector into
the standby mode.
Lamp indicator
Illuminates green indicating
normal function. Replace
the lamp when the indicator
illuminates red.
Temperature warning
When the internal
temperature rises, this
indicator will illuminate red.
UNDO button
For undoing an operation
or returning to the default
HEIGHT ADJUST
button
Adjustment foot
Carrying handle
ON button
STANDBY
indicator
settings.
Attaching and removing the lens cap
• Press on the two buttons of the lens cap
and attach it on the lens. Then release
the buttons to lock it in place.
• Press on the two buttons of the lens cap
and remove it from the lens.
INPUT button
For switching input mode
1, 2, 3 or 4.
KEYSTONE button
For adjusting Keystone or
Digital Shift setting.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
Adjustment buttons
(', ", \, |)
For selecting menu items.
VOLUME buttons
For adjusting the speaker
sound level.
MENU button
For displaying adjustment
and setting screens.
ENTER button
For setting items selected
or adjusted on the menu.
8
Zoom knob
Focus ring
Intake vent
Remote control
sensor
Air filter/cooling
fan (Intake vent)
(on the bottom of
the projector)
