XG-C55X

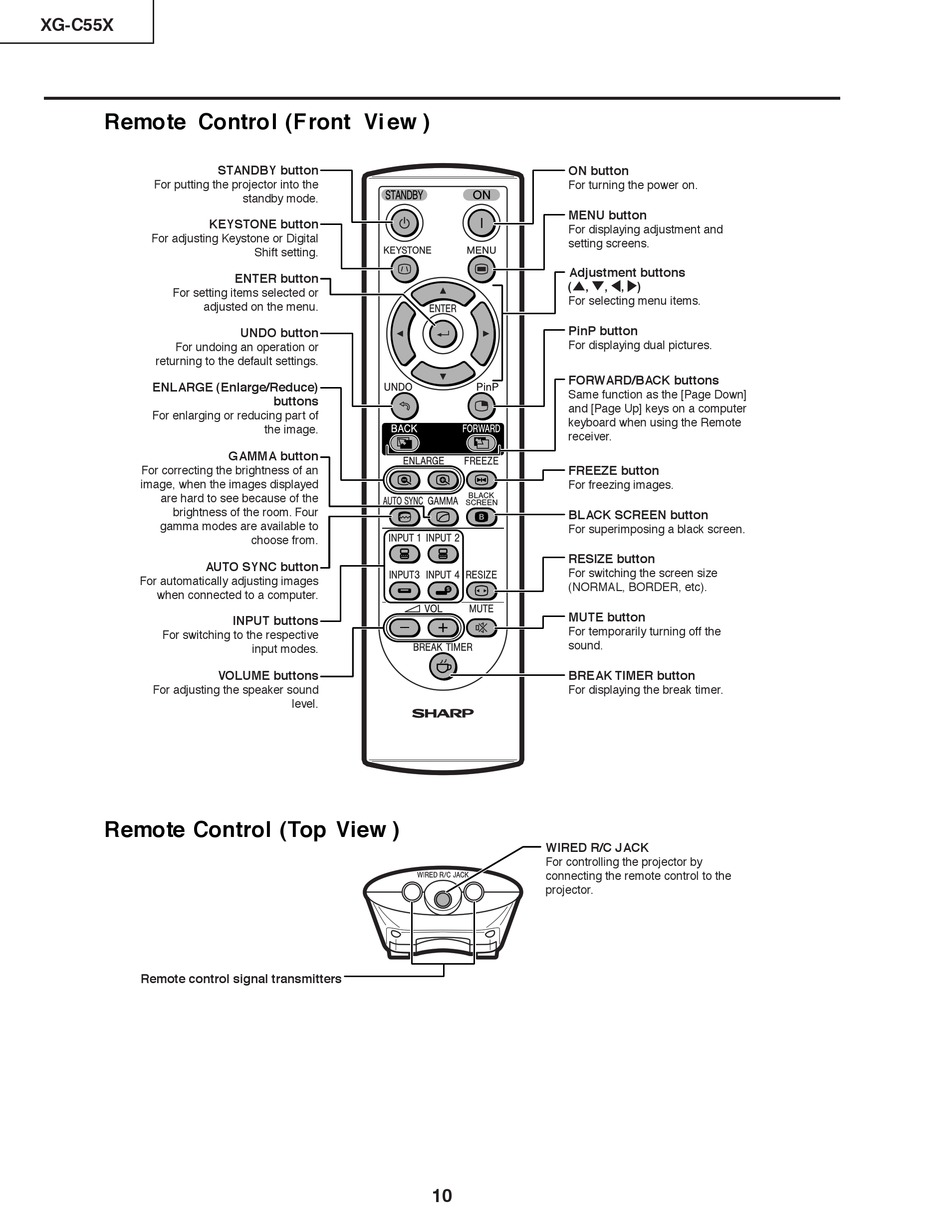

Remote Control (F ront Vi ew )
STANDBY button
For putting the projector into the
KEYSTONE button
For adjusting Keystone or Digital
For setting items selected or
adjusted on the menu.
For undoing an operation or
returning to the default settings.
ENLARGE (Enlarge/Reduce)
For enlarging or reducing part of
For correcting the brightness of an
image, when the images displayed
are hard to see because of the
brightness of the room. Four
gamma modes are available to
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
For switching to the respective
VOLUME buttons
For adjusting the speaker sound
Remote Control (Top View )
Remote control signal transmitters
standby mode.
Shift setting.
ENTER button
UNDO button
buttons
the image.
GAMMA button
choose from.
INPUT buttons
input modes.
level.
ON button
For turning the power on.
MENU button
For displaying adjustment and
setting screens.
Adjustment buttons
(', ", \, |)
For selecting menu items.
PinP button
For displaying dual pictures.
FORWARD/BACK buttons
Same function as the [Page Down]
and [Page Up] keys on a computer
keyboard when using the Remote
receiver.
FREEZE button
For freezing images.
BLACK SCREEN button
For superimposing a black screen.
RESIZE button
For switching the screen size
(NORMAL, BORDER, etc).
MUTE button
For temporarily turning off the
sound.
BREAK TIMER button
For displaying the break timer.
WIRED R/C JACK
For controlling the projector by
connecting the remote control to the
projector.
10
