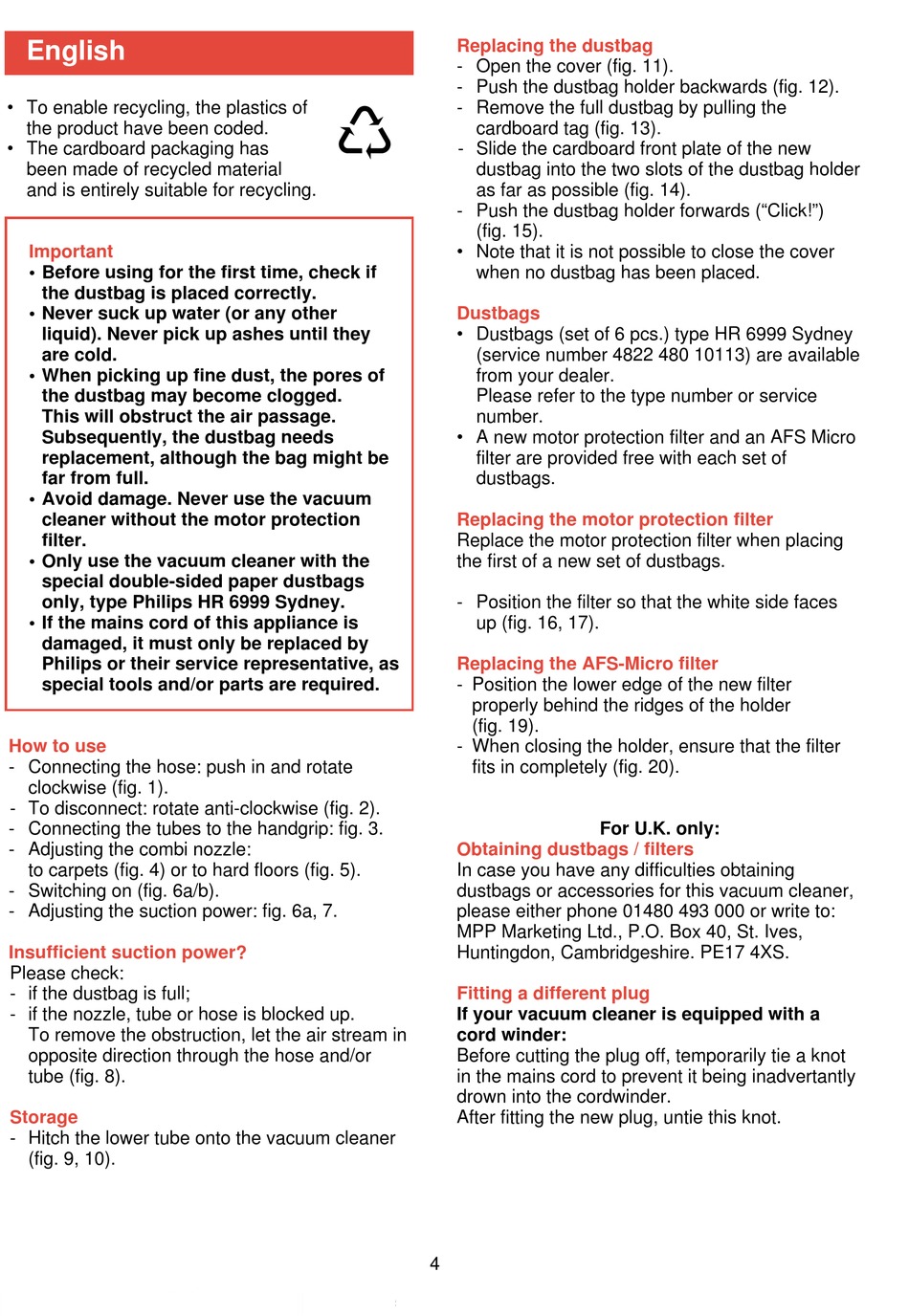

English
• To enable recycling, the plastics of
the product have been coded.
• The cardboard packaging has
been made of recycled material
and is entirely suitable for recycling.
Important
• Before using for the first time, check if
the dustbag is placed correctly.
• Never suck up water (or any other
liquid). Never pick up ashes until they
are cold.
• When picking up fine dust, the pores of
the dustbag may become clogged.
This will obstruct the air passage.
Subsequently, the dustbag needs
replacement, although the bag might be
far from full.
• Avoid damage. Never use the vacuum
cleaner without the motor protection
filter.
• Only use the vacuum cleaner with the
special double-sided paper dustbags
only, type Philips HR 6999 Sydney.
• If the mains cord of this appliance is
damaged, it must only be replaced by
Philips or their service representative, as
special tools and/or parts are required.
How to use
- Connecting the hose: push in and rotate
clockwise (fig. 1).
- To disconnect: rotate anti-clockwise (fig. 2).
- Connecting the tubes to the handgrip: fig. 3.
- Adjusting the combi nozzle:
to carpets (fig. 4) or to hard floors (fig. 5).
- Switching on (fig. 6a/b).
- Adjusting the suction power: fig. 6a, 7.
Insufficient suction power?
Please check:
- if the dustbag is full;
- if the nozzle, tube or hose is blocked up.
To remove the obstruction, let the air stream in
opposite direction through the hose and/or
tube (fig. 8).
Storage
- Hitch the lower tube onto the vacuum cleaner
(fig. 9, 10).
Replacing the dustbag
- Open the cover (fig. 11).
- Push the dustbag holder backwards (fig. 12).
- Remove the full dustbag by pulling the
f
cardboard tag (fig. 13).
- Slide the cardboard front plate of the new
dustbag into the two slots of the dustbag holder
as far as possible (fig. 14).
- Push the dustbag holder forwards ("Click!")
(fig. 15).
• Note that it is not possible to close the cover
when no dustbag has been placed.
Dustbags
• Dustbags (set of 6 pcs.) type HR 6999 Sydney
(service number 4822 480 10113) are available
from your dealer.
Please refer to the type number or service
number.
• A new motor protection filter and an AFS Micro
filter are provided free with each set of
dustbags.
Replacing the motor protection filter
Replace the motor protection filter when placing
the first of a new set of dustbags.
- Position the filter so that the white side faces
up (fig. 16, 17).
Replacing the AFS-Micro filter
- Position the lower edge of the new filter
properly behind the ridges of the holder
(fig. 19).
- When closing the holder, ensure that the filter
fits in completely (fig. 20).
Obtaining dustbags / filters
In case you have any difficulties obtaining
dustbags or accessories for this vacuum cleaner,
please either phone 01480 493 000 or write to:
MPP Marketing Ltd., P.O. Box 40, St. Ives,
Huntingdon, Cambridgeshire. PE17 4XS.
Fitting a different plug
If your vacuum cleaner is equipped with a
cord winder:
Before cutting the plug off, temporarily tie a knot
in the mains cord to prevent it being inadvertantly
drown into the cordwinder.
After fitting the new plug, untie this knot.
4
For U.K. only:
