Installation

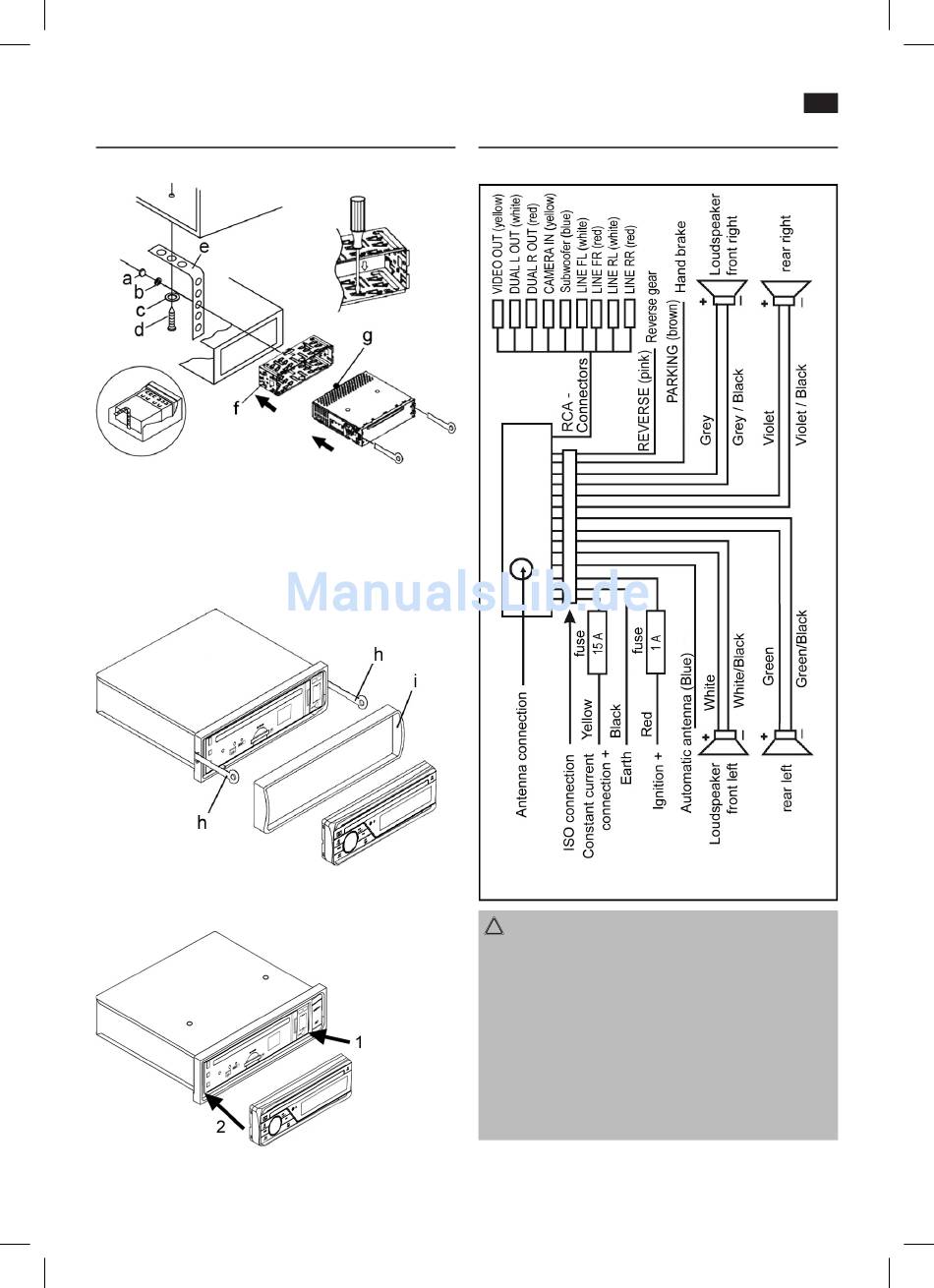

Please install the car radio as shown below.
a Nut
b Spring washer
c Plain washer
d Screw
e Mounting bracket
f Slide-in housing
g Threaded bolt
h Extraction tool (spanner for dismantling)
i Frame
Place the control panel in the correct position and then lock
this into place on the left-hand side.
05_AR4026DVD_AEG_SK.indd 27

Connection

Connect the device as shown in the diagram.
CAUTION:
• Do not attach the removable control panel until after
connection of the cables.
• Please use loudspeakers with an impedance of
4 ohm.
• The loudspeaker cables must be unearthed.
• If a subwoofer is connected, an amplifier is required.
• The earth connection cable (PARKING) must be
connected in order for DVD pictures to be played
back to the monitor. If the cable has not been properly
connected the message "WARNING! ENJOY SOUND
ONLY WHILE DRIVING" appears.
