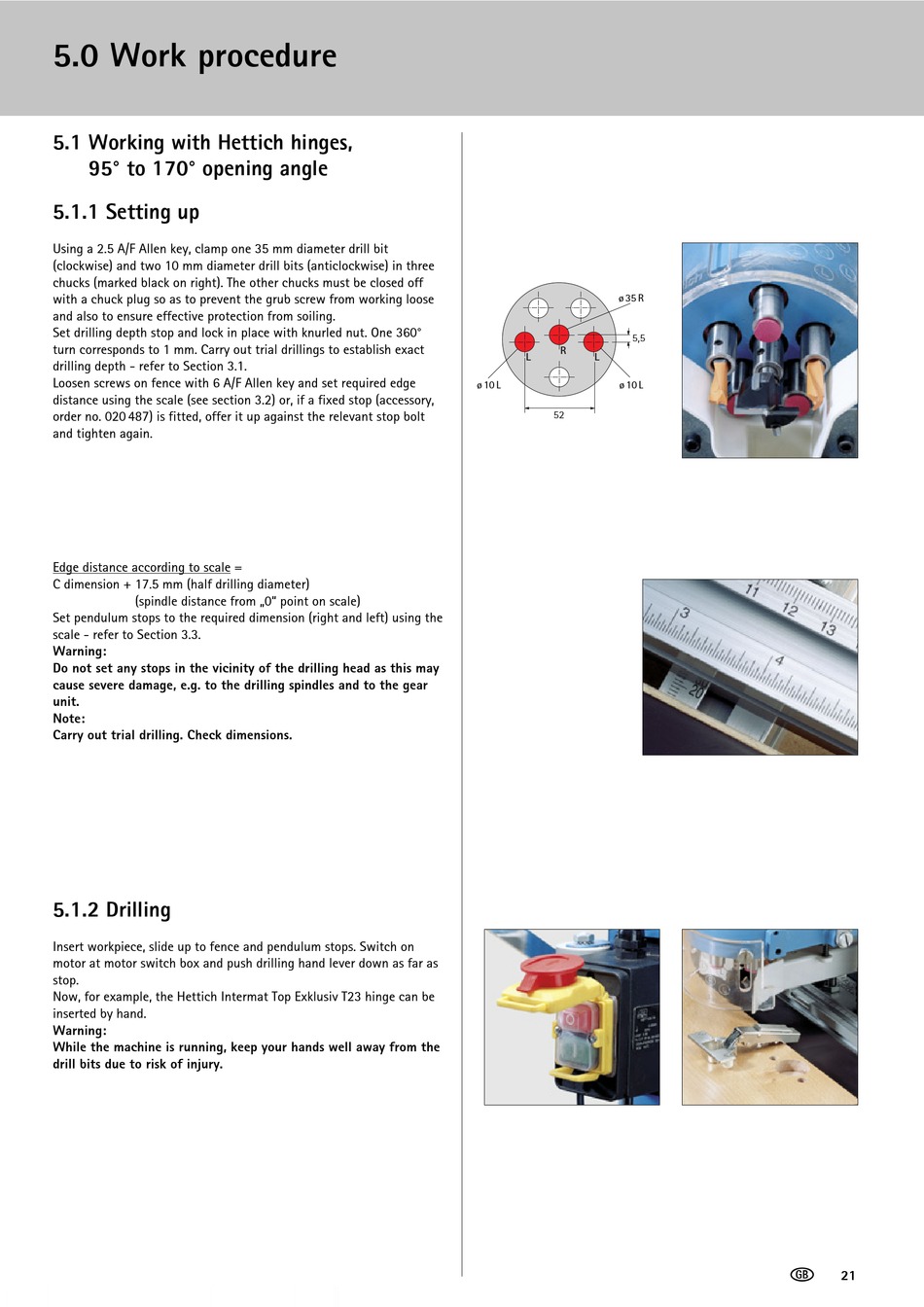

5.0 Work procedure

5.1 Working with Hettich hinges,

95° to 170° opening angle
5.1.1 Setting up
Using a 2.5 A/F Allen key, clamp one 35 mm diameter drill bit
(clockwise) and two 10 mm diameter drill bits (anticlockwise) in three
chucks (marked black on right). The other chucks must be closed off
with a chuck plug so as to prevent the grub screw from working loose
and also to ensure effective protection from soiling.
Set drilling depth stop and lock in place with knurled nut. One 360°
turn corresponds to 1 mm. Carry out trial drillings to establish exact
drilling depth - refer to Section 3.1.
Loosen screws on fence with 6 A/F Allen key and set required edge
distance using the scale (see section 3.2) or, if a fixed stop (accessory,
order no. 020 487) is fitted, offer it up against the relevant stop bolt
and tighten again.
Edge distance according to scale =
C dimension + 17.5 mm (half drilling diameter)
(spindle distance from „0" point on scale)
Set pendulum stops to the required dimension (right and left) using the
scale - refer to Section 3.3.
Warning:
Do not set any stops in the vicinity of the drilling head as this may
cause severe damage, e.g. to the drilling spindles and to the gear
unit.
Note:
Carry out trial drilling. Check dimensions.
5.1.2 Drilling
Insert workpiece, slide up to fence and pendulum stops. Switch on
motor at motor switch box and push drilling hand lever down as far as
stop.
Now, for example, the Hettich Intermat Top Exklusiv T23 hinge can be
inserted by hand.
Warning:
While the machine is running, keep your hands well away from the
drill bits due to risk of injury.
ø 35 R
5,5
R
L L
ø 10 L ø 10 L
52
g d
21
