automix 10 Betriebsanleitung Seite 16

english

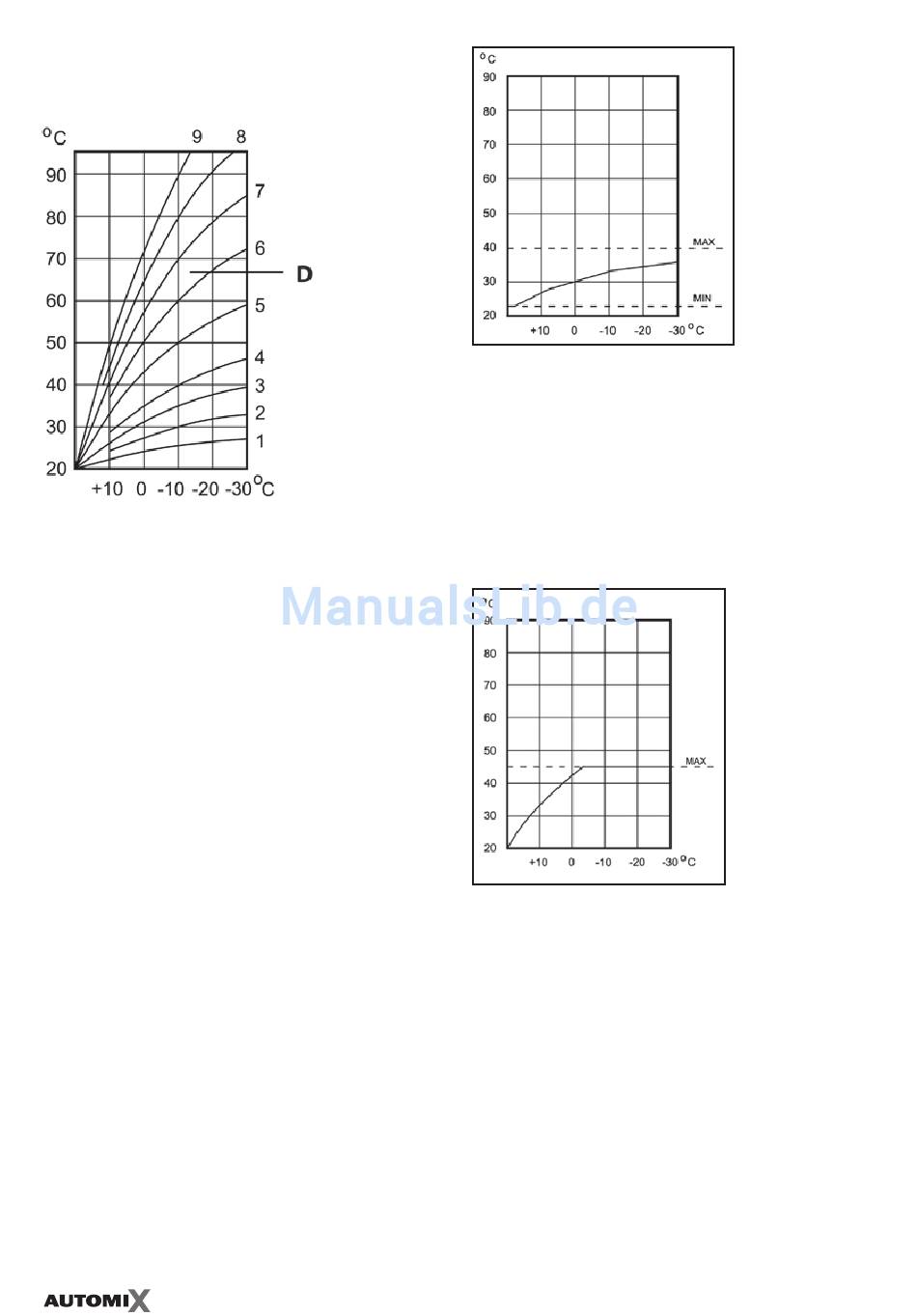

REGULATING GRAPHS
Supply water temperature
Outdoor temperature
RIGHT OR LEFT TURNING DIRECTION
OF MOTOR
Right or Left turning direction of the motor is
selected with knob E. At delivery the motor opens
the mixing valve clockwise. Knob E is at R = RIGHT.
If the mixing valve opens counter clockwise the
knob E is to be moved to L = LEFT.
SETTING MIN. AND MAX. SUPPLY WATER
TEMPERATURE
Min. supply water temperature can be set
between 15 °C – 35 °C and max. supply water
temperature between 40 °C – 95 °C. When min.
supply water temperature is set to 30 °C or below,
the max. supply water temperature will auto-
matically be 40 °C. When min. supply water tem-
perature is set above 30 °C, the max. supply
water temperature is automatically 45 °C.
Setting of min. supply water temperature is used in
radiant floor heating applications to obtain a com-
fortable floor temperature. Min. supply water tem-
perature is selected with knob H. In the example
graph 2,5 has been selected and the min. supply
water temperature is set to 22 °C. Max. supply water
temperature will automatically be 40 °C.
Setting of max. supply water temperature is used in
hydronic radiator heating systems. Max. supply wa-
ter temperature is selected with knob H. In the
example graph 5 has been selected. Max.supply
water temperature is set to 45 °C.
1
