- After pressing the „Start/Stop" key, the battery connected is discharged to its
respective end discharge voltage of 1 V per cell using the programmed
discharge current.
- When the discharge process is completed, the respective channel LED flashes
in the display.
- The capacity discharged from the battery can be read in the display.
- The battery should then be charged as soon as possible. NiCd cells in particular
are prone to damage through further self-discharge if they are stored in a
discharged condition.

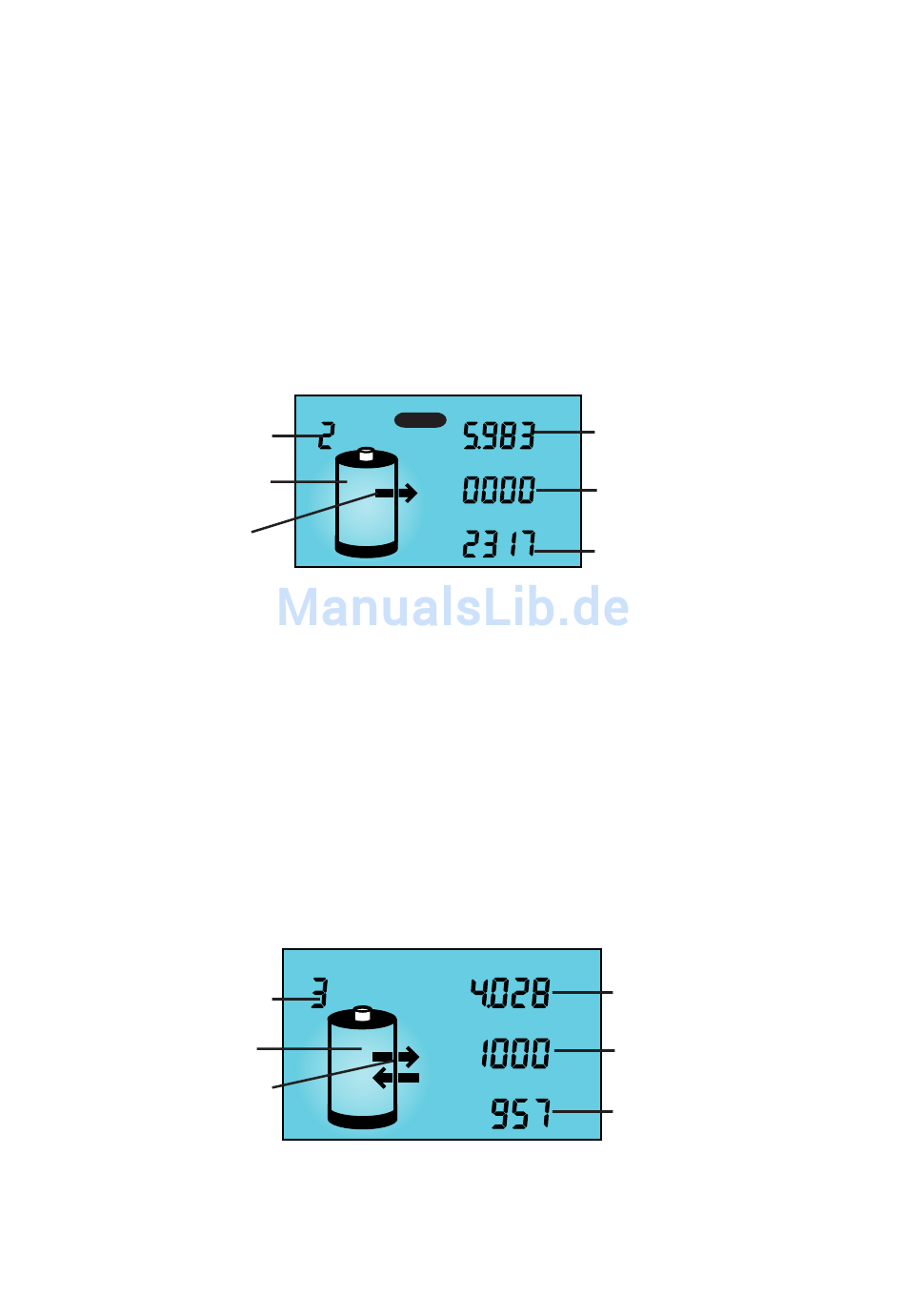

LC display indicators in discharging mode:
Selected channel
Battery symbol
Indicator for
discharge mode
7.3. Discharge/Charge
- Select the „Discharge/Charge" function using the „Funktion" (function) key
(refer to diagram). This function is graphically represented in the display by a
charge/discharge arrow.
- After pressing the Start key, the discharge process begins to discharge the
connected battery.
- When the battery has reached the end discharge voltage of 1 V per cell, the
charging process begins automatically using the programmed charging
current.
- The charging process is completed when the unit switches to trickle charge.
Selected channel
Battery symbol
Indicator for charge/
discharge mode
Kanal Spannung
Entladen
Strom
Kapazität
Kanal
Current cell voltage
V
Discharge current, zero,
mA
discharge ended
Discharged capacity
mAh
during prior discharge
process
Spannung
Current cell voltage
V
Strom
Current charging current
mA
Kapazität
Discharged capacity
mAh
during prior discharge
process
