Energetics CT 210 HEIMTRAINER Betriebshandbuch Seite 9

Step 3
5
20
21
22
24
25
1

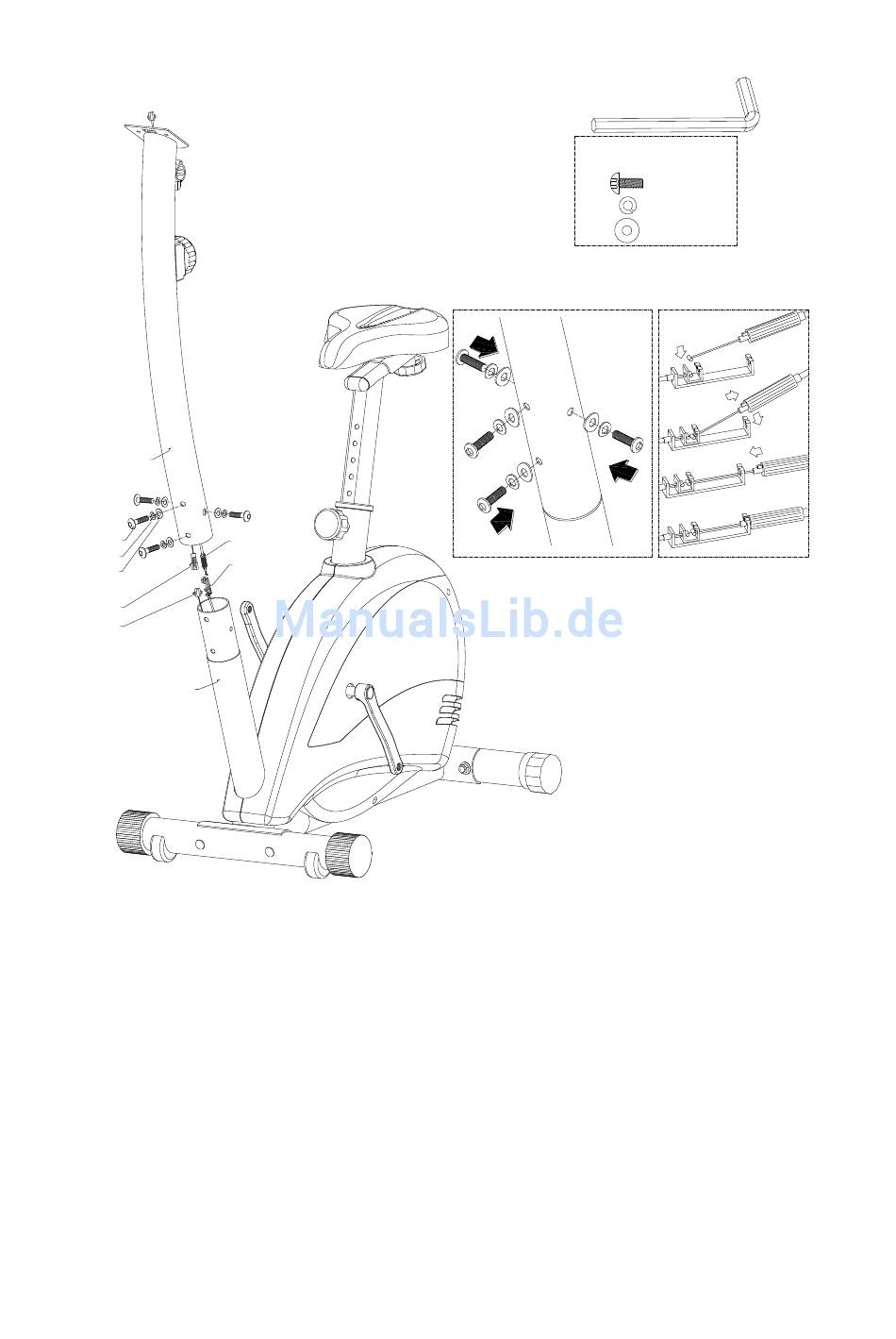

1. Connect the computer cable (24&25) and tension cable (34 & 26).
2. Assemble the handlebar post (5) to the main frame (1) by using the bolt (20), the spring
washer (21) and curved washer (22).
34
26
C
(B)
9
(x4)
M8*1.25*20L
D15.4*D8.2*2T
D22*D8.5*1.5T
(A)
A-1
A-2
A-3
A-4
