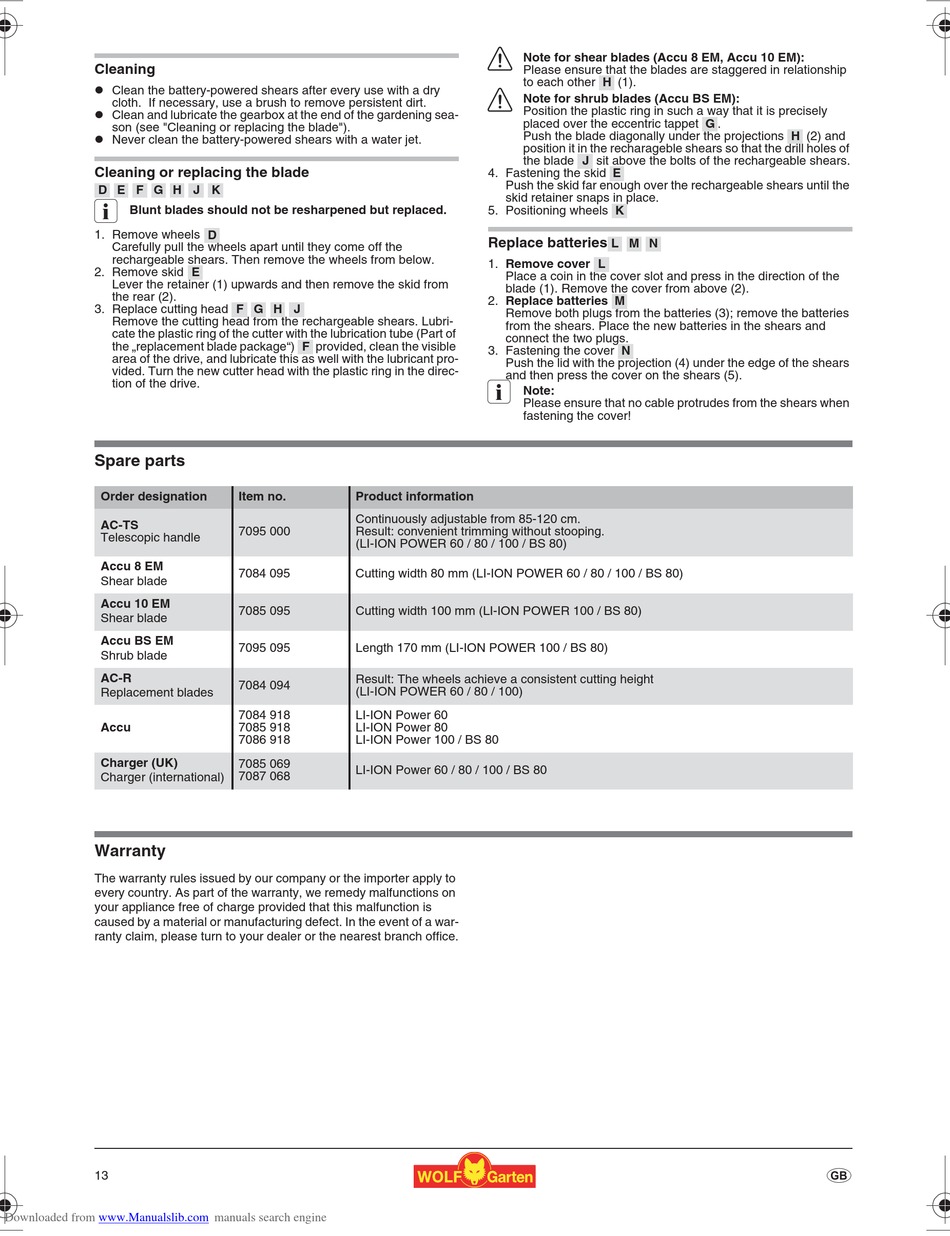

Cleaning
z Clean the battery-powered shears after every use with a dry
cloth. If necessary, use a brush to remove persistent dirt.
z Clean and lubricate the gearbox at the end of the gardening sea-
son (see "Cleaning or replacing the blade").
z Never clean the battery-powered shears with a water jet.
Cleaning or replacing the blade
D E F G H J K
3
Blunt blades should not be resharpened but replaced.
1. Remove wheels
Carefully pull the wheels apart until they come off the
rechargeable shears. Then remove the wheels from below.
2. Remove skid
Lever the retainer (1) upwards and then remove the skid from
the rear (2).
3. Replace cutting head
Remove the cutting head from the rechargeable shears. Lubri-
cate the plastic ring of the cutter with the lubrication tube (Part of
the „replacement blade package")
area of the drive, and lubricate this as well with the lubricant pro-
vided. Turn the new cutter head with the plastic ring in the direc-
tion of the drive.

Spare parts

Order designation
AC-TS
Telescopic handle
Accu 8 EM
Shear blade
Accu 10 EM
Shear blade
Accu BS EM
Shrub blade
AC-R
Replacement blades
Accu
Charger (UK)
Charger (international)

Warranty

The warranty rules issued by our company or the importer apply to
every country. As part of the warranty, we remedy malfunctions on
your appliance free of charge provided that this malfunction is
caused by a material or manufacturing defect. In the event of a war-
ranty claim, please turn to your dealer or the nearest branch office.
13
Downloaded from www.Manualslib.com
D
E
F G H J
F provided, clean the visible
Item no. Product information
Continuously adjustable from 85-120 cm.
7095 000 Result: convenient trimming without stooping.
(LI-ION POWER 60 / 80 / 100 / BS 80)
7084 095 Cutting width 80 mm (LI-ION POWER 60 / 80 / 100 / BS 80)
7085 095 Cutting width 100 mm (LI-ION POWER 100 / BS 80)
7095 095 Length 170 mm (LI-ION POWER 100 / BS 80)
Result: The wheels achieve a consistent cutting height
7084 094
(LI-ION POWER 60 / 80 / 100)
7084 918 LI-ION Power 60
7085 918 LI-ION Power 80
7086 918 LI-ION Power 100 / BS 80
7085 069
LI-ION Power 60 / 80 / 100 / BS 80
7087 068
manuals search engine
1
Note for shear blades (Accu 8 EM, Accu 10 EM):
Please ensure that the blades are staggered in relationship
to each other H (1).
1
Note for shrub blades (Accu BS EM):
Position the plastic ring in such a way that it is precisely
placed over the eccentric tappet
Push the blade diagonally under the projections
position it in the recharageble shears so that the drill holes of
the blade J sit above the bolts of the rechargeable shears.
4. Fastening the skid
E
Push the skid far enough over the rechargeable shears until the
skid retainer snaps in place.
5. Positioning wheels K

Replace batteries

L M N
1. Remove cover L
Place a coin in the cover slot and press in the direction of the
blade (1). Remove the cover from above (2).
2. Replace batteries M
Remove both plugs from the batteries (3); remove the batteries
from the shears. Place the new batteries in the shears and
connect the two plugs.
3. Fastening the cover N
Push the lid with the projection (4) under the edge of the shears
3 and then press the cover on the shears (5).
Note:
Please ensure that no cable protrudes from the shears when
fastening the cover!
G .
H (2) and
