White Balance

Press the MODE button and choose „bALA".
To select the desired color (R, G or B), please press the ENTER button.
The brightness (000-255, increasing) can be selected via the UP or DOWN button.
Please press the MODE button to attain the main menu.

DMX MODE

The Control Board allows you to assign the DMX fixture address, which is defined as the first channel from
which the LED PT- DMX Pixel Tube will respond to the controller.
Addressing
To set the Starting address, press the MODE button until the display shows „A.—".
You can now set the desired address via the UP or DOWN buttons.
Attention:
After switching on, the device will automatically detect whether DMX512 data is received or not. If data is
received, the display will show "d.001" with the actually set address and the red DMX indicator will blink. If
there is no data received at the DMX input, the display will show "d001" with the actually set address.
This situation can occur if:
- the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.
Controlling:
After having addressed the LED PT- DMX Pixel Tube, you may now start operating it via your lighting
controller. Every DMX-channel has a different occupation with different features.
Please see the following DMX protocol graphic for the respective channel values.

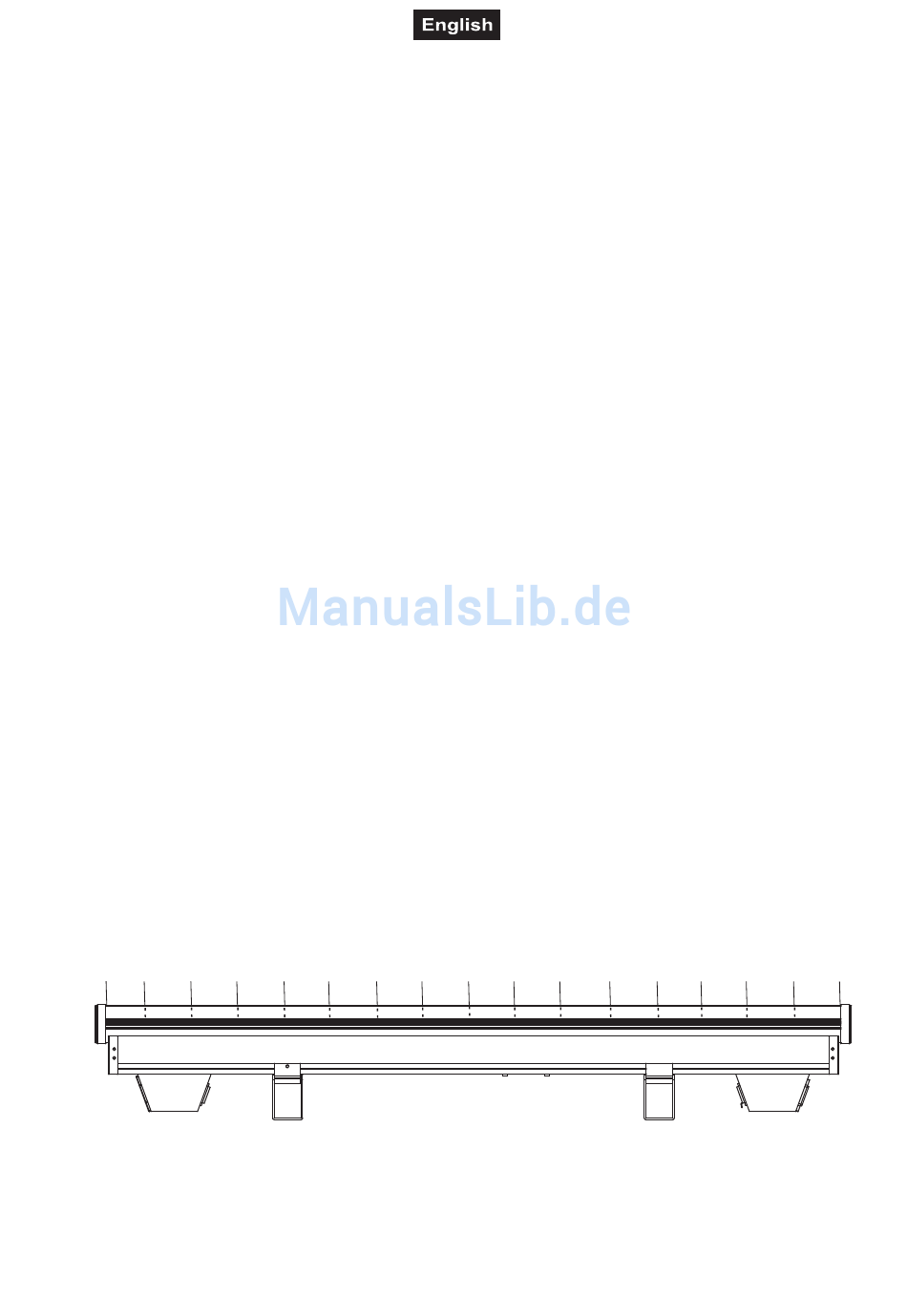

The LEDs of the device are separated into 16 pixels (see graphic), which can be individually controlled with
the following DMX-protocol.
The Pixel order is as follows:
Pixel: 16 15 13 10 9 8 6 5 3
14 12 11 7 4 2 1
out
in
