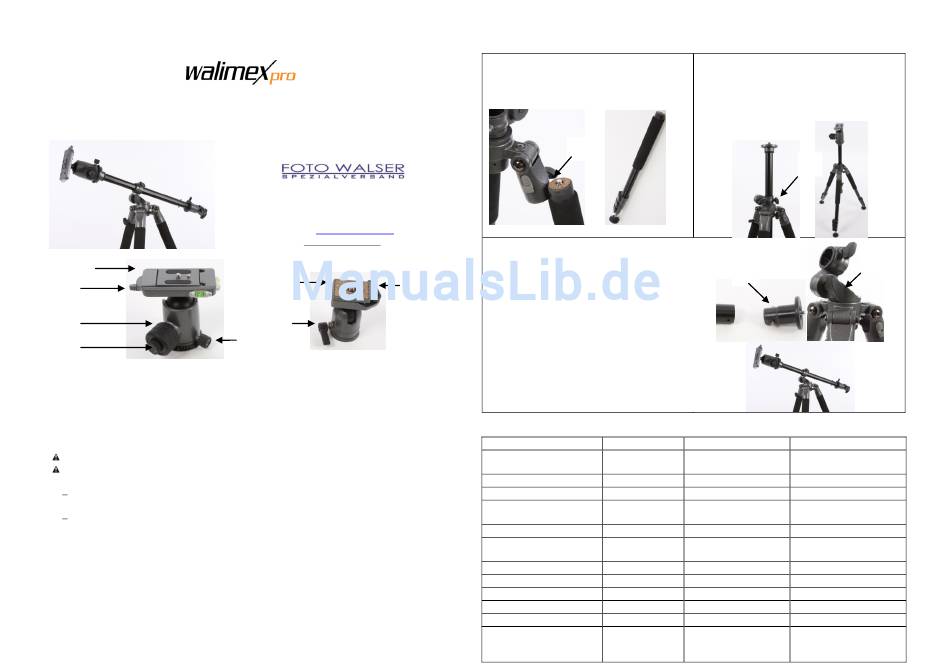

Copy of Instruction Manual
Multiflex + 2 Ball Heads
1
2
S
i
3
c
4
h
e
r
1 Quick-release plate – Mount the camera sturdily and securely on the quick-release plate.
2 Safety lever – Should snap into place with the camera when mounting the quick-release plate.
u
3 Fixing screw of ball.
n
4 Friction screw – For adjusting the smooth-running of the ball.
g
5 Friction screw – For adjusting the smooth-running of the horizontal adjustment.
s
Advice
h
Danger of damages through the falling down of the camera by the non-proper use of quick-release
e
plate and mounting of the ball head on the tripod.
Please always make sure, that the fastening screw is tightened firmly and that the safety lever
b
of the quick-release plate is snapped into place.
e
Please always make sure, that the ball head is screwed on the tripod securely and sturdily.
l
Chcek the thread before every use.
Included in delivery: 1x walimex pro Tripod Multiflex with flexible center column and individual
useable monopod, 2x Ball Heads with quick-release plates and 1/4 inch camera connection, 1x Allen
key, 1x convenient carrying bag
Gewerbering 26
86666 Burgheim
Tel. +49/84 32 / 9489-0
Fax: +49/84 32 / 9489 - 8333
eMail:
info@foto-walser.de
www.foto-walser.de
1
2
S
i
3
c
5
h
e
r
u
n
g
s
h
e
b
e
l
Use as monopod:
Open the butterfly screw (A) at the feet of the tripod
and remove the monopod. Afterwards, you can
mount the required head on the monopod.
A
Use with 2 ball heads:
Remove the center rod by pressing the 2 studs (C)
and extending the center rod. You can open the joint
with the butterfly screw (D) and adjust the required
angle. Afterwards, you can pull through the center
rod and tighten. You can mount the ball heads on
the left and right side of the fastened center column.
Tripod
Max. Height
approx. 191cm
Min. Height
approx. 25cm
Carrying Length
approx. 75cm
Length of the Center
approx. 36cm
Column
Angle of Center Column
approx. 120°
Max. Load Capacity
approx. 8kg
Weight
approx. 2230g
Monopod
Max. Height
approx. 154cm
Min. Height
approx. 52cm
Max. Load Capacity
approx. 8kg
Weight
approx. 515g
Use with one ball head:
You can adjust the height of the center column
through the butterfly screw (B).
B
D
C
Ball Head big
Dimensions
approx. 15x9,5x10cm
(LxWxH)
Connection
1/4 inch
Max. Load Capacity
approx. 6kg
Weight
approx. 600g
Ball Head small
Dimensions
approx. 13x6,5x6cm
(LxWxH)
Connection
1/4 inch
Max. Load Capacity
approx. 1,5kg
Weight
approx. 190g
Set
Total Weight
approx. 3020g
Material
scratch-resistant
magnesium and
aluminium alloy
