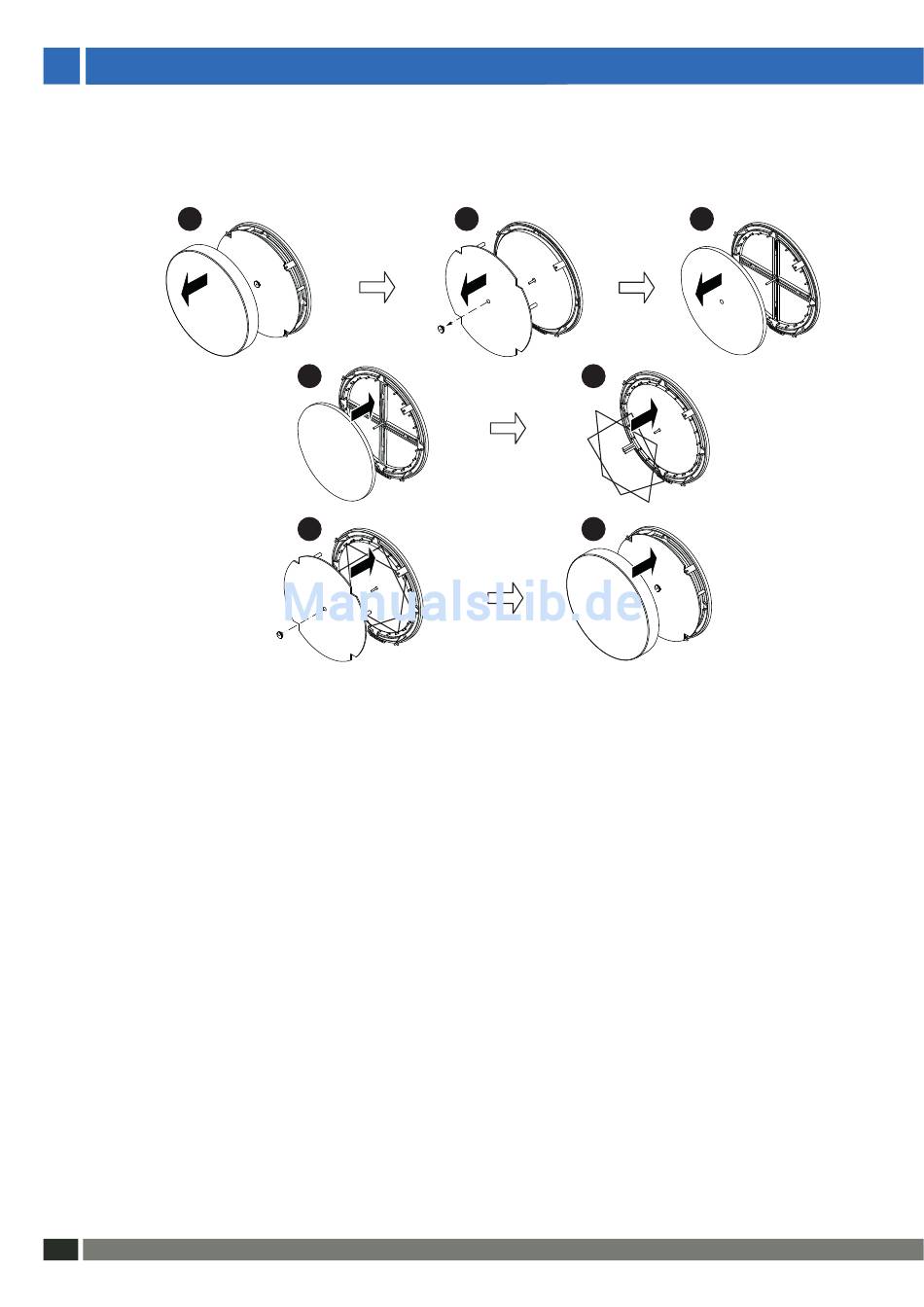

Mounting the • ne • lter type R-09
(round inner valve)
1
1 Prise open cover.
2 Loosen the knurled nut and remove the sound insulation insert.
3 Remove the dust • lter.
4 Insert the • ne • lter into the base plate. Ensure smooth surface of the • ne • lter
points towards the cover (towards the interior).
5 Secure the • ne • lter with two rubber bands via • xing tabs with a radial offset
of 45 degrees each.
6 Af• x sound insulation insert with the knurled nut.
7 Put the cover on the frame.
Dimensions (Dia.):
Standard delivery:
Part no.:
12 Pollen • lters • Installation instructions
2
4
6
240 mm
Set with 5 pcs. plus
10 rubber bands per set
1004-0065
3
5
7
