Mounting The • Ne • Lter Type V-09 (Square Inner Valve) - inVENTer R-09 Montageanleitung

Mounting the • ne • lter type V-09
(square inner valve)
1
3

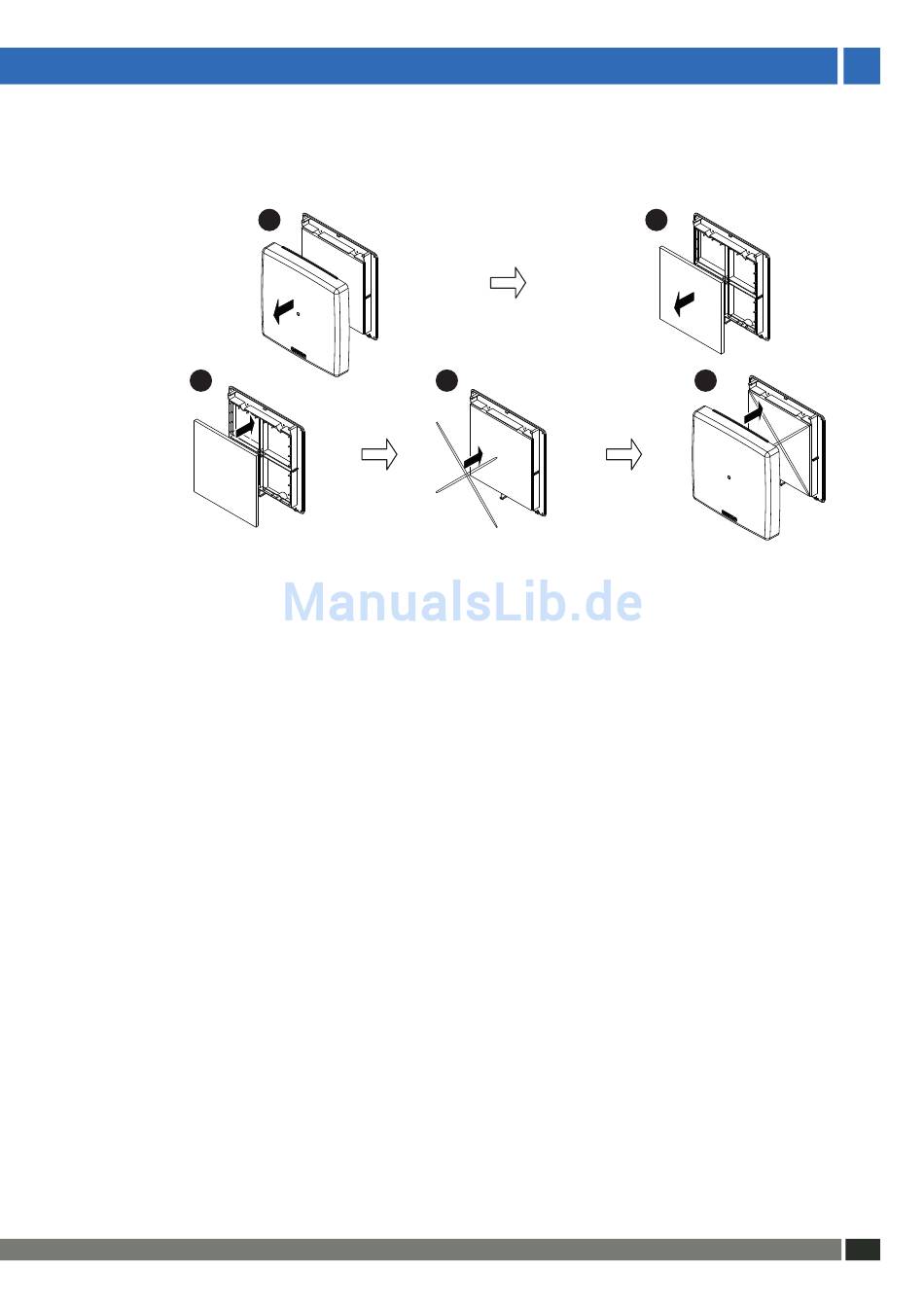

1 Prise open cover.
2 Remove the dust • lter.
3 Insert the • ne • lter into the base plate. Ensure smooth surface of the • ne • lter
points towards the cover (towards the interior)
4 Secure the • ne • lter crosswise with two rubber bands via the corner tabs.
5 Put the cover on the frame.
Dimensions (Width / height):
Standard delivery:
Part no.:
4
235 mm / 235 mm
Set with 5 pcs. plus
10 rubber bands per set
1004-0063
Pollen • lters • Installation instructions
BESCHREIBUNG
FINE FILTER TYPE V-09
