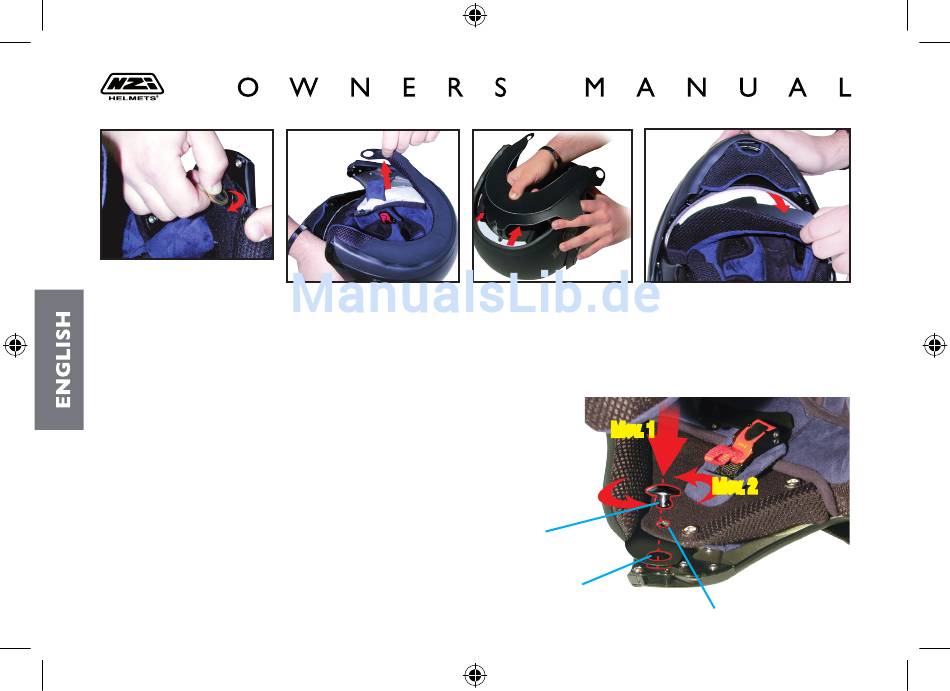

Assembly:
Insert the front part of the central comfort padding in its position first and then the rear part, the
neck protector. Fix the lateral parts of the neck comfort padding.
You have to align the holes on the outer shell, on the
lateral part of the neck protector (piece B, Fig.17) and
on the side protection padding (piece C, Fig.17). Insert
Mov. 1
the fixation screw through them (piece A, Fig.17) with
'Movement 1', as indicated in Fig.17. After this, turn Fig. 17
the screw 90º anticlockwise. (Mov.2, Fig.17)
Mov. 2
