Assembly and disassembly of the comfort padding.
Side cheek pads.
Disassembly:

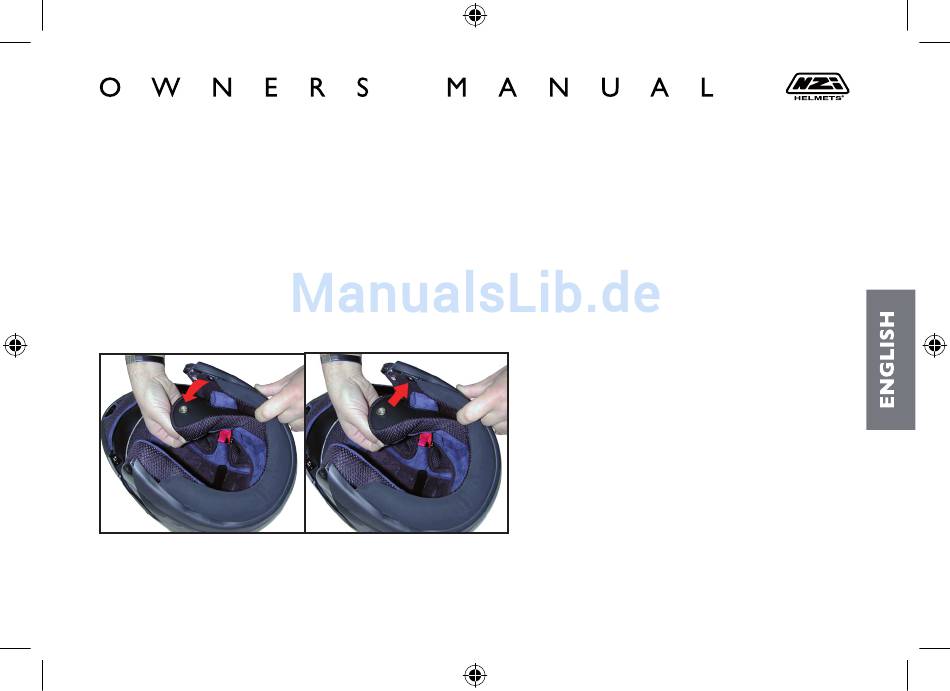

Pull out the cheek pad carefully until the press-studs are released. (Fig. 11)
Assembly:
Relocate the cheek pad and fixate it with the press-studs. (Fig.12)
Comfort padding change.
Disassembly:
Once you have disassembled the side cheek pads, take out the screw that fixes the cheek pad
support to the helmet (rotate it 90º clockwise. Fig.13), you can use a coin for this. Pull out the
Fig. 11
OWNERS MANUAL CONVERT III.indd 13
side protection padding carefully, so that
you can extract the neck comfort padding
Fig. 12
from its position (Fig.14). Repeat the
same operation on the other side of the
helmet. Pull out the central part of the
neck comfort padding carefully, so it gets
out of its position (Fig.15). To extract the
comfort padding completely, pull out
the front part carefully until it is completely
released from its position (Fig.16).
- 13 -
