compliance. Switch on the installation by pushing the "power" button (I). connections.
Use the blue lugs for the
end-of-stroke sensor and the
yellow lugs for the motor wires
whose sections are less than
6 mm2
Use the retractile sheath for the
motor wires whose sections
are more than 6 mm2
INFORMATION ON SWITCH BOX AN 1030
For information about the installation (electric connections and adjustments), refer to the instructions
1-Compatibility :
For PL 3200 motor, use an ATO 7.5 A fuse (automobile type).
For PL 2010 motor, use an ATO 4 A fuse (original fuse); for double motor, use an ATO 7.5 A fuse.
Incompatible with DL 1300 and DL3000 motors (mechanical end-of-strokes), use a switch box AN 1010.
2-Power supply 240 VAC :
Terminal board to the far right of the card (any other connections would lead to destruction)
Power indication: green (permanent) LED situated at the right of the card.
3-Forced mode : (red switch)
Sensor input inhibited
WARNING: using the forced mode means programming the end-of-stroke again.
4-LED signal "motor" sensor
check the connections and the sensor connections.
5-Auxiliary relay (to activate an electrolysis system or other)
Description: 3 A dry contact 30 VDC, with common contact (c) and de-energized (r) /energized (t) contacts.
Normal mode with shutter completely open : relay energized (t)
Normal mode with shutter in intermediate position or closed : relay de-energized ®
Forced mode, the relay is in the last direction of the key control :
opening direction: relay de-energized
closing direction: relay energized
Use the 4 holes at the 4 corners of the box (conical holes for screw centering).

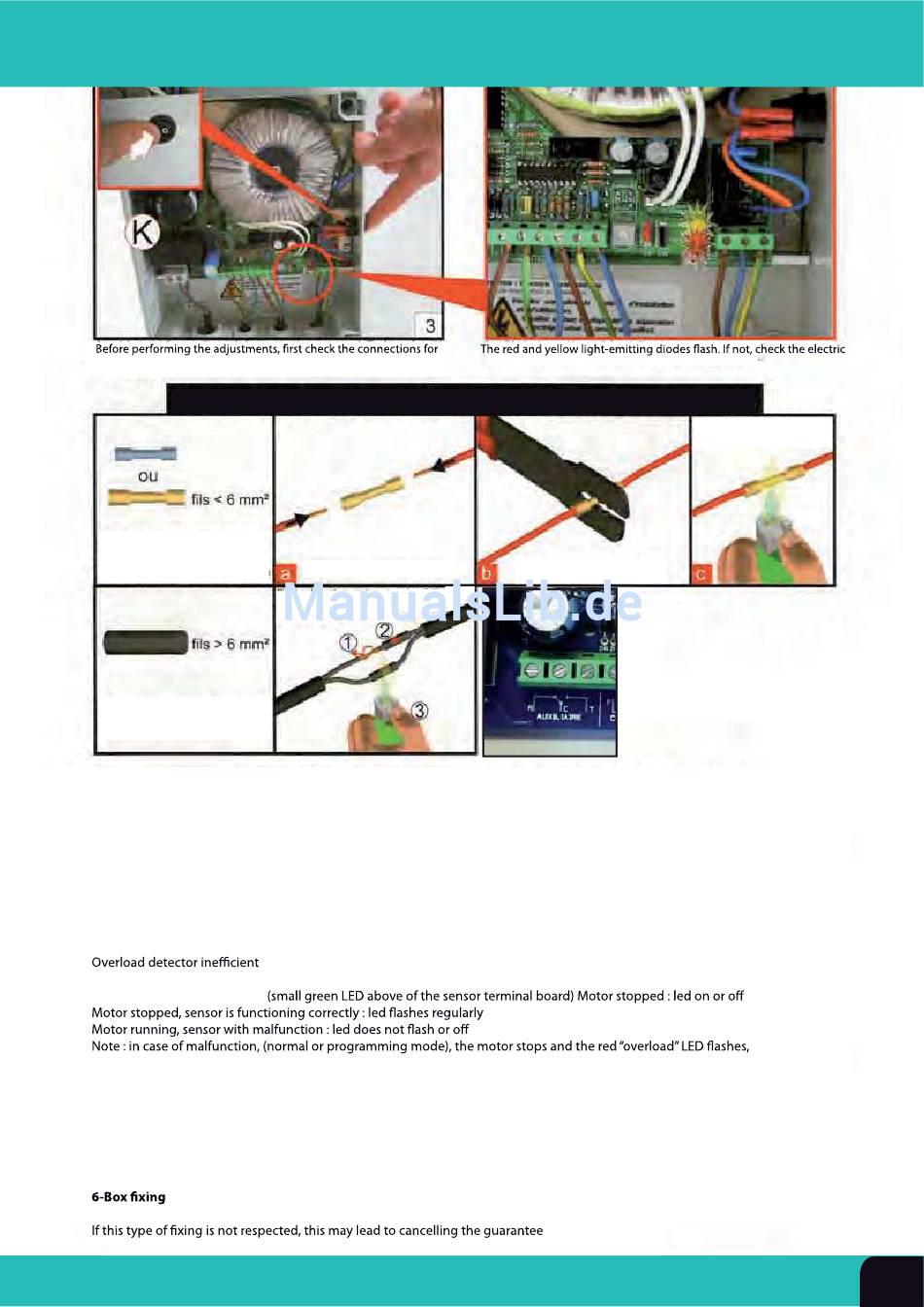

Fitting a retarctile sheath and anti-humidity lugs
Engage the wires in the lug
Place the sheath on the wires.
Then knot both wires together
before positioning
the sheath
on the wires.
Then heat it slightly.
Use crimping pliers to
immobilize the wires
Connecting to electrolysis unit
REPOS COMMUN TRAVAIL
heat it slightly
to make it water- tight
