height adjustment knobs. Do not tighten more
than finger tight.
c. The work support/stop (d) can also be installed
in the end cap (e) at the end of the extension
arms.
d. The length stop (o) may be rotated up to serve
as a length stop or hold the end of long work
pieces.
Adjustable Length Extension Arm
(fi g. 5)
To lengthen the support surface, turn the extension
arm lock lever (f) counterclockwise to release the
extendable extension arm (c). Pull the extendable
extension arm out to the desired length. Turn the
extension arm lock lever clockwise to lock.
DE7025 D WALT Mitre Saw Mounting
E
Method (fi g. 6, 7)
WARNING: To reduce the risk of
injury, turn unit off, disconnect
machine from power source before
assembling the mitre saw to the
mitre saw stand. An accidental start-
up can cause injury.
WARNING: Stability Hazard. You
must use the Universal Mitre Saw
Mounting Method when mounting
a mitre saw not manufactured by
D WALT to this mitre saw stand.
E
WARNING: To reduce the risk of
personal injury, be sure the mitre saw is
fully anchored on the stand.
WARNING: For your own safety,
read and understand the mitre saw
instruction manual before using. Failure
to heed these warnings may result in
personal injury and serious damage to
the mitre saw and the accessory.
1. Place saw in operational position with blade
facing you. Align with label on the mounting
bracket showing front.
2. Place a spacer under one side of the mitre saw
to hold the saw's mounting feet above the work
surface.
3. Hold a mounting bracket (b) under the saw and
feed a carriage bolt (hardware bag) up through
the bracket and the foot of the saw.
NOTE: See DE7025 Hardware Selection
Chart for the correct mounting hardware
procedures for D WALT mitre saws. Follow all
E
instructions properly, otherwise the mitre saw's
table rotation may be obstructed.
20

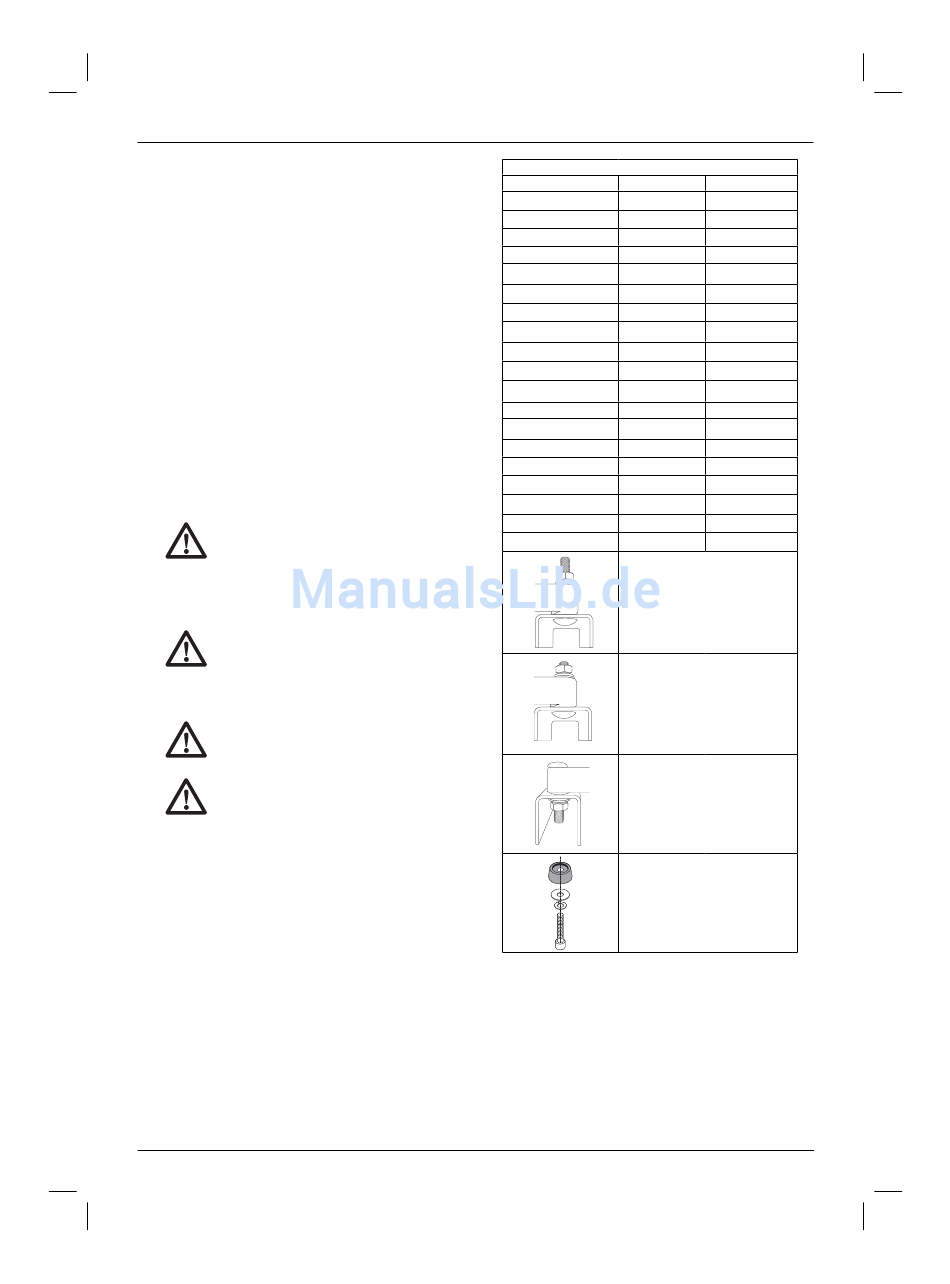

DE7025 HARDWARE SELECTION CHART
Left Side
DW703 1
DW705 1
DW706 1
DW708 1
DW712 1
DW713 1
DW715 1
DW716 1
DW717 2
DW718 3
DW700 4
DW701 Type 1 4
DW701 Type 2 1
DW707 Type 1 4
DW707 Type 2 1
DW711 Type 1 4
DW711 Type 2 1
DW771 1
DW777 1
1 = Long screw, head on
bottom
2 = Short screw, head on
bottom
3 = Long screw, head on
top
4 = Plastic pad and small
screw, head on bottom
4. Once the carriage bolt (hardware bag) is
installed per DE7025 Hardware Selection
Chart, assemble a flat washer, lock washer and
nut onto the bolt. Tighten the bolts finger tight.
5. Repeat procedure on the other end of the
bracket.
6. Move the spacer to the other side of the saw
to hold the other end of the saw up in order to
access the saw base.
Right Side
1
1
1
2
2
1
1
1
1
2
4
4
1
4
1
4
1
1
1
