Migatronic AUTOMIG Schnellanleitung Seite 4

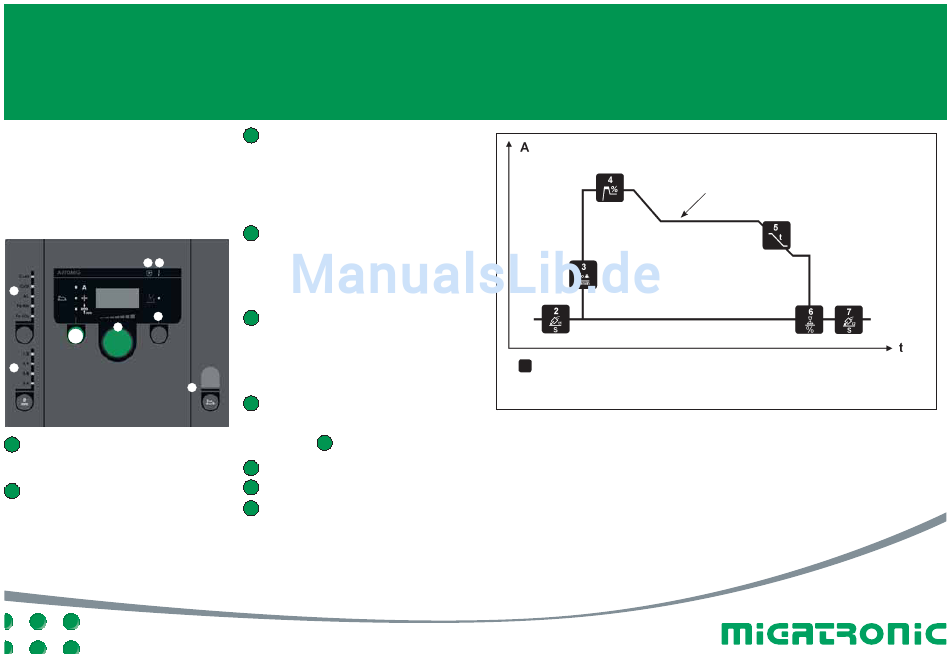

Automig control panel
I. Switch on the machine
II. Select type of material and
wire diameter
III. Set one of the following parameters:
welding current, wire feed speed or
thickness of material
IV. Trim the arc length, if required
A B
1
4
5
3/C
2
1 Selecting type of material
Press the key until the LED is lit at the
relevant material.
2 Selecting wire diameter
Press the key until the LED is lit at the
relevant wire diameter.
Reset function
Press and hold the key for 5 seconds.
Flashing LED indicates that the
relevant program is reset to factory
settings.
3 Primary parameters
Set one of the following primary
parameters at your own option and
according to relevance: welding
current, wire feed speed or thickness
of material; the parameters are closely
connected in the machine.
4 Arc length
The arc length can be adjusted as
required. Press the key under the
symbol and turn the control knob until
the desired arc length is achieved (-9.9
to +9.9).
5 Control knob
Adjustment of welding current, wire
feed speed, thickness of material and
arc length. If the key for secondary
parameters is active, it is possible to
trim the parameters lying behind.
6
6 Secondary parameters
Press the key until the desired
parameter is shown on the display.
Press key 3 briefly to finish.
A Welding voltage
B Warning – overheating
C Wire inching
Press the key and hold it down while
activating the torch trigger. Release
the key when wire inching starts. Wire
inching stops when the torch trigger is
deactivated.
QUICKGUIDE AUTOMIG
Hotstart (t)
Set welding current (A)
Soft start
(m/min.)
Gas pre flow (t)
1 Arc adjust (electronic choke)
See secondary parameters overleaf.
Slope down (t)
Gas post flow (t)
Burnback
