CONFIGURAZIONI e
CONFIGURATION and
KONFIGURATIONEN und
CONFIGURATIONS et
MONO
ACTIVE SPEAKER
OPERA
Balanced Input
D
PUSH
Sensitivity Limiter
+4dB Signal
0dB
Ready
-3dB
Flat
Link
Processed
DIGITAL ACTIVE SPEAKER
Line
Mic
Input-Link Input Sens
digital power
LINK
XOVER
OUT 1 OUT 2
LINK
XOVER
DSP SUB SETUP
SHAPE
PHASE
0°
180°
LIMITER
ON / SIGNAL
0dB
Stereo
0dB
MONO
Mono
BALANCED BALANCED
SUBWOOFER
INPUT 1 INPUT 2
SENSITIVITY
ACTIVE SUBWOOFER
MIXER
MIXER
21

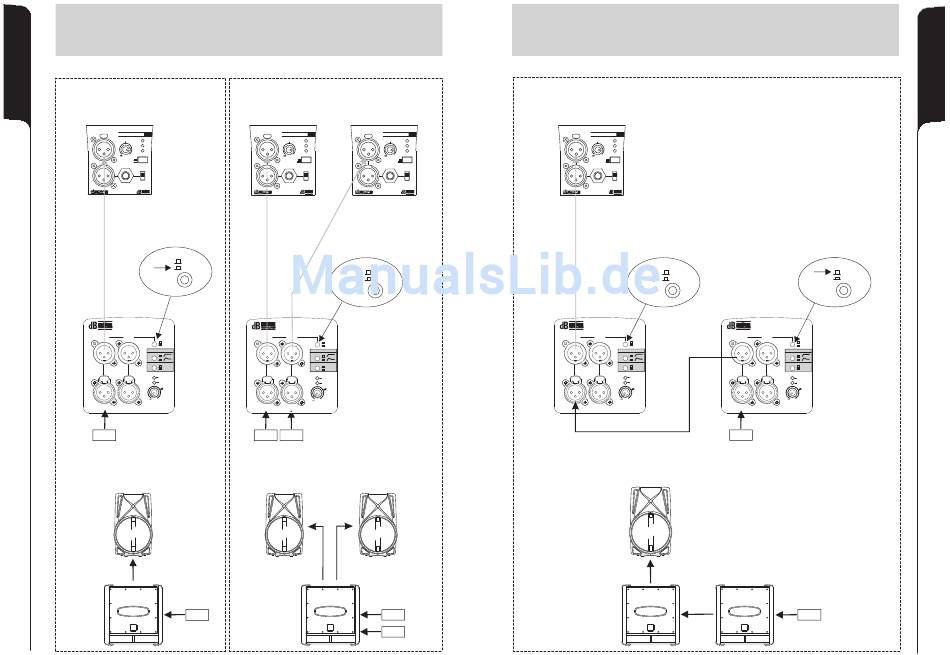

COLLEGAMENTI
CABLE CONNECTIONS
VERKABELUNG
CABLAGE
STEREO
ACTIVE SPEAKER ACTIVE SPEAKER
OPERA OPERA
Balanced Input Balanced Input
D D
PUSH PUSH
Sensitivity Limiter Sensitivity Limiter
+4dB Signal +4dB Signal
0dB 0dB
Ready Ready
-3dB -3dB
Link Flat Link Flat
Processed Processed
DIGITAL ACTIVE SPEAKER DIGITAL ACTIVE SPEAKER
Line Line
Mic Mic
Input-Link Input-Link
Input Sens Input Sens
digital power digital power
LINK
XOVER
OUT 1 OUT 2
LINK
XOVER
DSP SUB SETUP
SHAPE
PHASE
0°
180°
LIMITER
ON / SIGNAL
0dB
Stereo
0dB
MONO
Mono
BALANCED BALANCED SUBWOOFER
INPUT 1 INPUT 2 SENSITIVITY
ACTIVE SUBWOOFER
MIXER MIXER
MIXER
MIXER
CONFIGURAZIONI e COLLEGAMENTI
CONFIGURATION and CABLE CONNECTIONS
KONFIGURATIONEN und VERKABELUNG
CONFIGURATIONS et CABLAGE
LINK
ACTIVE SPEAKER
OPERA
Balanced Input
D
PUSH
Sensitivity Limiter
+4dB Signal
0dB
Ready
-3dB
Link Flat
Processed
DIGITAL ACTIVE SPEAKER
Line
Mic
Input-Link
Input Sens
digital power
LINK
XOVER
OUT 1 OUT 2
LINK
XOVER
DSP SUB SETUP
SHAPE
PHASE
0°
180°
LIMITER
ON / SIGNAL
0dB
Stereo
0dB
MONO MONO
Mono
BALANCED BALANCED
SUBWOOFER
INPUT 1
INPUT 2 SENSITIVITY
MIXER
ACTIVE SUBWOOFER
LINK
XOVER
OUT 1 OUT 2
LINK
XOVER
DSP SUB SETUP
SHAPE
PHASE
0°
180°
LIMITER
ON / SIGNAL
0dB
Stereo
0dB
Mono
BALANCED BALANCED
SUBWOOFER
INPUT 1
INPUT 2 SENSITIVITY
MIXER
