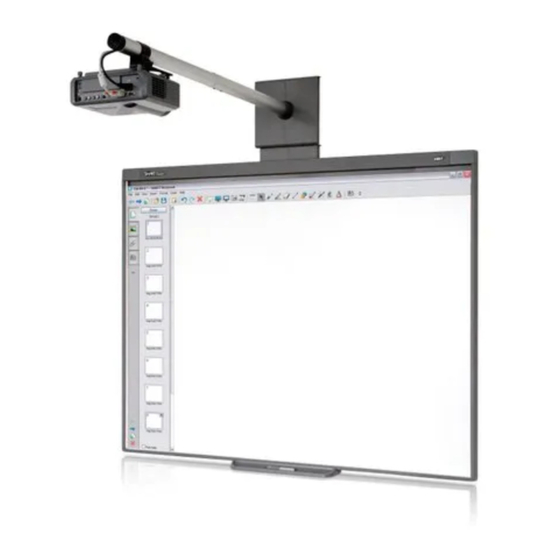

- Seite 1 SMART Board® 480i5 interactive whiteboard system For cautions, warnings and other important product information, see Important Information for SMART Board® 480i5 series interactive whiteboard system users (smarttech.com/kb/131396).
- Seite 2 1017242 Rev 01...
- Seite 3 In the event that you need to install your SMART product on reinforced concrete walls, walls with plaster lath finishing, walls of unusual construction or other types of walls, refer to your local building authority for instructions , recommen- dations, and safe work practices.
- Seite 4 Au cas où vous deviez installer votre produit SMART sur un mur en béton armé, sur un mur de lattis, sur un mur de structure inhabituelle ou un autre type de mur, consultez votre service de l'urbanisme pour qu'il vous fournisse des instructions, des recommandations et vous dise comment travailler en toute sécurité.
- Seite 5 În cazul în care aveţi nevoie să instalaţi produsul SMART pe pereţi din beton armat, pereţi cu finisaj din scândură şi ipsos, pereţi de tip neobişnuit sau alte tipuri de pereţi, consultaţi autoritatea locală pentru construcţii pentru instrucţiuni, recomandări şi moduri de lucru sigure.
-
Seite 6: Smart Board 480 Interactive Whiteboard
SMART Board 480 interactive whiteboard ×2 ×2 SMART Board ™ V480 Interactive Whiteboard 77” (195.6 cm) 50 1/4” 63 3/16” (127.2 cm) (160.5 cm) ×5 ×5 00 0/0” (000 cm) 80 5/8” 1/2" (13 mm) 1/4" (6 mm) 1 3/4"... - Seite 7 SMART UF75 or SMART UF75w projector " " 94” " 77” 87” " 64” CR-2025 Vol. UF75 u (×7) g (×2) h (×2) n (×7) r (×7) s (×7) t (×3) k (×1) m (×2) 1017242 Rev 01...
- Seite 8 ×2 6 mm (1/4") 13 mm (1/2") 10 mm 5 mm HDMI RJ-45 RS-232 Composite 3.5 mm S-Video Video 3.5 mm 3.5 mm y (×7) z (×7) 10-24 × 2" w (×7) #10 × 2" 1017242 Rev 01...
- Seite 9 1017242 Rev 01...
- Seite 10 94” 77” 87” 64” All of the lines that you draw to install the SB480 must be straight and level on a plumb wall. You must install the unit straight, level and plumb for it to operate properly. SB480 Усе лініі, якія праводзяцца для ўстаноўкі SB480, павінны быць прамыми і выраўненымі вертыкальна па адвесу. Для...
- Seite 11 Toutes les lignes que vous tracez pour installer le SB480 doivent être droites et horizontales sur un mur vertical. Vous devez installer l'unité bien droite et d'aplomb pour qu'elle fonctionne correctement. A SB480 telepítéséhez használt összes sornak egyenesnek kell lennie és egy síkban kell lennie függõleges fallal. Az egységet egyenesen, egy síkban és függõlegesen kell felszerelnie a megfelelõ...
- Seite 12 ≥ 114.3 cm (45”) ≥ 101.6 cm (40”) interactive whiteboard interactive whiteboard 204.8 cm (80 5/8") 1017242 Rev 01...
- Seite 13 34" ANSI-E 841 mm 44" 1189 mm 1017242 Rev 01...
- Seite 14 13 mm (1/2") u (×4) t (×1) 6 mm (1/4") 13 mm (1/2") u (×7) 1017242 Rev 01...
- Seite 15 If you have a metal stud wall, drill the holes twice according to these instructions. .ﺕﺍﺩﺍﺵﺭﺇﻝﺍ ﻩﺫﻩﻝ ﺍًﻕﻑﻭ ﻥﻱﺕﺭﻡ ﺕﺍﺡﺕﻑﻝﺍ ﺭﻑﺡﺏ ﻡﻕﻑ ،ﺓﻱﻥﺩﻉﻡ ﺕﺍﻡﺍﻉﺩ ﻭﺫ ﻁﺉﺍﺡ ﻙﻱﺩﻝ ﻥﺍﺁ ﺍﺫﺇ Jestliže máte kovové příčky, vyvrtejte otvory dvakrát podle těchto pokynů. Hvis du har en væg med metalstolper, skal der bores huller, som er dobbelt så store som angivet i disse instruktioner. Wenn Sie über eine Metallständerwand verfügen, bohren Sie die Löcher gemäß...
- Seite 16 45 mm (1 3/4") 6 mm (1/4") b (×7) r (×3) s (×2) s (×3) 1017242 Rev 01...
- Seite 17 94” 77” 87” 64” " " " " 1017242 Rev 01...
- Seite 18 6 mm (1/4") s (×2) r (×4) t (×2) s (×4) 1017242 Rev 01...
- Seite 19 1017242 Rev 01...
- Seite 20 " " " " g (×2) " " " " 1017242 Rev 01...
- Seite 21 k (×1) 1017242 Rev 01...
- Seite 22 1017242 Rev 01...
- Seite 23 1017242 Rev 01...
- Seite 24 45mm (1 3/4") (1/4") b (×5) a (×5) 1017242 Rev 01...
- Seite 25 6 mm (1/4″) + 13 mm (1/2″) 6 mm (1/4″) + 13 mm (1/2″) 13 mm (1/2″) 13 mm (1/2″) w (×5) z (×5) z (×5) w (×5) 1017242 Rev 01...
- Seite 26 13 mm (1/2″) 13 mm (1/2″) y (×1) w (×5) z (×5) z (×5) w (×5) 1017242 Rev 01...
- Seite 27 4× 1017242 Rev 01...
- Seite 28 1017242 Rev 01...
- Seite 29 1017242 Rev 01...
- Seite 30 Service Control DC 5V 2A Control Panel VGA 2 VGA 1 VGA Out Network HDM1 S-Video Composite Video RS-232 Composite HDMI S-Video RJ-45 3.5 mm Video 3.5 mm 3.5 mm 1017242 Rev 01...
- Seite 31 1017242 Rev 01...
- Seite 32 1017242 Rev 01...
- Seite 33 1017242 Rev 01...
- Seite 34 1017242 Rev 01...
- Seite 35 c (×2) 1017242 Rev 01...
- Seite 36 2× 2× 1017242 Rev 01...
- Seite 37 2× 6 mm (1/4") 45 mm (1 3/4") 6 mm (1/4") + 13 mm (1/2") 13 mm (1/2") 13 mm (1/2") 1017242 Rev 01...
- Seite 38 b (×2) w (×2) y (×2) z (×2) a (×2) 1017242 Rev 01...
- Seite 39 1017242 Rev 01...
- Seite 40 Input Input Menu Menu Hide Hide Display Display Mode Mode Mute Mute 1017242 Rev 01...
- Seite 41 1017242 Rev 01...
- Seite 42 1017242 Rev 01...
- Seite 43 1017242 Rev 01...
- Seite 44 1017242 Rev 01...
- Seite 45 2× m (×2) 2× 1017242 Rev 01...
- Seite 46 RS-232 3.5 mm 3.5 mm 3.5 mm RJ-45 HDMI Composite S-Video Video SMART Board™ 600i5 interactive whiteboard system smarttech.com/kb/156697 1017242 Rev 01...
- Seite 47 1017242 Rev 01...
-
Seite 48: Packaging
Batteries are regulated in many countries. Check with your reseller to find out how to recycle used batteries. There are special regulations that must be met when shipping a product that has a lithium ion battery packaged with the product or shipping a lithium ion battery. When returning a SMART...
