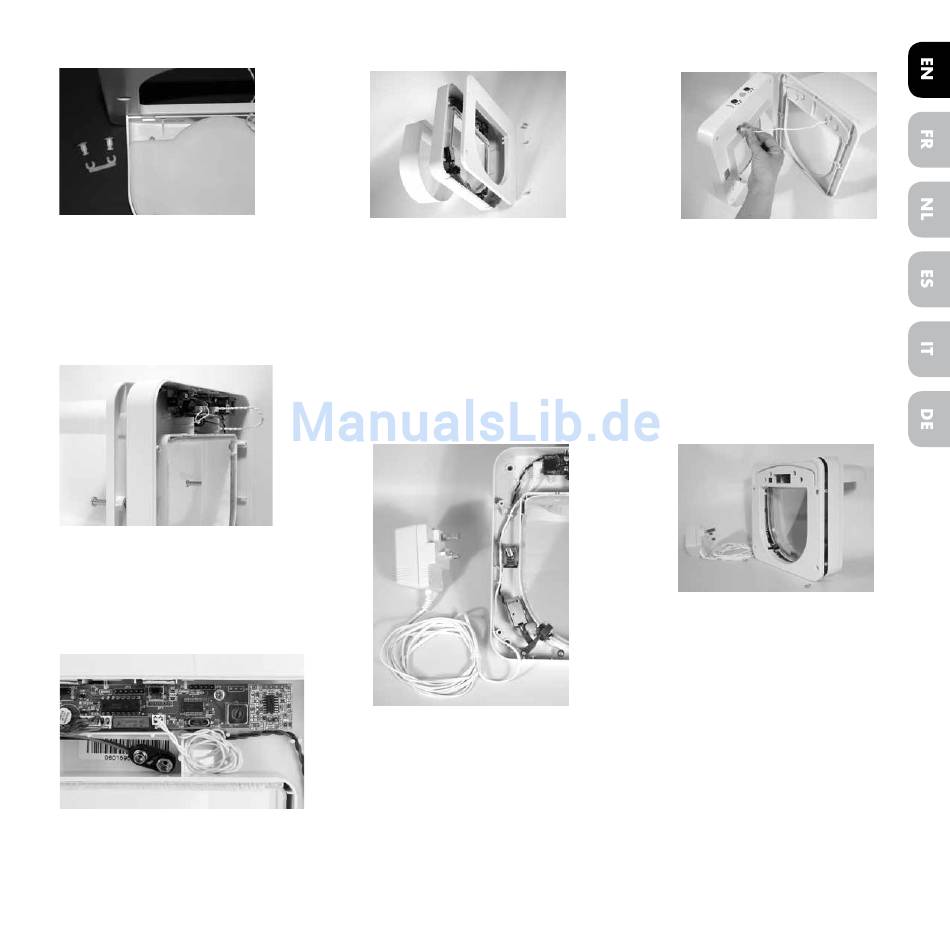

Fig. 3
Attach the "horseshoe" clips to the four
"mushrooms" pins on the underside of
the porch.
Fig. 6a
Temporarily attach the porch and
exterior section to the interior section
with the two M6 screws.
Fig. 6b
Attach the porch cable to the electronics
board as shown. Any excess cable must
be routed to the right of the battery
compartment.
Fig. 4
Remove the extension tunnel from
the interior section. Loosen the four
self-tapping fixing screws from the
interior section and remove the
large cover plate.
Fig. 7
Attach the low voltage power
supply connector to the electronics
board and pass the power cable
through the clips and out the
opening at the bottom of the
interior section.
Replacement flaps available online
Fig. 5
Pass the porch cable from the porch
and exterior section through the
rectangular opening in the interior
section.
Fig. 8
Replace the large cover plate to
the interior section and temporarily
secure with the four self-tapping
fixing screws.
