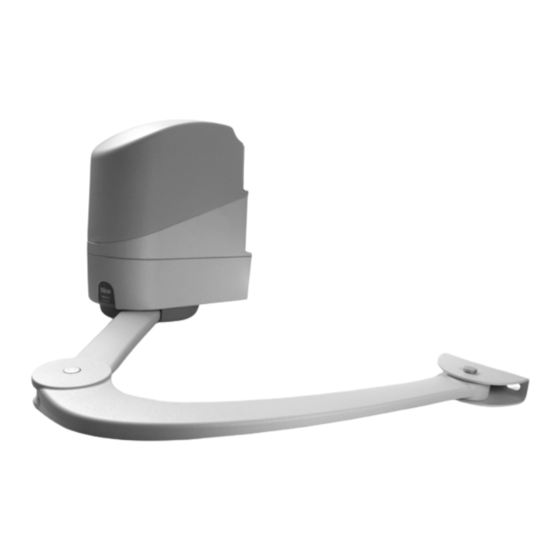

Nice PP7024 Handbuch

Pop
Table of contents:
1 Product description
2 Installation
2.1 Preliminary checks
2.2 Typical system
2.3 Mounting
2.4 Mounting the motor bracket to the pillar
2.5 Assembly of the straight arm
2.6 Mounting the gearmotor
2.7 Assembling the curved arm and mounting
the adjustable bracket to the leaf
2.8 Releasing the gearmotor from the inside
2.8.1 Releasing the gearmotor from the outside (optional) 3
2.9 Securing the opening stop
2.10 Electrical connections
2.11 Connection to the power supply
2.12 Using buffer batteries (optional)
Warnings
Read these instructions before proceeding with the installation, as they
provide important information regarding safety, installation, use and
maintenance.
In order to make the use of these instructions as simple as possible, we
have tried to follow the same order as the various phases of installation.
Anything which is not specified in these instructions is not allowed, any
unspecified use may damage the product and place people and objects
in danger.
Nice disclaims any liability for the non-observance of good practice in the
manufaturing of the gates, as well as any buckling which may occur dur-
ing use. Store this manual safely for future use
This manual, as well as the design and manufacture of the devices that
make up POP, comply fully with the standards and regulations in force
Considering the hazards that may exist during the installation and oper-
ation of POP, it is necessary that also the installation be carried out in
strict compliance with current legislation, standards and regulations, par-
ticularly:
• Before you start with the installation, check whether additional devices
or materials are needed to complete the automation with POP based
on the specific application requirements.
• The automation system must not be used until it has been commis-
sioned as described in paragraph "Commissioning".
• The packing materials must be disposed of in compliance with local
regulations.
• Do not make modifications to any components unless provided for in
this manual. This type of operations will only cause malfunctions. NICE
disclaims any liability for damage resulting from modified products.
page
2 3 Manual or release manoeuvre
2 4 Testing and commissioning
2 4.1 Testing
2
2 5 Maintenance
3 5.1 Disposal
3
3 6 Technical characteristics
3
7 Accessories
3
Instructions and warnings for users of
3 the POP gearmotor
3
3
3
• Do not immerse the automation parts in water or any other liquid. Dur-
ing installation, ensure that liquids do not leak into the control unit or
other open devices.
• In the event that liquid substances have penetrated inside the automa-
tion devices, immediately disconnect the power supply and contact
the NICE customer service department. The use of POP in these con-
ditions can be dangerous.
• Keep all components of POP away from heat sources and open
flames; these could damage the components and cause malfunctions,
fire or dangerous situations.
• During long periods of inactivity, the optional battery should be
removed and stored in a dry location to prevent leakage of noxious
substances.
• Connect the control unit only to a power supply line equipped with
safety grounding system.
• All operations requiring the opening of the shells of POP device must
be performed with the control unit disconnected from the power sup-
ply; if the disconnection device is not identifiable, post the following
sign on it: "WARNING: MAINTENANCE WORK IN PROGRESS".
• In the event that any automatic switches or fuses are tripped, you must
identify the failure and eliminate it before you reset them.
• If a failure occurs that cannot be solved using the information provid-
ed in this manual, refer to the NICE customer service department.
GB
page
3
4
4
4
4
4
4
5
1
