Display; Function Keys - PCE Instruments PCE-IR 6 Bedienungsanleitung

„Set" button
1.
„ESC" button
2.
„Up" button
3.
„Down" button
4.
„Mode" button
5.
6. LCD
7. Sensor connection
8. Laser button
9. Laser beam output
10. IR sensor
11. 12...24 V DC input
12. Relay output
13. 230 V AC input
14. Sensor connection
15. Relay output
3.2

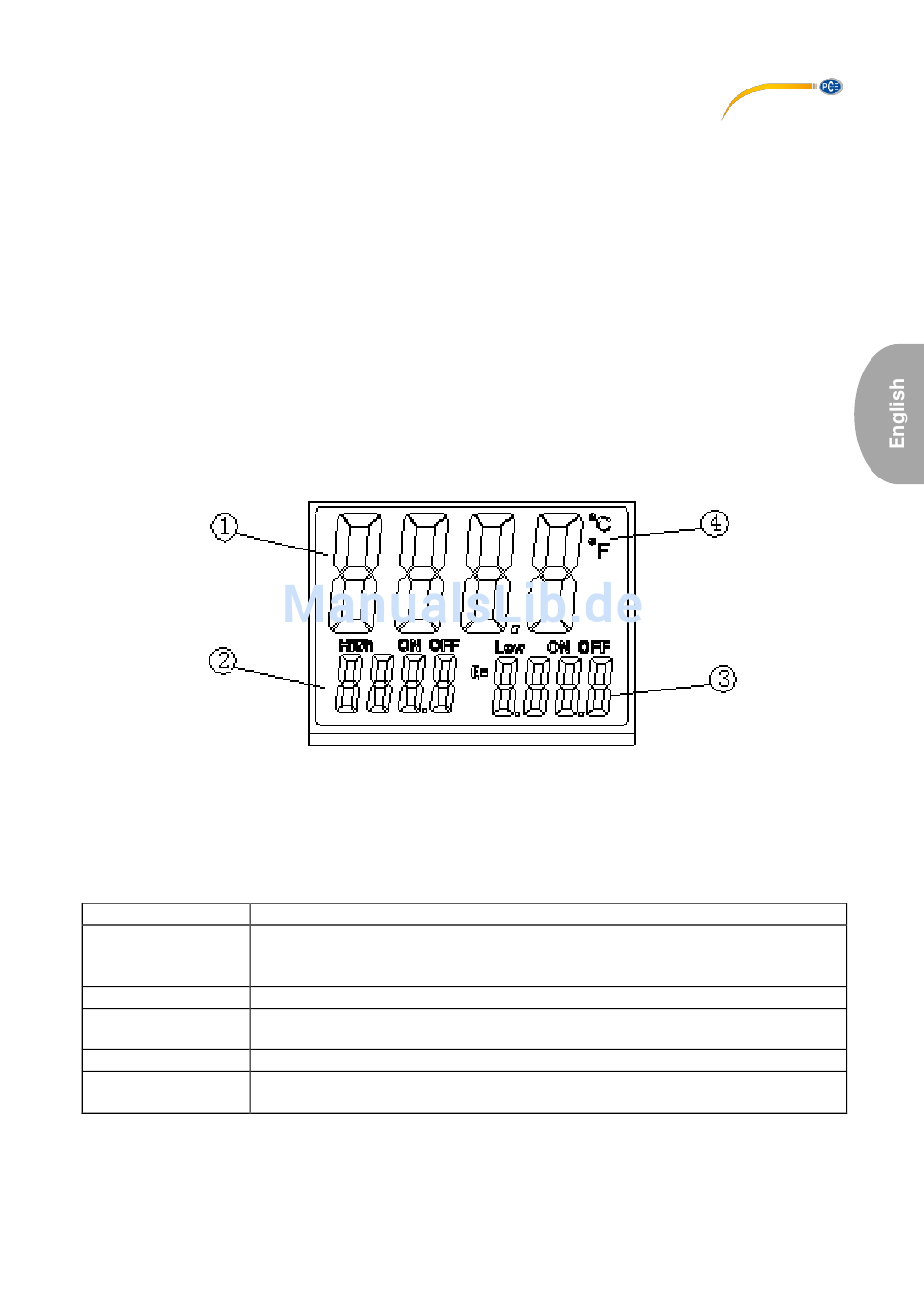

Display

1. Current temperature value
2. Threshold value for activation of heating/cooling mode
3. Threshold value for deactivation of heating/cooling mode
4. Measuring unit
3.3

Function keys

Name Function
„Set" button Use the „Set" button, to adjust the emissivity, the measuring unit and the
threshold levels for the heating/cooling mode. Each time you press the
"Set" button, you get to the next setting..
„Esc" button Press the "ESC" button to return to normal measuring mode at any time.
„Up" button
In the settings, this button is used t increase a value.
In measuring mode, this button activates the display backlight.
„Down" button
In the settings, this button is used for decreasing a value.
„Mode" button
In measuring mode, this button is used for switching between heating
and cooling mode.
