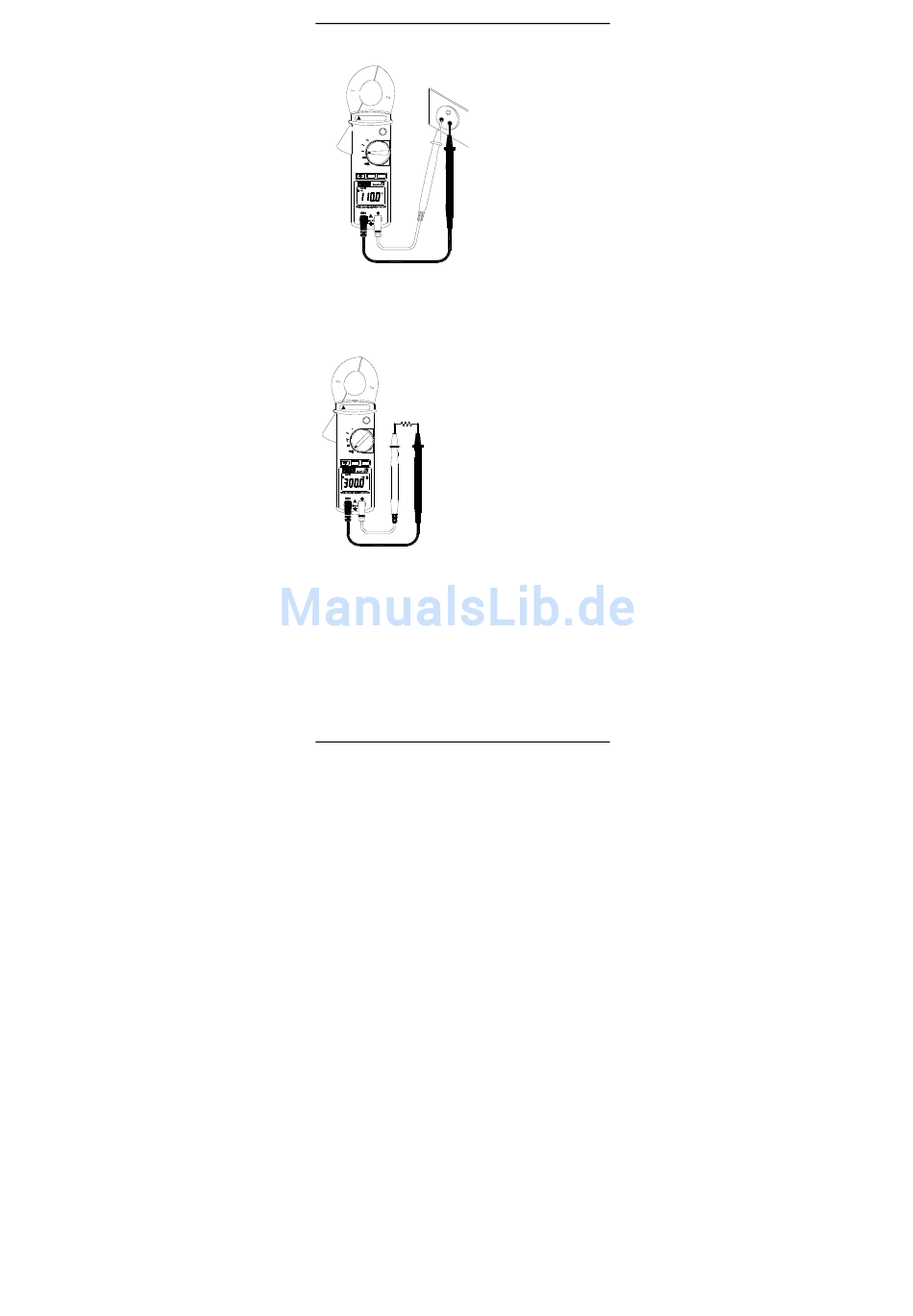

4.3. AC and DC voltage measurements

Set the switch to V~ for
an AC voltage
measurement and to V=
for a DC voltage
measurement.
600V CAT III 100A
Connect the red test
Press 2 Sec
HOLD
50 / 60Hz
OFF
A
cord to the "+" input
mA
V
terminal and the black
V
Hz
test cord to the "COM"
PEAK ZERO
input terminal.
Then place the probe
600V
tips in contact with the
points where the AC
voltage is to be
measured.
Read the result on the
display unit.

4.4. Resistance measurement

Set the switch to Ω.
Connect the red test cord to
the "+" input terminal and the
black test cord to the "COM"
input terminal.
600V CAT III 100A
Place the probe tips in contact
Press 2 Sec
HOLD
50 / 60Hz
OFF
with the points to be measured
A
mA
and read the result on the
V
Hz display unit.
PEAK ZERO
Note: Before making a
measurement on a circuit,
600V
check that it is Off and that
ANY capacitors are
discharged.
28
