5.1 Transducer Type

The VD6 is configurable for operating the following vacuum transducers:
Typ1: VSC42MA4, VSC43MA4, 1400-1 mbar
Typ3: VSP52MA4, VSP53MA4, 100-1x10
Typ7: VCC200MA4, 200-0,1 mbar
Typ9: VSP63MA4, 1000-1x10

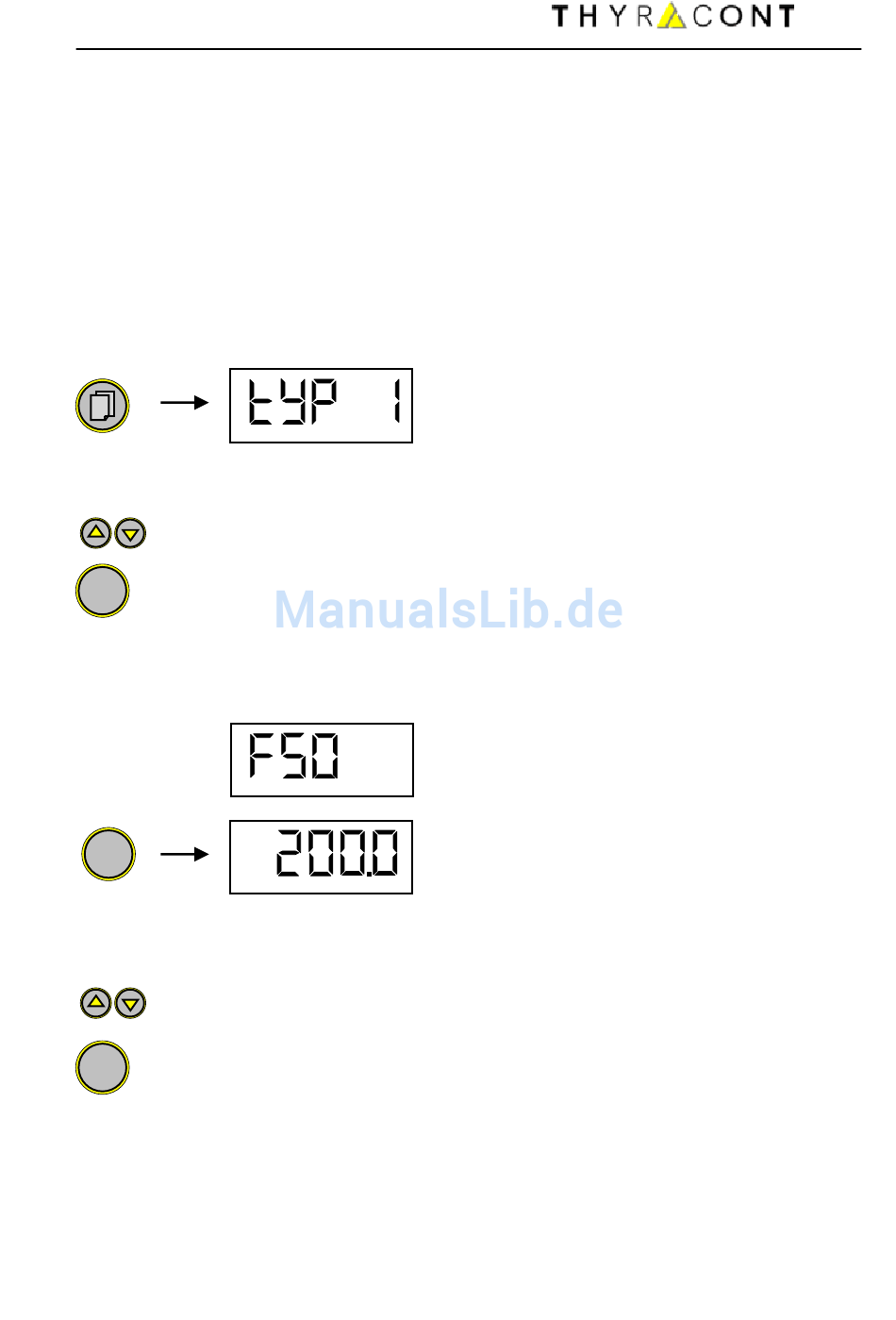

To select the transducer type switch the VD6 into configuration mode as
described in chapter 5, so that the display shows "typ ..".
The currently selected transducer type is displayed.
Select the required type by means of the "Up" and "Down" keys.
Confirm with "Set" key.
set
If transducer type 7 has been chosen, the scale end "FSO" of the transducer has
to be selected in the next step:
set
The actually selected pressure scale end is displayed.
Select the appropriate scale end of the connected transducer by means
of the "Up" and "Down" keys.
Confirm with "Set" key.
set
The display then shows the next configuration point. In order to return to meas-
urement mode quit all further configuration points by pressing the menu key.
-3 mbar
-4 mbar
