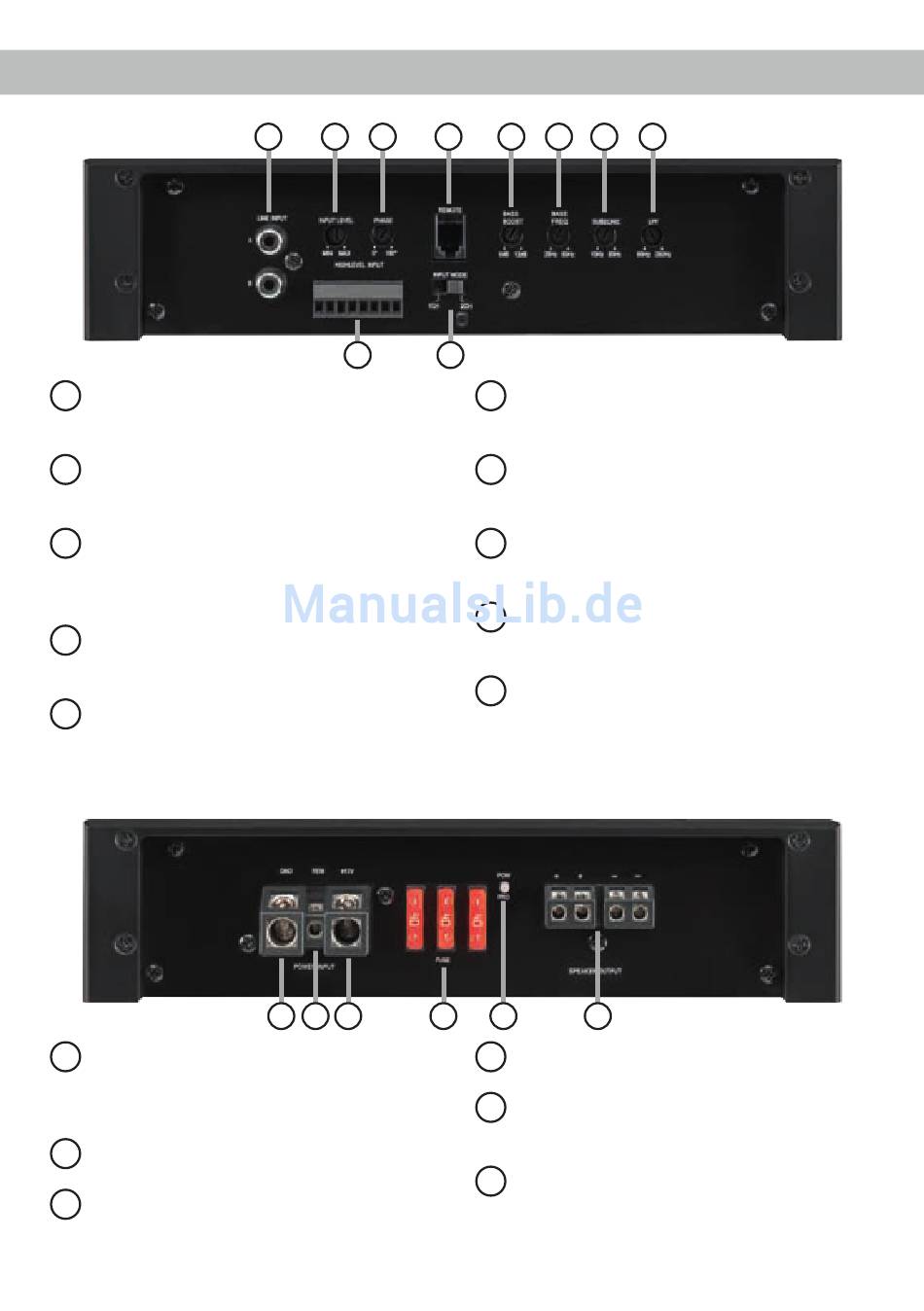

Connectors and control units
Line Input
1
RCA inputs for connecting pre-amplifier
signals.
Input Level
2
Control for adjusting the input sensitivity of
the Line and Highlevel Inputs.
.
Highlevel Input
3
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
pre-amp / line outputs.
Phase
4
Control for adjusting the phase from 0° to
180°.
Remote
5
Input for connecting the included cable
remote control for volume adjustment.
GND
11
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle).
REM
12
Connector for the remote cable.
+12 V
13
Connector for the +12 V power cable of the
positive terminal of the battery.
12
1
2
4
3
11 12
13
14
5
7
8
9
6
Input Mode
6
Switch to route input signals to respective
amplifier channels.
Bass Boost
7
Control for adjusting the bass boost from 0 to
12 dB.
Bass Freq
8
Control for adjusting the center frequency of
the Bass Boost from 25 to 50 Hz.
Subsonic
9
Control for adjusting the subsonic filter from
10 to 50 Hz.
LPF
10
Control for adjusting the lowpass filter from
50 to 250 Hz.
15
16
Fuse
14
Input fuses - 3 x 40 Ampere.
Power & Protect LED
15
This LED indicates the operating mode of the
amplifier.
Output Channel
16
Speaker outputs for connecting subwoofers.
10
