Snap ferrite
Install the snap ferrite near the device to achieve optimum
interference suppression. To this end, place the positive and
negative cables of the 12 V connections into the open ferrite,
close the snap ferrite and apply pressure until the lock en-
gages. Secure the snap ferrite using cable bands in front and
behind the ferrite.
1
2
3
4
5
1 Cage tension spring clamps
2 Negative charger cable blue
4
3 Positive charger cable red
4 Cable bands
5 Snap ferrite

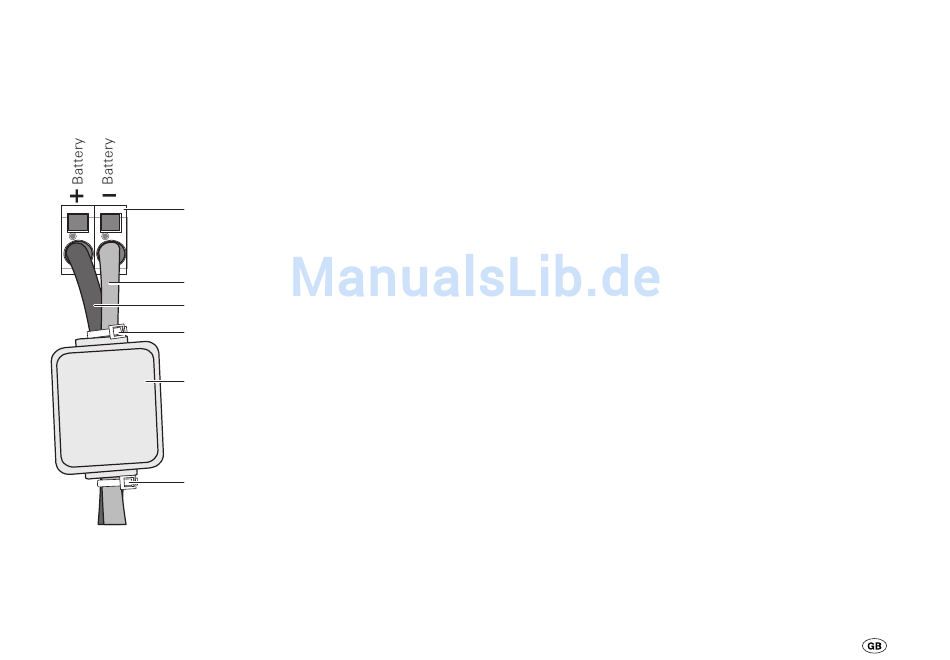

Fig. 3: Snap ferrite
Temperature sensor
If you use a temperature sensor for the battery, adhere the
temperature sensor to the face side of the battery. To do this,
remove the protective film from the self-adhesive point of
the temperature sensor and press it firmly onto the desired
position of the battery (see Temperature sensor description).
Connect the cable from the temperature sensor to the tem-
perature sensor connection of the device (2-pin connection).
Battery type changeover switch
Set the battery type (liquid electrolyte or Gel / AGM) of your
battery on the battery switchover.
Main supply connection
Connect the main power cable of your boat, camper or cara-
van. Green/yellow cable to the protective earth!
– Check all connections are tight.
– Finally, connect to the mains using the 230 V cold device
plug of the power cable.
