Temperature
Ambient temperature from -25 °C to +35 °C.
During operation, the casing may heat up to around 75 °C.
Cooling
By convection
Configuration
In accordance with the VDE provisions and the device
safety law.
Use
To charge the batteries with 12 V rated voltage and a capacity
of 50 – 160 Ah.

Dimensions / weight

Casing
Aluminum, painted, ventilated
Length
220 mm
Width
210 mm (without feet)
Height
90 mm
Weight
1.3 kg
20

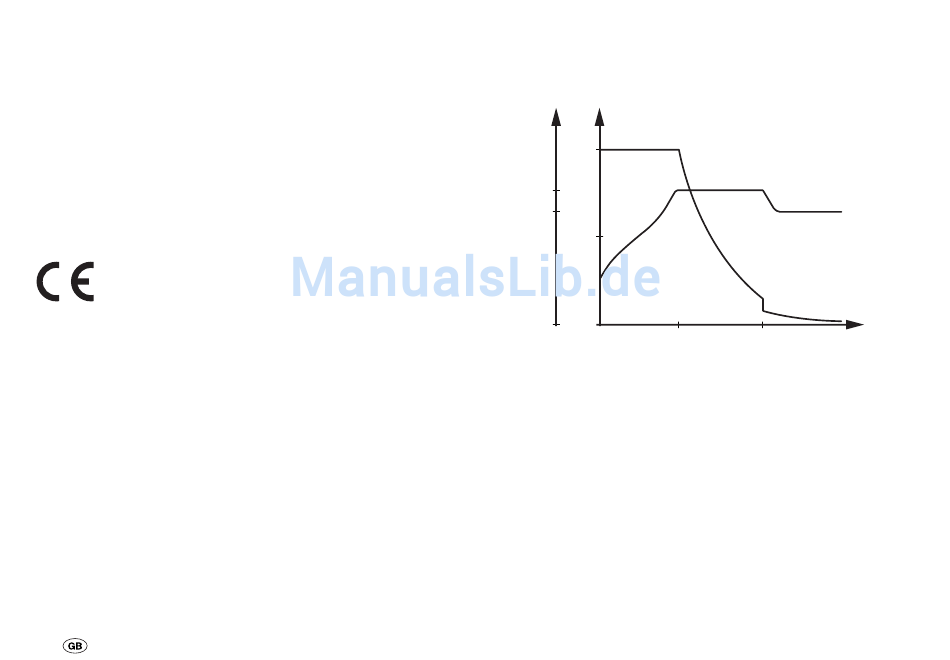

Charging reference line

HL = Main charging phase
NL = Afterloading ph ase
EL = Trickle charging
U[V] I[%]
I
100
14.4
13.8
50
U
0 0
HL
Fig. 2: Charging reference line (basic curve)
The right to effect technical modifications is reserved!
NL E L t[h]
