Dimensions; Troubleshooting - praher Solar Control SC04 Bedienungsanleitung

17

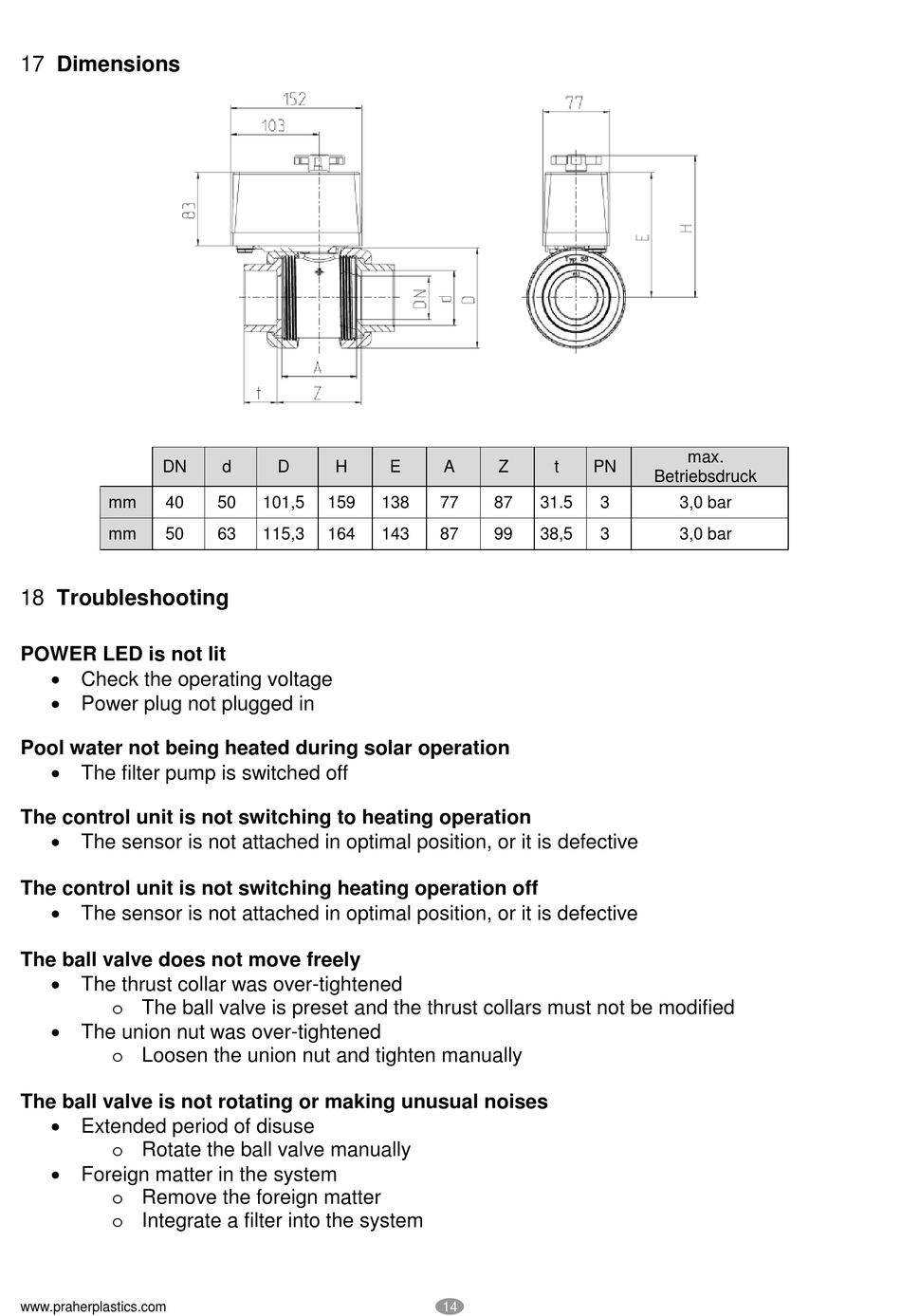

Dimensions

DN
mm 40
mm 50
18

Troubleshooting

POWER LED is not lit
 Check the operating voltage
 Power plug not plugged in
Pool water not being heated during solar operation
 The filter pump is switched off
The control unit is not switching to heating operation
 The sensor is not attached in optimal position, or it is defective
The control unit is not switching heating operation off
 The sensor is not attached in optimal position, or it is defective
The ball valve does not move freely
 The thrust collar was over-tightened
o The ball valve is preset and the thrust collars must not be modified
 The union nut was over-tightened
o Loosen the union nut and tighten manually
The ball valve is not rotating or making unusual noises
 Extended period of disuse
o Rotate the ball valve manually
 Foreign matter in the system
o Remove the foreign matter
o Integrate a filter into the system
www.praherplastics.com
d D H
50 101,5 159 138
63 115,3 164 143
E A Z t
77 87 31.5
87 99 38,5
14
max.
PN
Betriebsdruck
3 3,0 bar
3 3,0 bar
