Installation

The device is delivered in a pluggable configuration and thus does not need to be opened
by the customer. We recommend the use of separate cable ducts for installing the wiring.
They must not be routed together with the motor cables. If you do need to extend the
temperature sensors, unplug the cable, cut the cable at a suitable point and extend
professionally using commercially available terminal distributors up to a maximum length of
30m, using a 1.5mm² cable cross-section. Both temperature sensors are galvanically
isolated from the supply voltage! Although the device is functional in any position, it
should be installed with the actuator not facing down if possible.
10

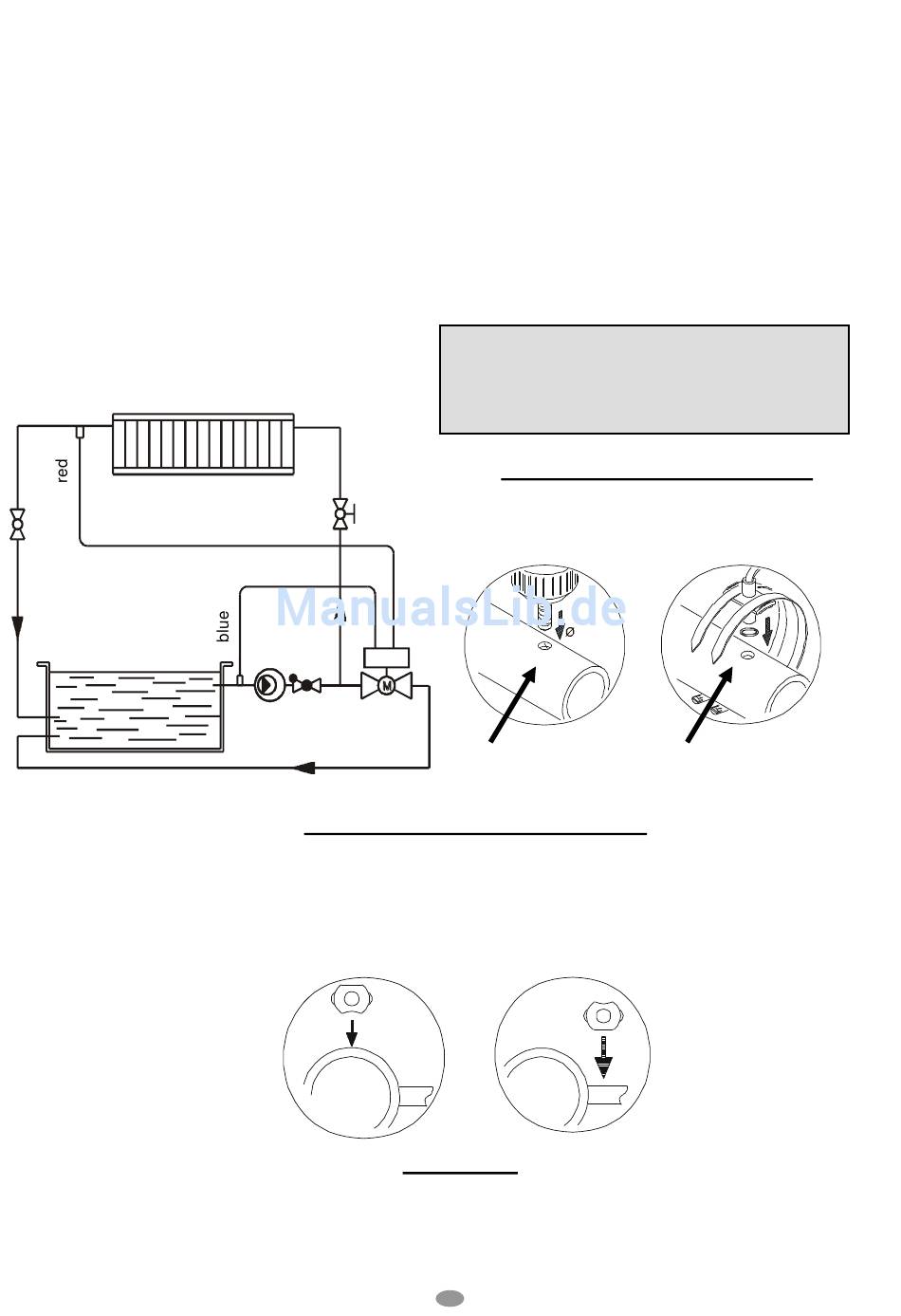

Schematic diagram

Install the collector sensor (red) as close as possible to the collector pipe at the
collector outlet, making sure that the collector sensor is exposed to direct insolation
and not impaired by shadows being cast at too early a stage (e.g., by trees,
buildings). Failure to comply means that the solar energy cannot be used optimally.
Due to the arrangement of the sensors in the system, minor deviations of the preset
www.praherplastics.com
SC04
Installing the collector sensor (red):
temperature compared to the pool temperature can occur
When installing the sensors, make sure
that each sensor is installed as close
as possible to the medium to be
measured (e.g., water)!
Installing the pool sensor (blue):
Install the pool sensor as close to the pool as
To do so, depressurize and drain the pipe
Borehole
CAUTION:
8
possible
system.
10mm
O-ring, sealing
element
