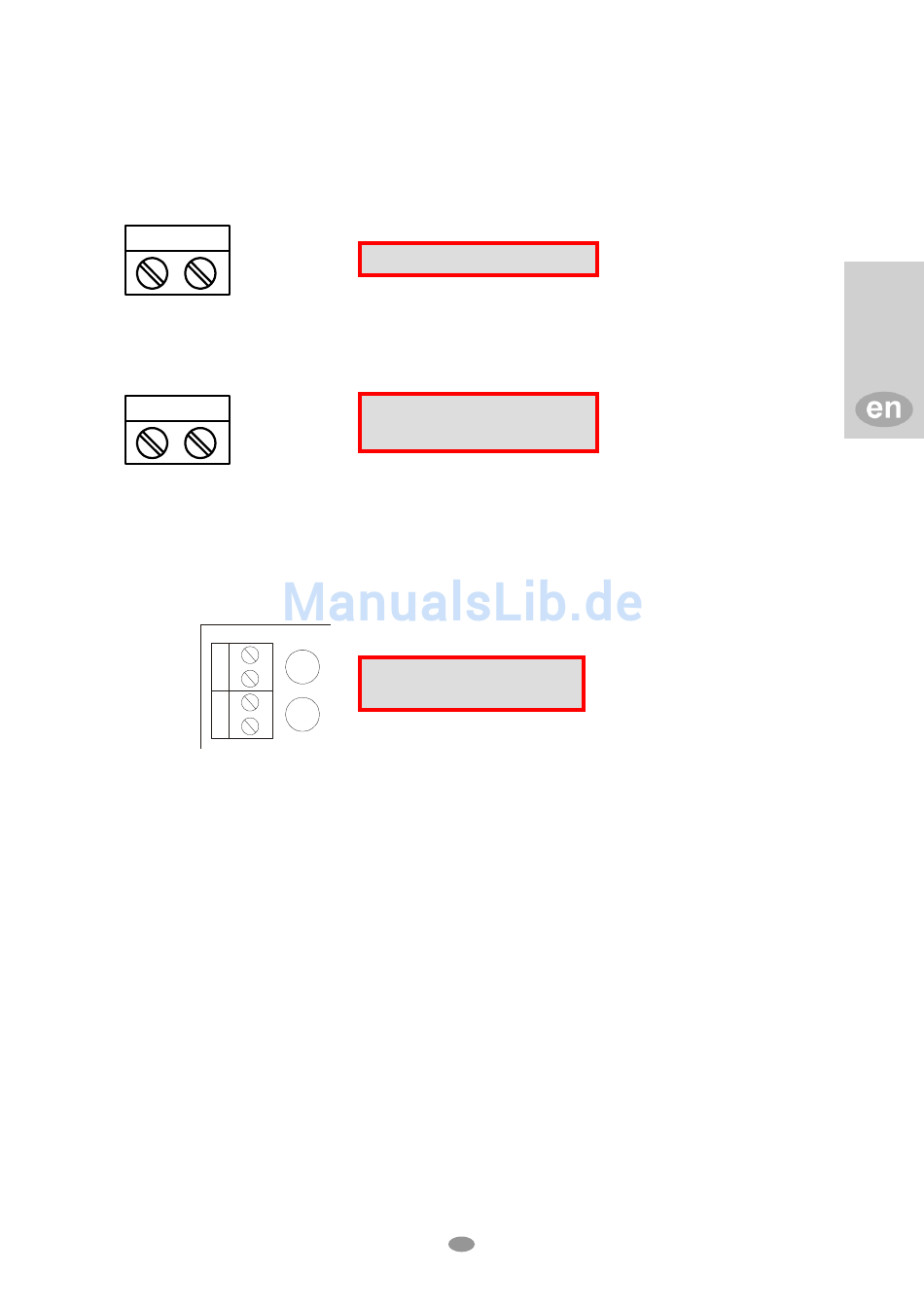

Electrical connection

Supply voltage:
L1 N
Zero potential output:
a
b
Zero potential contact closes in case of " solar operation"!
For controlling solar pumps, releasing external controls,
Filter timer bridges, e.g., CS100, SC300, etc...
Temperature sensors
Sensor blue
pool
Sensor red
solar
14

Technical data

Supply voltages:
Power consumption:
Degree of protection:
Ambient temperature:
Temperature difference
between pool and collector sensor:
Hysteresis pool temperature:
Zero potential output:
100-230V AC 50/60Hz
Zero potential
I max. 300mA/250 VAC
Use only original
Praher sensors.
100-230VAC 50/60Hz
100-230VAC 50/60Hz
max. 5 Watts
IP 54
max. 0°C – 50°C
ΔT approx. 4°C.
1.5°C
I max. 300mA/250 VAC
