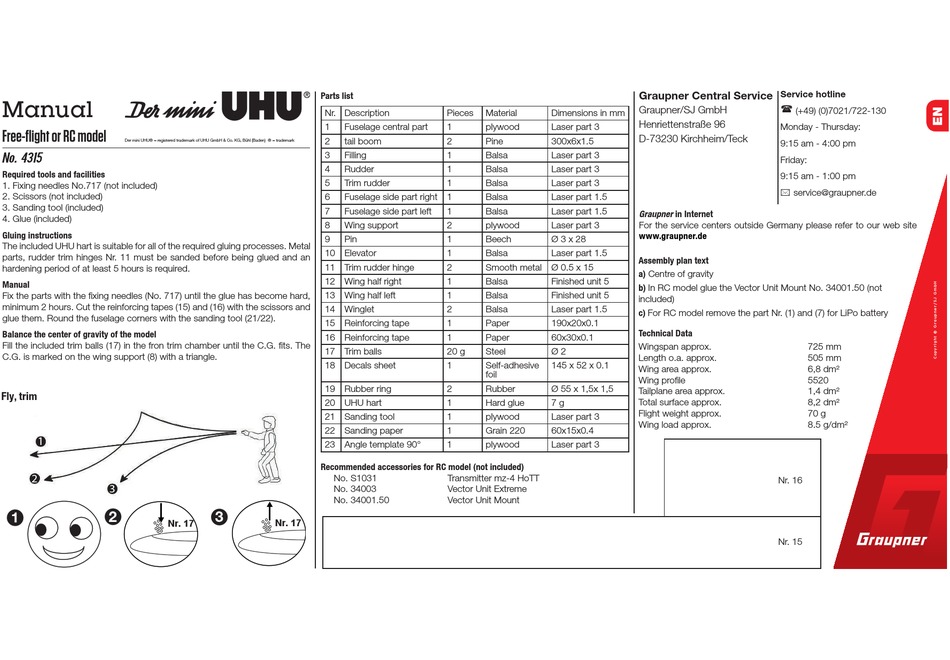

Manual
Free-flight or RC model
Der mini UHU® = registered trademark of UHU GmbH & Co. KG, Bühl (Baden) ® = trademark
No. 4315
Required tools and facilities
1. Fixing needles No.717 (not included)
2. Scissors (not included)
3. Sanding tool (included)
4. Glue (included)
Gluing instructions
The included UHU hart is suitable for all of the required gluing processes. Metal
parts, rudder trim hinges Nr. 11 must be sanded before being glued and an
hardening period of at least 5 hours is required.
Manual
Fix the parts with the fixing needles (No. 717) until the glue has become hard,
minimum 2 hours. Cut the reinforcing tapes (15) and (16) with the scissors and
glue them. Round the fuselage corners with the sanding tool (21/22).
Balance the center of gravity of the model
Fill the included trim balls (17) in the fron trim chamber until the C.G. fits. The
C.G. is marked on the wing support (8) with a triangle.
Fly, trim
1
2
3
2
2
1
Nr. 17
Parts list
Nr. Description
1
Fuselage central part
2
tail boom
3
Filling
4
Rudder
5
Trim rudder
6
Fuselage side part right 1
7
Fuselage side part left
8
Wing support
9
Pin
10 Elevator
11 Trim rudder hinge
12 Wing half right
13 Wing half left
14 Winglet
15 Reinforcing tape
16 Reinforcing tape
17 Trim balls
18 Decals sheet
19 Rubber ring
20 UHU hart
21 Sanding tool
22 Sanding paper
23 Angle template 90°
Recommended accessories for RC model (not included)
No. S1031
No. 34003
No. 34001.50
3 3
Nr. 17
Pieces
Material
Dimensions in mm
1
plywood
Laser part 3
2
Pine
300x6x1.5
1
Balsa
Laser part 3
1
Balsa
Laser part 3
1
Balsa
Laser part 3
Balsa
Laser part 1.5
1
Balsa
Laser part 1.5
2
plywood
Laser part 3
1
Beech
Ø 3 x 28
1
Balsa
Laser part 1.5
2
Smooth metal Ø 0.5 x 15
1
Balsa
Finished unit 5
1
Balsa
Finished unit 5
2
Balsa
Laser part 1.5
1
Paper
190x20x0.1
1
Paper
60x30x0.1
20 g
Steel
Ø 2
1
Self-adhesive
145 x 52 x 0.1
foil
2
Rubber
Ø 55 x 1,5x 1,5
1
Hard glue
7 g
1
plywood
Laser part 3
1
Grain 220
60x15x0.4
1
plywood
Laser part 3
Transmitter mz-4 HoTT
Vector Unit Extreme
Vector Unit Mount
Graupner Central Service
Service hotline
Graupner/SJ GmbH
(+49) (0)7021/722-130
Henriettenstraße 96
Monday - Thursday:
D-73230 Kirchheim/Teck
9:15 am - 4:00 pm
Friday:
9:15 am - 1:00 pm
service@graupner.de
Graupner in Internet
For the service centers outside Germany please refer to our web site
www.graupner.de
Assembly plan text
a) Centre of gravity
b) In RC model glue the Vector Unit Mount No. 34001.50 (not
included)
c) For RC model remove the part Nr. (1) and (7) for LiPo battery
Technical Data
Wingspan approx.
725 mm
Length o.a. approx.
505 mm
Wing area approx.
6,8 dm²
Wing profile
5520
Tailplane area approx.
1,4 dm²
Total surface approx.
8,2 dm²
Flight weight approx.
70 g
Wing load approx.
8.5 g/dm²
Nr. 16
