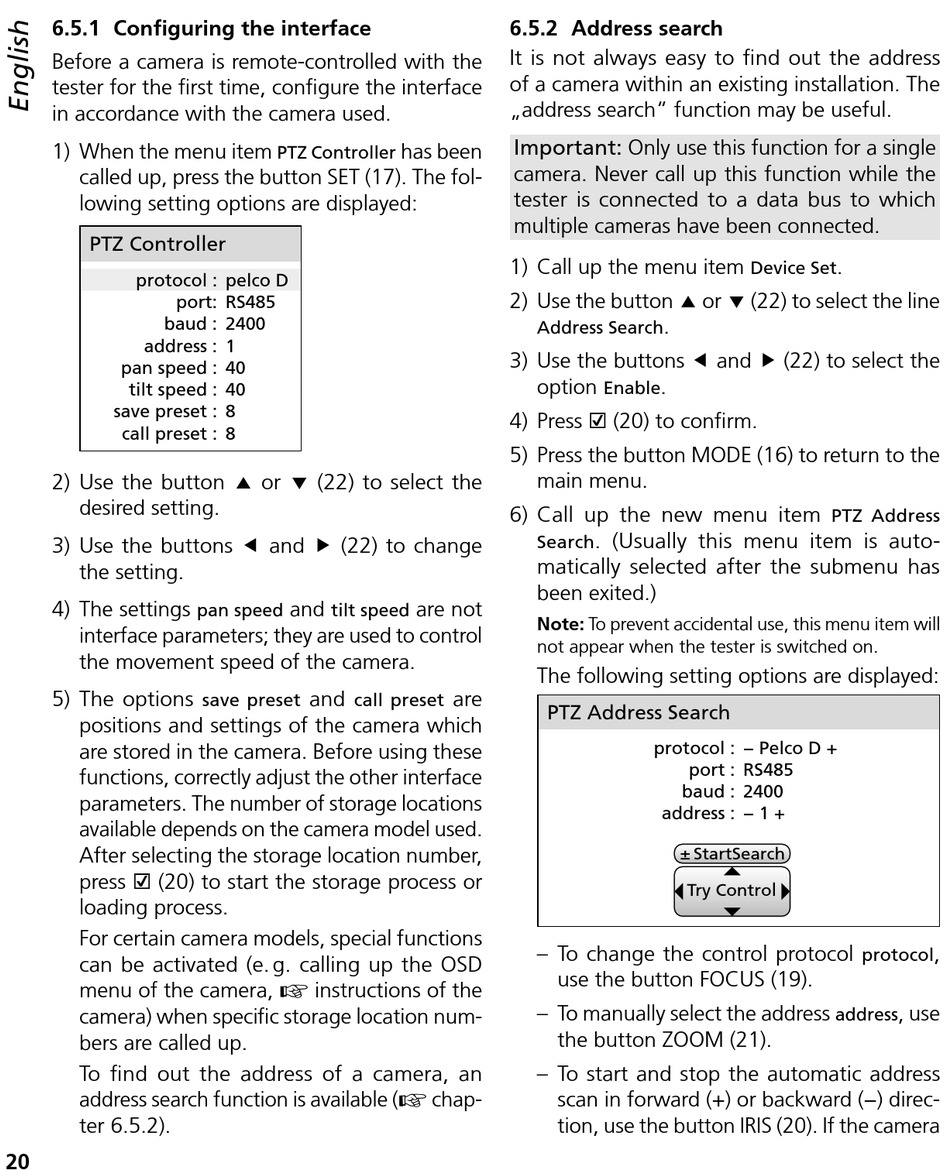

6.5.1 Configuring the interface

Before a camera is remote-controlled with the
tester for the first time, configure the interface
in accordance with the camera used .
1) When the menu item
called up, press the button SET (17) . The fol-
lowing setting options are displayed:
PTZ Controller
protocol : pelco D
port: RS485
baud : 2400
address : 1
pan speed : 40
tilt speed : 40
save preset : 8
call preset : 8
2) Use the button  or  (22) to select the
desired setting .
3) Use the buttons  and  (22) to change
the setting .
4) The settings
interface parameters; they are used to control
the movement speed of the camera .
5) The options
positions and settings of the camera which
are stored in the camera . Before using these
functions, correctly adjust the other interface
parameters . The number of storage locations
available depends on the camera model used .
After selecting the storage location number,
press ☑ (20) to start the storage process or
loading process .
For certain camera models, special functions
can be activated (e . g . calling up the OSD
menu of the camera,
camera) when specific storage location num-
bers are called up .
To find out the address of a camera, an
address search function is available (
ter 6 .5 .2) .
20
PTZ Controller
and
pan speed tilt speed
and
save preset call preset
☞
instructions of the

6.5.2 Address search

It is not always easy to find out the address
of a camera within an existing installation . The
„address search" function may be useful .
Important: Only use this function for a single
has been
camera . Never call up this function while the
tester is connected to a data bus to which
multiple cameras have been connected .
1) Call up the menu item
2) Use the button  or  (22) to select the line
Address Search
3) Use the buttons  and  (22) to select the
option
4) Press ☑ (20) to confirm .
5) Press the button MODE (16) to return to the
main menu .
6) Call up the new menu item
Search
matically selected after the submenu has
been exited .)
are not
Note: To prevent accidental use, this menu item will
not appear when the tester is switched on .
The following setting options are displayed:
are
PTZ Address Search
– To change the control protocol
use the button FOCUS (19) .
– To manually select the address
the button ZOOM (21) .
– To start and stop the automatic address
☞
chap- scan in forward (+) or backward (−) direc-
tion, use the button IRIS (20) . If the camera
Device Set
.
.
Enable
. (Usually this menu item is auto-
protocol : − Pelco D +
port : RS485
baud : 2400
address : − 1 +
± StartSearch
Try Control
.
PTZ Address
,
protocol
, use
address
