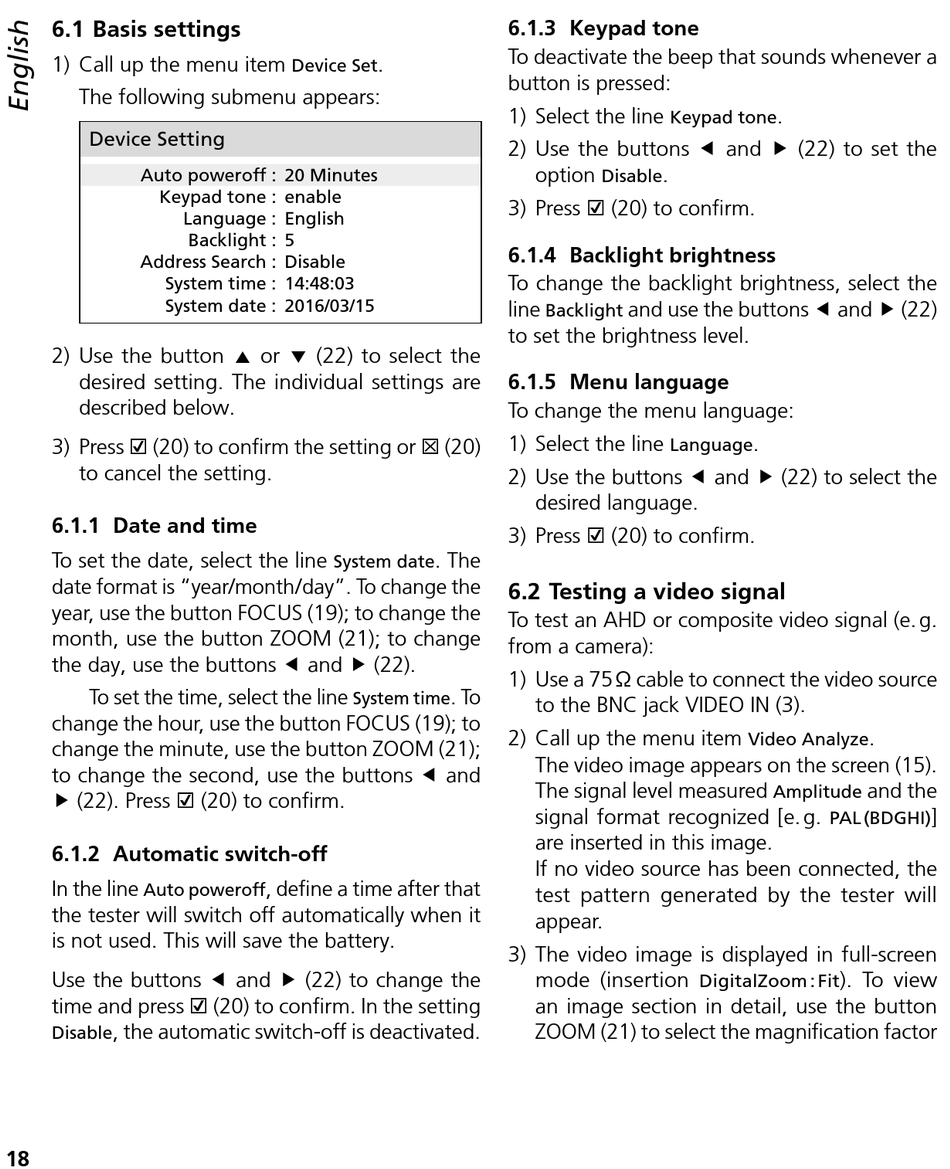

6.1 Basis settings
1) Call up the menu item
The following submenu appears:
Device Setting
Auto poweroff : 20 Minutes
Keypad tone : enable
Language : English
Address Search : Disable
System time : 14:48:03
System date : 2016/03/15
2) Use the button  or  (22) to select the
desired setting . The individual settings are
described below .
3) Press ☑ (20) to confirm the setting or ☒ (20)
to cancel the setting .

6.1.1 Date and time

To set the date, select the line
date format is "year/month / day" . To change the
year, use the button FOCUS (19); to change the
month, use the button ZOOM (21); to change
the day, use the buttons  and  (22) .
To set the time, select the line
change the hour, use the button FOCUS (19); to
change the minute, use the button ZOOM (21);
to change the second, use the buttons  and
 (22) . Press ☑ (20) to confirm .

6.1.2 Automatic switch-off

In the line
Auto poweroff
the tester will switch off automatically when it
is not used . This will save the battery .
Use the buttons  and  (22) to change the
time and press ☑ (20) to confirm . In the setting
, the automatic switch-off is deactivated .
Disable
18
Device Set
Backlight : 5
System date
System time
, define a time after that

6.1.3 Keypad tone

To deactivate the beep that sounds whenever a
.
button is pressed:
1) Select the line
2) Use the buttons  and  (22) to set the
option
3) Press ☑ (20) to confirm .

6.1.4 Backlight brightness

To change the backlight brightness, select the
line
Backlight
to set the brightness level .

6.1.5 Menu language

To change the menu language:
1) Select the line
2) Use the buttons  and  (22) to select the
desired language .
3) Press ☑ (20) to confirm .
. The
6.2 Testing a video signal
To test an AHD or composite video signal (e . g .
from a camera):
1) Use a 75 Ω cable to connect the video source
. To
to the BNC jack VIDEO IN (3) .
2) Call up the menu item
The video image appears on the screen (15) .
The signal level measured
signal format recognized [e . g .
are inserted in this image .
If no video source has been connected, the
test pattern generated by the tester will
appear .
3) The video image is displayed in full-screen
mode (insertion
an image section in detail, use the button
ZOOM (21) to select the magnification factor
.
Keypad tone
.
Disable
and use the buttons  and  (22)
.
Language
Video Analyze
Amplitude
DigitalZoom : Fit
.
and the
]
PAL (BDGHI)
) . To view
