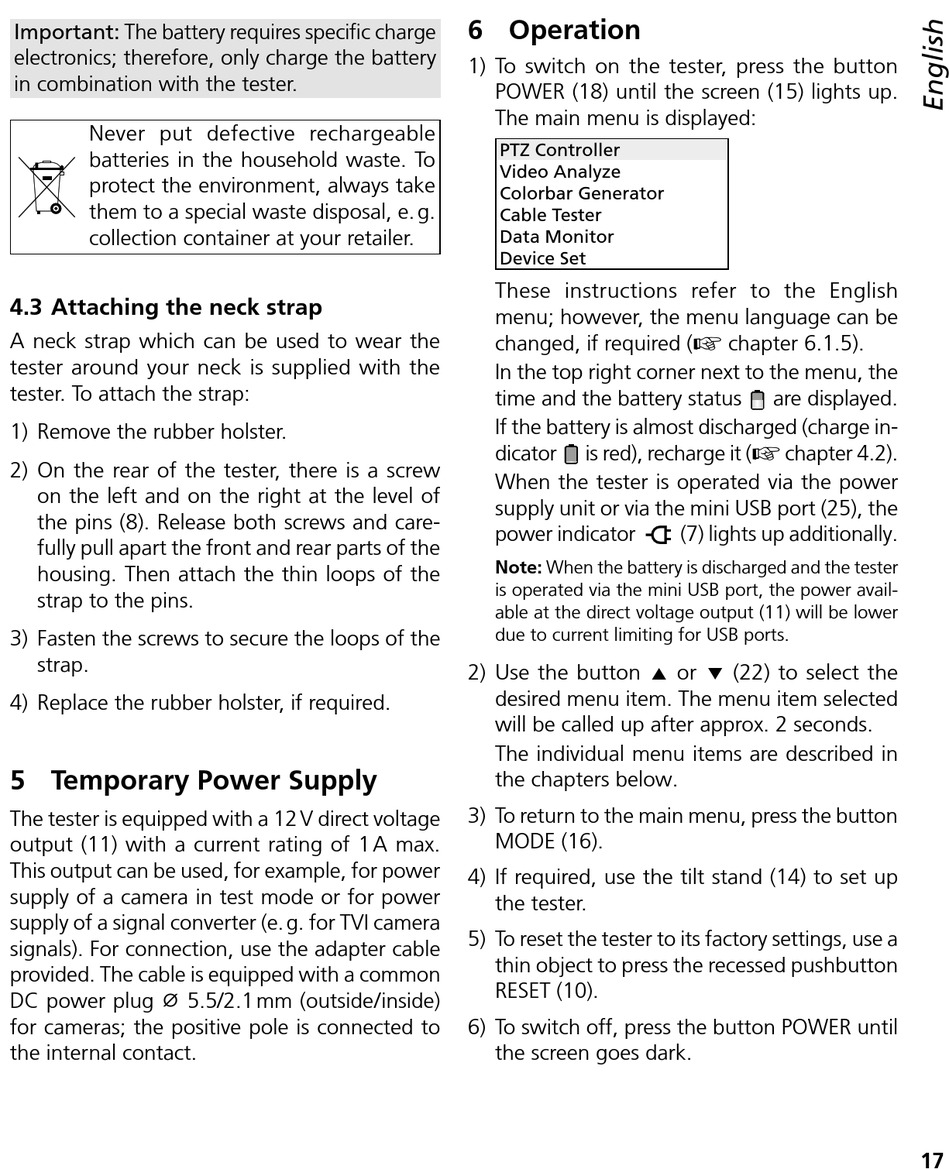

Important: The battery requires specific charge
electronics; therefore, only charge the battery
in combination with the tester .
Never put defective rechargeable
batteries in the household waste . To
protect the environment, always take
them to a special waste disposal, e . g .
collection container at your retailer .
4.3 Attaching the neck strap
A neck strap which can be used to wear the
tester around your neck is supplied with the
tester . To attach the strap:
1) Remove the rubber holster .
2) On the rear of the tester, there is a screw
on the left and on the right at the level of
the pins (8) . Release both screws and care-
fully pull apart the front and rear parts of the
housing . Then attach the thin loops of the
strap to the pins .
3) Fasten the screws to secure the loops of the
strap .
4) Replace the rubber holster, if required .

5 Temporary Power Supply

The tester is equipped with a 12 V direct voltage
output (11) with a current rating of 1 A max .
This output can be used, for example, for power
supply of a camera in test mode or for power
supply of a signal converter (e . g . for TVI camera
signals) . For connection, use the adapter cable
provided . The cable is equipped with a common
DC power plug ⌀ 5 .5/2 .1 mm (outside / inside)
for cameras; the positive pole is connected to
the internal contact .

6 Operation

1) To switch on the tester, press the button
POWER (18) until the screen (15) lights up .
The main menu is displayed:
PTZ Controller
Video Analyze
Colorbar Generator
Cable Tester
Data Monitor
Device Set
These instructions refer to the English
menu; however, the menu language can be
changed, if required (
In the top right corner next to the menu, the
time and the battery status
If the battery is almost discharged (charge in-
dicator is red), recharge it (
When the tester is operated via the power
supply unit or via the mini USB port (25), the
power indicator
Note: When the battery is discharged and the tester
is operated via the mini USB port, the power avail-
able at the direct voltage output (11) will be lower
due to current limiting for USB ports .
2) Use the button  or  (22) to select the
desired menu item . The menu item selected
will be called up after approx . 2 seconds .
The individual menu items are described in
the chapters below .
3) To return to the main menu, press the button
MODE (16) .
4) If required, use the tilt stand (14) to set up
the tester .
5) To reset the tester to its factory settings, use a
thin object to press the recessed pushbutton
RESET (10) .
6) To switch off, press the button POWER until
the screen goes dark .
☞
chapter 6 .1 .5) .
are displayed .
☞
chapter 4 .2) .
(7) lights up additionally .
17
